Summary of Contents for Giada DM5

  • Page 2 The copyright of this manual belongs to Shenzhen JEHE Technology Development Co., Ltd. (Giada, JEHE’s global brand) and all rights are reserved. The company reserves the right to change this manual at any time without notification. Specifications here are for reference only, please take the real product as standard.

  • Page 3: Table Of Contents

    Table of Contents 1. Product Introduction ..................3 2. Interface Description and Hardware Specifications ........3 2.1 Interface Description ................... 3 2.2 Hardware Specifications ................4 3. Accessories Installation Steps ................6 3.1 Memory Installation ..................7 3.2 WiFi/3G/4G Installation ................8 3.3 MSATA Installation ..................
  • Page 4 4.2.6 AMD CBS Settings ................20 4.2.7 AMD PBS Settings ................26 4.2.8 VLAN Configuration ................. 28 4.2.9 MAC: IPV4 Network Configuration ..........30 4.2.10 MAC: IPV6 Network Configuration ..........30 4.3 Security Setup ..................... 31 4.4 Boot Menu ....................32 4.5 Save &...

  • Page 5: Product Introduction

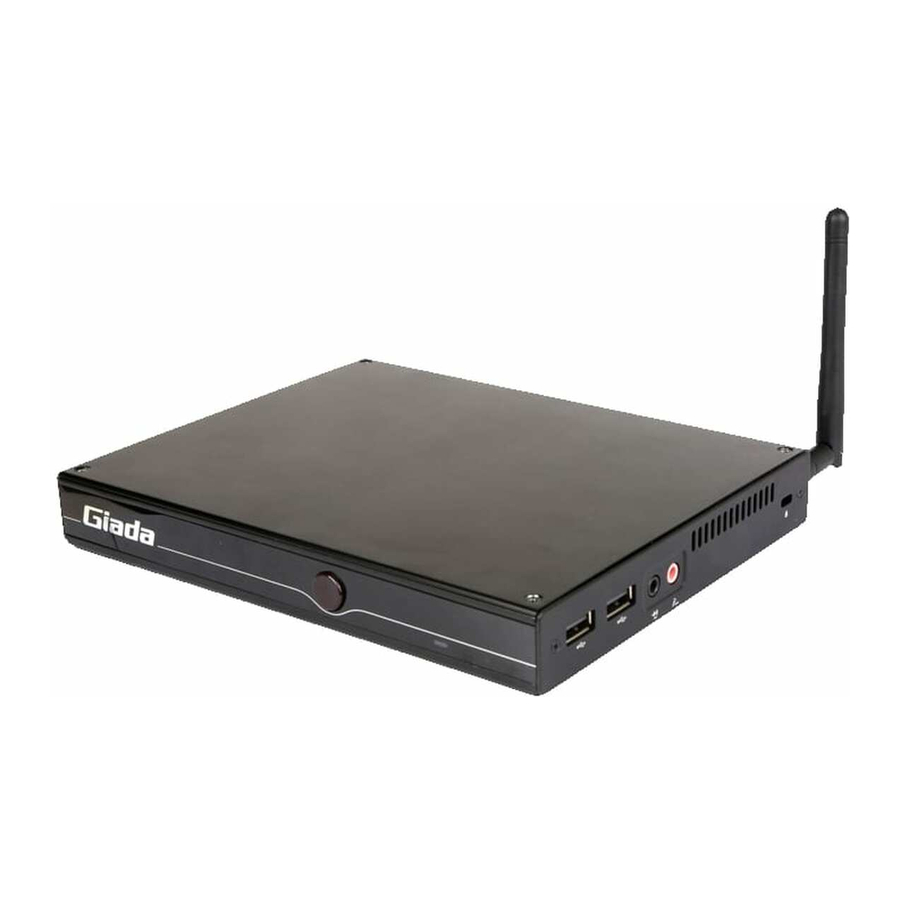

    1. Product Introduction Based on AMD Ryzen platform, Giada DM5 adopts AMD middle range R1305G processor. With three HDMI2.0 display outputs, it supports 4K resolution. The player is suitable to be applied in various digital signage applications. 2. Interface Description and Hardware Specifications 2.1 Interface Description...

  • Page 6: Hardware Specifications

    Left I/O Port Right I/O port 2.2 Hardware Specifications DM5-R1305G40H0G-GIA AMD Ryzen R1305G Processor Frequency 1.5GHz (up to 2.8GHz), 2Cores / 4Thread BIOS AMI Source Code Chipset Type DDR4 Memory Socket 2 x SO-DIMM Max Capacity 32 GB Radeon Vega 3 GPU...
  • Page 7 Controller Realtek RTL8111H Gigabit Ethernet Network Interface 1 x RJ45 2 x USB 3.1, 2 x USB 2.0 Serial Port 1 x RS232 Audio 1 x MIC-IN, 1 x AUDIO-OUT I/O Interface 1 x SIM Slot Mini PCIe #1 1 x Full-size Mini-PCIe for mSATA Mini PCIe #2 1 x Full-size Mini-PCIe for WiFi/BT/3G/4G mSATA...

  • Page 8: Accessories Installation Steps

    3. Accessories Installation Steps For safety reasons, please ensure that the power cord is disconnected before opening the case. How to open the top cover and bottom cover Unscrew the four screws and remove the top cover. (SO-DIMM #1 and 2.5’’ SATA slot are on top side) Unscrew the four screws, push the bottom cover and remove it.

  • Page 9: Memory Installation

    3.1 Memory Installation This product only supports DDR4 SO-DIMM memory modules. 1. Locate the SO-DIMM slot on the board. 2. Gently insert the module into the slot in a 45-degree angle. 3. Carefully push down the memory module until it snaps into the locking mechanism. - 7 -...

  • Page 10: Wifi/3G/4G Installation

    3.2 WiFi/3G/4G Installation  WIFI Installation 1. Tighten the WIFI module and WIFI module bracket with screws. 2. Plug the WIFI module into the mini PCIE slot. 3. Secure the module to the carrier by tightening up the screw. Install the antenna. 4.

  • Page 11: Sata Installation

    3.4 2.5’’ SATA Installation 1. Plug 2.5’’ SATA into the slot. 2. Tighten up the two screws from another (bottom) side. - 9 -...

  • Page 12: Sim Card Installation

    3.5 SIM Card Installation This product supports standard SIM card with the size of 25mm × 15mm. 1. [Open] the SIM card holder and pull it up. 2. Insert the SIM card. 3. [Lock] the card holder. - 10 -...

  • Page 13: Bios Setup

    The descriptions relating to BIOS setup in this Manual is for reference only since the BIOS version of the product might be upgraded. Giada provides no guarantee that all the contents in this Manual are consistent with the information you acquired.
  • Page 14 B. Function Keys definitions Hot Key Description ↑ (Up key) Move to the previous item ↓ (Down key) Move to the next item ← (Left key) Move to the left item → (Right key) Move to the right item Exit the current interface Page Up Change the setup state, or add the values Page Down...

  • Page 15: Main (Standard Cmos Setup)

    Fig 1 1) Main (standard CMOS setup) This item is used for setting the date and time. 2) Advanced (advanced BIOS setup) This item is used for setting the advanced functions provided by BIOS, such as specifications of PCIe facilities, CPU, HDD, etc.
  • Page 16 4.1 Main (Standard CMOS setting) 1) System time (hh:mm:ss) Use this item to set the time for the computer, with the format as “HH / MM / SS”. 2) System date (mm:dd:yy) Use this item to set the date for the computer, with the format as “week, MM / DD / YY”. - 14 -...

  • Page 17: Advanced (Advanced Bios Setup)

    4.2 Advanced (Advanced BIOS setup) 4.2.1 ACPI Setting - 15 -...

  • Page 18: Power Configuration

    ACPI Options Description Enable ACPI Auto Enable or Disable BIOS ACPI AUTO Configuration Configuration Enable Hibernation Enable or Disabled Hibernation You can use the ACPI Sleep state option to control system hibernation ACPI Sleep state  Suspend Disabled: Disable system Suspend. S3 (Suspend to RAM): Enable S3(Suspend to RAM) ...

  • Page 19: Cpu Configuration

    OEM Menu Functions Description Enable or disable System wake on alarm event. Select FixedTime, system will wake on the hr::min::sec Wake system by RTC specified. Select DynamicTime, System will wake on the current time + Increase minute(s). JEHE Active Hardware Control (JAHC) management system includes both hardware Micro Control Unit (MCU) and software (JAHC Technology JAHC Enabled...

  • Page 20: Cms Configuration

    The menu Description CPU Configuration Enable/Disable the generation of APCI _PPC,_PSS and PSS Support _PCT Objects PPC Adjustment The PPC Adjustment is PState by default. NX Mode Enable/disable No-execute page protection Function SVM Mode Enabled/disable CPU virtualization Node 0 information View Memory Information related to node 0.
  • Page 21 CSM16 Module Version The Current CMS Version.  Upon Request. (This option is set by default) GateA20 Active  Always. Force BIOS. (This option is set by default)  Option ROM Messages  Keep Current.  Immediate (This option is set by default) INT19 Trap Response ...

  • Page 22: Network State Configuration

    4.2.5 Network State Configuration You can enable or disable IPV4 PXE and IPV6 PXE Boot function via Network Stack. 4.2.6 AMD CBS Settings - 20 -...
  • Page 23 Options Description AMD CBS NBIO Common Options NBIO Common Options FCH Common Options FCH Common Options 4.2.6.1 NBIO Common Options Options Description NBIO Common Options GFX Configuration The user can set this item as enable, forces and Auto. AUTO: use default fan controller settings Fan Control Manual: user can set customized fan controller settings.
  • Page 24 4.2.6.1.1 GFX Configuration Options Description GFX Configuration Enabled Integrate Graphics controller.  Disabled. Integrated Graphics Controller  Forces.  Auto. If requested UMA frame buffer size can’t be fit under 4GB or the system has enough available memory above 4GB, this UMA Above 4G option may be set to TRUE to allow UMA frame buffer size to be allocated successfully.
  • Page 25 4.2.6.1.2 Fan Control Fan Control Description  Manual. Fan Control  Auto. Fan Control is auto by default. Low Temperature Low Temperature Medium Temperature Medium Temperature High Temperature High Temperature Critical Temperature Critical Temperature Low PWM (0-100) Low PWM Medium PWM (0-100) Medium PWM High PWM (0-100) High PWM...
  • Page 26 4.2.6.2 FCH Common Option - 24 -...
  • Page 27 FCH Common Options Description SATA Configuration Options SATA Controller.  Disabled. SATA Controller  Enabled: The SATA controller is enabled by default. Ac Power Loss Options Specify what state to go to when power is re-applied after a power failure ...

  • Page 28: Amd Pbs Settings

    FCH Common Options Description  Disabled. Uart 1 Legacy Options  COM1 0x3F8. 4.2.7 AMD PBS Settings - 26 -...
  • Page 29 AMD PBS Options Description AMD Firmware Version  Int Graphics (IGD). This item is enabled by default. Select IGD used by the internal graphics device. Primary Video Adapter  Ext Graphics (PEG). Select PEG used by the extend graphics device. - 27 -...

  • Page 30: Vlan Configuration

    4.2.8 VLAN Configuration - 28 -...
  • Page 31 Options Description Trusted Computing TPM20 Device Found Firmware Version: It shows the information of TPM device. Vendor: Disable or Enable the SHA-1 PCR Bank. The option is enabled SHA-1 PCR Bank by default. Disable or Enable the SHA256 PCR Bank. The option is SHA256 PCR Bank enabled by default.

  • Page 32: Mac: Ipv4 Network Configuration

    4.2.9 MAC: IPV4 Network Configuration Configuration IPV4 network parameters. 4.2.10 MAC: IPV6 Network Configuration - 30 -...

  • Page 33: Security Setup

    Configuration IPV6 network parameters. 4.3 Security Setup (set the administrator/user password) If this function is selected, the following information will appear: Enter New Password hhhhhh Then enter a password which is no more than eight characters and press <Enter>. BIOS will require to enter the password again.

  • Page 34: Boot Menu

    4.4. Boot Menu Boot Item Description Boot Configuration This item is use to set the wait time of entering the operation system. During the BIOS post, if user doesn't press the keyboard, Setup Prompt Timeout it won't respond unless you reboot the BIOS. The Setup Prompt Timeout is 3s by default.
  • Page 35 Boot Item Description Boot Option #2 The second boot device. Boot Option #3 The third boot device. Boot Option #4 The fourth boot device. Boot Option #5 The fifth boot device. Boot Option #6 The sixth boot device. Boot Option #7 The seventh boot device.

  • Page 36: Save & Exit

    4.5 Save & Exit Save Exit Item Description Save Options Save Changes and Reset Save all changes and exit Discard Changes and Reset Give up the settings and exit. Restore Defaults Recover it to default. Boot Override Whole Boot devices - 34 -...

  • Page 37: Jahc Introduction

    5. JAHC Introduction JEHE Active Hardware Control (JAHC) management system includes both hardware Micro Control Unit (MCU) and software (JAHC Technology Manager). It can support following functions: 1. Automatically boot up when power on. It is controlled by the Micro Control Unit (MCU) chip. 2.
  • Page 38 b. Select Advanced- > Power Configuration- > JAHC Enable- > Enabled. c. Press ‘F10’ to save change & exit after select “JAHC enabled” option. - 36 -...

  • Page 39: Jahc Software

    Supported operation system: Windows 10 64bit, Linux 64bit. How to install JAHC software: Please download the JAHC.EXE from Giada website: www.giadatech.com, then follow up below steps: Double-click the JAHC.EXE file, the setup wizard will pop up, select destination location and click [Next] button to continue the installation.
  • Page 40 b. Click [Next] button to continue the installation. Select [Create a desktop shortcut] and click [Next] button. - 38 -...
  • Page 41 d. Click [Install] button to continue the installation. - 39 -...

  • Page 42: Startup And Shutdown Time Setup

    Click [Finish] button to finish the installation. You can select [Launch JAHC] to run the software automatically after finishing the installation. Notice: The JAHC will be added into boot item when it is installed. It will start up when system boot up. 5.2.3 Startup &...
  • Page 43 One week as a circle, maximum 3 schedules per day. Select each schedule to set up the resume time and shutdown time. Click [Confirm] button to launch the schedule. After finishing the setup, the menu window will notice the resume time and shutdown time. Caution: If the interval from shutdown time to next resume time is less than 3 minutes, the system will not shut down Click [Cancel] button to restore the time settings and cancel the shutdown status.

  • Page 44: Watchdog Api And Instruction

    You can click [Delay] button and set up the time to delay the shutdown or click [Cancel] button to cancel the shutdown. 5.3 Watchdog API and instruction Please contact Giada FAE (email:support@giadatech.com) for watchdog API software and instruction. - 42 -...
  • Page 45 - 43 -...
