Giada RN28 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
- 1 -

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RN28 and is the answer not in the manual?

Questions and answers

Related Manuals for Giada RN28

Summary of Contents for Giada RN28

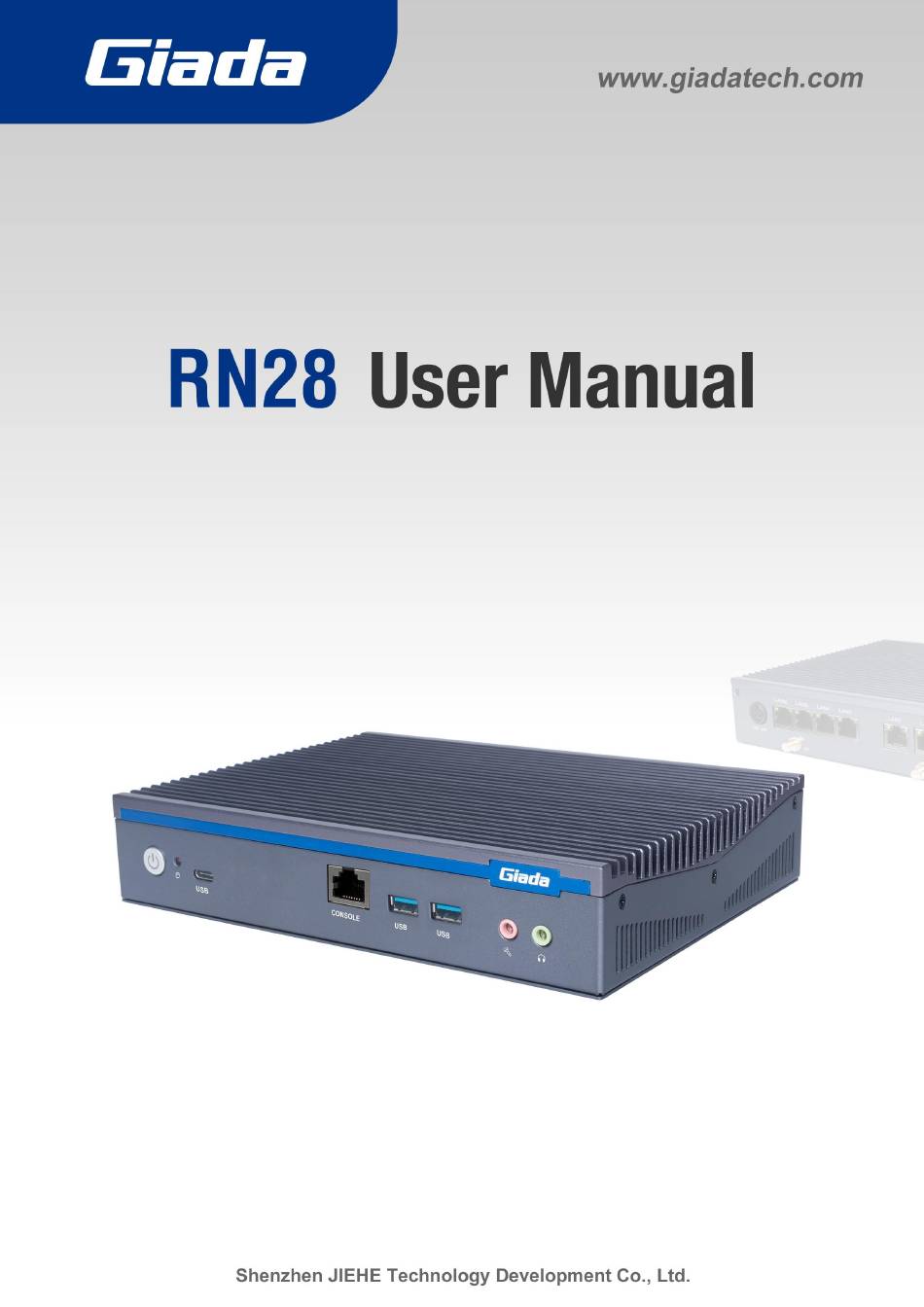

  • Page 1 - 1 -...
  • Page 2 The copyright of this manual belongs to Shenzhen JIEHE Technology Development Co., Ltd. (Giada, JIEHE’s global brand) and all rights are reserved. The company reserves the right to change this manual at any time without notification. Specifications here are for reference only, please take the real product as standard.

  • Page 3: Table Of Contents

    Table of Contents 1. Product Introduction ..................3 2. Interface Description and Hardware Specifications ........3 2.1 Interface Description ..................3 2.2 Hardware Specifications ................4 3. Accessories Installation Steps ................5 3.1 Memory Installation ..................5 3.2 SSD(M.2) Installation..................6 3.3 WIFI(M.2) Installation ...................
  • Page 4 4.2.4 Trusted Computing ................16 4.2.5 System Devices Configuration ............18 4.3 Security ....................19 4.4 Boot Menu ....................21 4.5 Save & Exit ....................23 5. JAHC Introduction ..................24 5.1 Auto Power on .................... 24 5.2 JAHC Software ................... 26 5.2.1 JAHC Software Functions ..............

  • Page 5: Product Introduction

    1. Product Introduction Based on Intel Alder Lake-N platform, Giada RN28 is a fanless model featured with Intel N100 ® ® processors. With one HDMI that supports max 4K resolution. And also six Ethernet interfaces, four of which can support POE function. The player is suitable to be applied in gateway, surveillance etc.

  • Page 6: Hardware Specifications

    2.2 Hardware Specifications RN28 Intel Processor N100 ® Turbo Frequency 3.40 GHz Processor BIOS AMI Source Code Chipset Type DDR4-3200MHz Memory Socket 1 x SO-DIMM Max Capacity 16 GB Intel ® UHD Graphics Graphics Graphic Engine DirectX 12.1, OpenGL 4.6, OpenCL 3.0 HDMI 2.0...

  • Page 7: Accessories Installation Steps

    3. Accessories Installation Steps For safety reasons, please ensure that the power cord is disconnected before opening the case. How to open the top cover and bottom cover Unscrew the four screws and then remove the bottom cover. SO-DIMM, M.2 for WiFi, M.2 for SSD are at the right side.

  • Page 8: Ssd(M.2) Installation

    3.2 SSD (M.2) Installation 1. Plug the M-Key M.2 (2280) SSD (PCIe protocol) into the appropriate slot. 2. Secure the module to the carrier by tightening up the screw. 3.3 WIFI (M.2) Installation 1. Plug the E-Key (2230) WIFI module into the appropriate slot. 2.

  • Page 9: Sataiii For 2.5'' Hdd Installation

    3.4 SATAIII for 2.5'' HDD Installation 1. Locate the two small holes on the side of the HDD, corresponding to the two protruding points on the HDD bracket on the motherboard. 2. Connect the hard drive to the connection interface on the motherboard. 3.

  • Page 10: Bios Setup

    The descriptions relating to BIOS setup in this Manual is for reference only since the BIOS version of the product might be upgraded. Giada provides no guarantee that all the contents in this Manual are consistent with the information you acquired.

  • Page 11: State Of Bios Setup

    A. State of BIOS Setup When the computer is started up, BIOS will run the self-detection (Post) program. This program includes series of diagnosis fixed in BIOS. When this program is executed, the following information will appear if any error is found: Press [F1] to Run General help Press [F2] to Load previous values and continue To enter BIOS, you can press F2;...
  • Page 12 Fig 1 1) Main (standard CMOS setup) This item is used for setting the date and time. 2) Advanced (advanced BIOS setup) This item is used for setting the advanced functions provided by BIOS, such as specifications of PCIe facilities, CPU, HDD, etc.

  • Page 13: Main (Standard Cmos Setting)

    4.1 Main (Standard CMOS setting) 1) System time (hh:mm:ss) Use this item to set the time for the computer, with the format as “HH / MM / SS”. 2) System date (mm:dd:yy) Use this item to set the date for the computer, with the format as “week, MM / DD / YY”. - 11 -...

  • Page 14: Advanced Bios Setup

    4.2 Advanced (Advanced BIOS setup) - 12 -...

  • Page 15: Acpi Settings

    4.2.1 ACPI Settings ACPI Menu Description Select the highest ACPI sleep state the system will enter  ACPI Sleep State when the SUSPEND button is pressed. State After G3 means after restore power supply.  S5 State (Default): If set it as S5 State, it means the system will ...
  • Page 16 CPU Configuration Menu Description Select the performance state that the BIOS will set starting Boot performance mode from reset vector. Intel Virtualization Technology is enabled by default. User can ® Intel Virtualization Technology ® enable and disable the Intel Virtualization Technology function. Intel SpeedStep (TM) ®...

  • Page 17: Wake Configuration

    4.2.3 Wake Configuration - 15 -...

  • Page 18: Trusted Computing

    WAKE Configuration Options Description WAKE Configuration Wake On LAN Function. Wake Up On RTL LAN Disabled: The WOL is disabled by default.  Enabled.  Enabled/Disabled Wake Up by USB KB/Mouse from S3  Wakeup By USB KB/MS Status. Disabled: By default, the functions is disabled. ...
  • Page 19 TPM20 Device Found Description Firmware Version TPM FW version is 7.63  Vendor The vendor is IFX  Disabled  Security Device Support Enabled. This item is enabled by default.  Disabled. This item is Enabled by default  SHA256 PCR Bank Enabled.

  • Page 20: System Devices Configuration

    4.2.5 System Devices Configuration - 18 -...

  • Page 21: Security

    Menu Description The SATA controller is enabled by default. SATA Controller(s) Enabled  Disabled.  SATA Mode Selection Determines how SATA controller(s) operate.  Control Detection of the HD-Audio device.  HD Audio HAD will be unconditionally disabled when disabled. ...
  • Page 22 If this function is selected, the following information will appear: Enter New Password hhhhhh Then enter a password which is no more than eight characters and press <Enter>. BIOS will require to enter the password again. Once you enter it again, BIOS will save the set password. Once the password item is enabled, you will be required to enter the password every time before the system entering to the setup program of BIOS.

  • Page 23: Boot Menu

    Boot Sector Virus Protection. This item is used for setting the alarm function in case of virus attack in IDE disk sector. If this item is set as Enable and some program writes information in the sector, BIOS will display alarm information on the screen and buzz. Security Item Description System Mode Configuration...
  • Page 24 Boot Item Description Boot Configuration This item is use to set the waiting time of entering the operation system. During the BIOS post, if user doesn't press the Setup Prompt Timeout keyboard, it won't respond unless you reboot the BIOS. The Setup Prompt Timeout is 3s by default.

  • Page 25: Save & Exit

    4.5 Save & Exit Save Exit Item Description Save Options Save Changes and Reset Save all changes and exit Discard Changes and Exit Give up the settings and exit. Restore Defaults Recover it to default. Boot Override Whole Boot devices - 23 -...

  • Page 26: Jahc Introduction

    5. JAHC Introduction JIEHE Active Hardware Control (JAHC) management system includes both hardware Micro Control Unit (MCU) and software (JAHC Technology Manager). It can support following functions: 1. Automatically boot up when power on. It is controlled by the Micro Control Unit (MCU) chip. 2.
  • Page 27 FIG (1) c. Press ‘F10’ to save change & exit after select “JAHC enabled” option. - 25 -...

  • Page 28: Jahc Software

    Supported operation system: Windows 10 64bit, Linux 64bit. How to install JAHC software: Please download the JAHC.EXE from Giada website: www.giadatech.com, then follow up below steps: Double-click the JAHC.EXE file, the setup wizard will pop up, select destination location and click [Next] button to continue the installation.
  • Page 29 b. Click [Next] button to continue the installation. Select [Create a desktop shortcut] and click [Next] button. - 27 -...
  • Page 30 d. Click [Install] button to continue the installation. - 28 -...

  • Page 31: Startup And Shutdown Time Setup

    Click [Finish] button to finish the installation. You can select [Launch JAHC] to run the software automatically after finishing the installation. Notice: The JAHC will be added into boot item when it is installed. It will start up when system boot up. 5.2.3 Startup &...
  • Page 32 One week as a circle, maximum 3 schedules per day. Select each schedule to set up the resume time and shutdown time. Click [Confirm] button to launch the schedule. After finishing the setup, the menu window will notice the resume time and shutdown time. Caution: If the interval from shutdown time to next resume time is less than 3 minutes, the system will not shut down Click [Cancel] button to restore the time settings and cancel the shutdown status.

  • Page 33: Watchdog Api And Instruction

    You can click [Delay] button and set up the time to delay the shutdown or click [Cancel] button to cancel the shutdown. 5.3 Watchdog API and instruction Please contact Giada FAE (email:support@giadatech.com) for watchdog API software and instruction. - 31 -...
  • Page 34 - 32 -...
