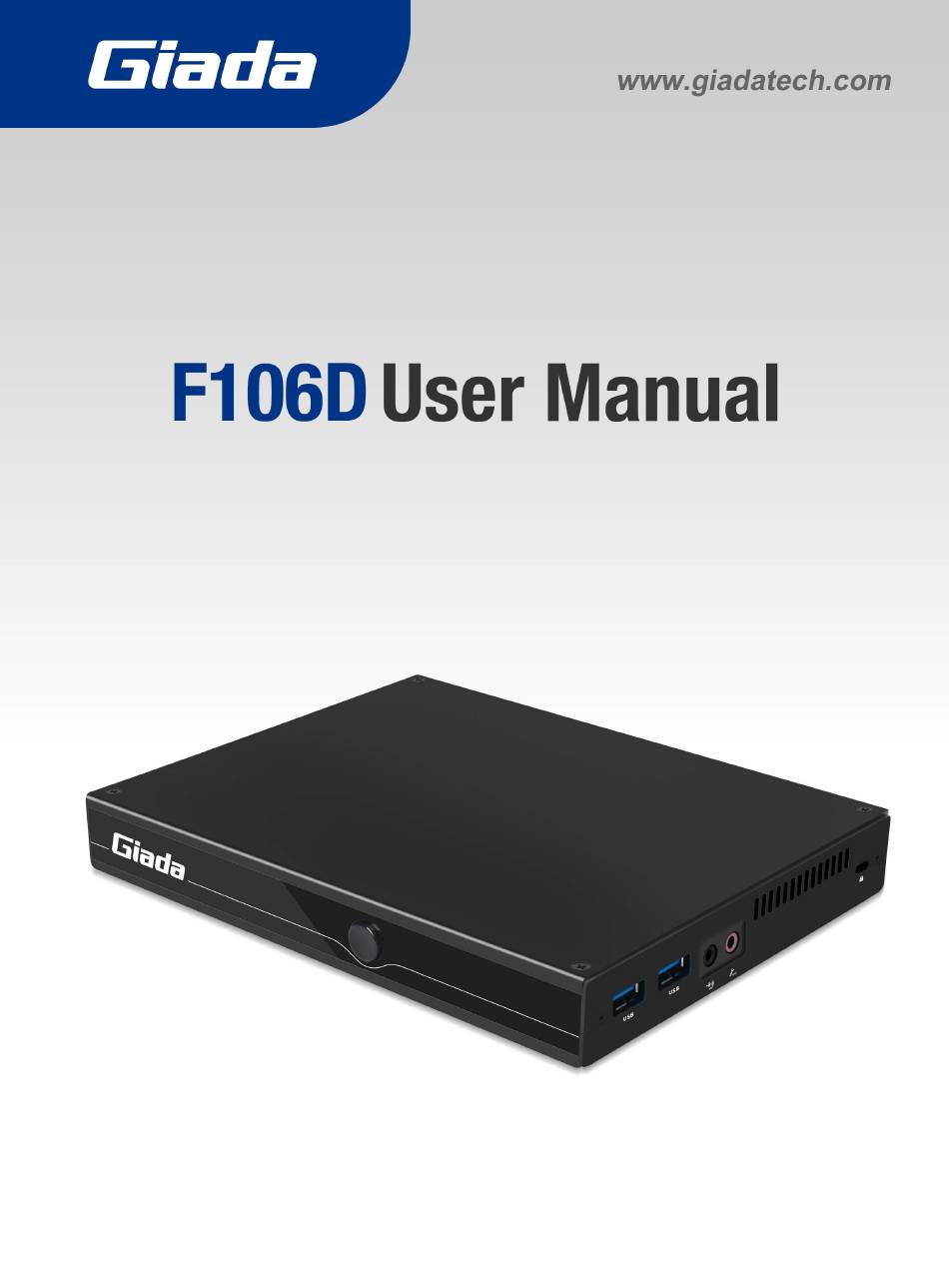

  • Page 2 The copyright of this manual belongs to Shenzhen JEHE Technology Development Co., Ltd. (Giada, JEHE’s global brand) and all rights are reserved. The company reserves the right to change this manual at any time without notification. Specifications here are for reference only, please take the real product as standard.

  • Page 3: Table Of Contents

    Table of Contents 1. Product Introduction....................- 3 - 2. Interface Description and Hardware Specifications..........- 3 - 2.1 Interface Description..................- 3 - 2.2 Hardware Specifications................- 4 - 3. Accessories Installation Steps..................- 6 - 3.1 CPU Installation................ 错误！未定义书签。 3.2 Memory Installation..............错误！未定义书签。...
  • Page 4 4.2.6 System Devices Configuration..............21 4.3 Security......................22 4.4 Boot........................23 4.5 Save & Exit.......................24 5. JAHC Introduction..................... 26 5.1 How to set up Auto power on function............27 5.2 JAHC Software....................29 5.2.1 JAHC software functions..............29 5.2.2 JAHC software installation guide............29 5.2.3 Startup &...

  • Page 5: Product Introduction

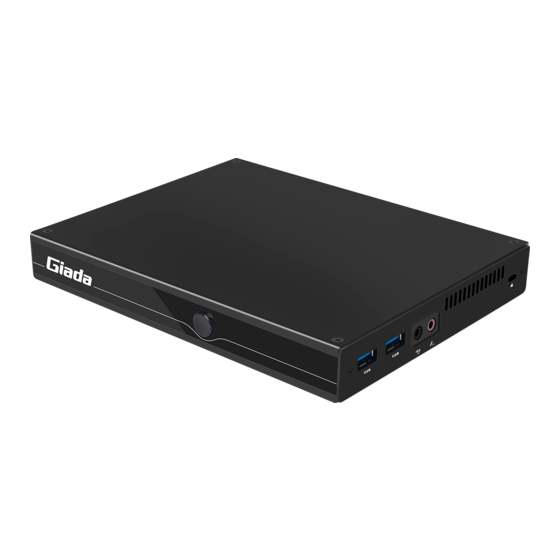

    1. Product Introduction Based on Jasper Lake platform, Giada F106D has both fan and fanless design options. Giada F106D adopts LPDDR4 dual-channel memory as well as M.2 and mSATA storage interface design. With one DP and one HDMI displays output, it can support 4K 60Hz display. The player is suitable to be applied in mainstream digital signage applications.

  • Page 6: Hardware Specifications

    Right I/O port 2.2 Hardware Specifications F106D Intel ® Jasper Lake Celeron N5095(Fan)/N5100 (Fanless) Processor BIOS AMI EFI 64 Mbit Chipset Type LPDDR4-2666MHz Socket Onboard Memory Channel Size 4GB (Optional: 8GB) Intel ® UHD Graphics DirectX 12.1, OpenGL 3.0, OpenCL 1.1, OpenGL ES 2.0, H.264,...
  • Page 7 Controller RTL 8111H Gigabit Ethernet Network Interface 1 x RJ45 (Optional: 2 x RJ45) 2 x USB3.2 Gen2, 4 x USB2.0 Serial Port 1 x RS232 I/O Interface Audio 1 x MIC-IN, 1 x AUDIO-OUT Wireless 1 x E-key M.2 (2230) for WiFi/BT SIM Card 1 x SIM-Slot WatchDog Timer...

  • Page 8: Accessories Installation Steps

    3. Accessories Installation Steps For safety reasons, please ensure that the power cord is disconnected before opening the case. How to open the cover Unscrew the four screws and push to open the case. (1 x M.2 for SSD are on top side). Unscrew the four screws, push the bottom cover and remove it.

  • Page 9: Wifi (M.2) Installation

    3.1 SSD (M.2) Installation 1. Plug the SSD (M.2) into the appropriate slot. 2. Secure the module to the carrier by tightening up the screw. 3.2 WIFI (M.2) Installation 1.Plug the WIFI module into the appropriate slot. 2.Secure the module to the carrier by tightening up the screw. 3.Connect the two black cables to Main and AUX.

  • Page 10: 4G/ Installation

    3.3 3G/4G/ Installation Default SMA connector and cable is for WIFI. Please change to 3G/4G/5G SMA connector and cable. 1. Plug the 3G/4G module into the Mini-PCIe slot. 2. Secure the module to the carrier by tightening up the screw. 3.

  • Page 11: Sim Card Installation

    3.6 SIM Card Installation This product supports standard SIM card with the size of 25mm × 15mm. 1. [Open] the SIM card holder and pull it up. 2. Insert the SIM card. 3. [Lock] the card holder. - 9 -...

  • Page 12: Bios Setup

    The descriptions relating to BIOS setup in this Manual is for reference only since the BIOS version of the product might be upgraded. Giada provides no guarantee that all the contents in this Manual are consistent with the information you acquired.
  • Page 13 B. Function Keys definitions Hot Key Description ↑ (Up key) Move to the previous item ↓ (Down key) Move to the next item ← (Left key) Move to the left item → (Right key) Move to the right item Exit the current interface Page Up Change the setup state, or add the values Page Down...

  • Page 14: Main (Standard Cmos Setup)

    Fig 1 1) Main (standard CMOS setup) This item is used for setting the date and time. 2) Advanced (advanced BIOS setup) This item is used for setting the advanced functions provided by BIOS, such as specifications of PCIe facilities,CPU, HDD, etc. 3）Chipset 4) Security (set the administrator/user password) 5) Boot (startup configuration characteristics)
  • Page 15 4.1 Main (Standard CMOS setting) 1) System time (hh:mm:ss) Use this item to set the time for the computer, with the format as “HH / MM / SS”. 2) System date (mm:dd:yy) Use this item to set the date for the computer, with the format as “week, MM / DD / YY”. - 13 -...

  • Page 16: Advanced (Advanced Bios Setup)

    4.2 Advanced (Advanced BIOS setup) 4.2.1 ACPI Setting - 14 -...
  • Page 17 ACPI Menu Description  Select the highest ACPI sleep state the system will enter ACPI Sleep State when the SUSPEND button is pressed.  Enables or disables system ability to Hibernate (OS/S4 Enable Hibernation Sleep). This option may be not effective with some OS. ...

  • Page 18: Cpu Configuration

    ACPI Menu Description Enabled or Disabled Wake Up by USB KB/MOUSE from S3 Status. Wakeup By USB KB/MS  Disabled: The wake on USB is disabled by default.  Enabled. Wake On LAN Function. Wake Up On LAN  Disabled: The WOL is disabled by default. ...
  • Page 19 CPU Configuration Menu Description  Max Non-Turbo Performance: the best performance. Boot performance mode  Max Battery.  Turbo performance. Intel (VMX) Virtualization Intel Virtualization Technology is enabled by default. User can Technology enable and disable the Intel Virtualization Technology function. Intel （...
  • Page 20 CPU Configuration Menu Description Intel speed shift function is enabled by default. Intel ® Speed Shift Technology uses hardware-controlled P-states to deliver dramatically quicker responsiveness with single-threaded, Intel （ R ） Speed Shift Technology transient (short duration) workloads, such as web browsing, by allowing the processor to more quickly select its best operating frequency and voltage for optimal performance and power efficiency.
  • Page 21 Trusted Computing Description TPM20 Device Found  TPM2.0 device information.  Enables or Disables BIOS support for security device. OS will Security Device Support not show security device. TCG EFI protocol and INT1A interface will not be available. SHA-1 PCR Bank Enabled/Disabled SHA-1 PCR Bank ...
  • Page 22 Trusted Computing Description  Select to tell OS to support PPI SPEC version 1.2 or 1.3.Note Physical Presence Spec Version some HCK tests might not support 1.3. TPM 20 Interface Type  Select the communication interface to TPM20 device.  TPM1.2 will restrict support to TPM1.2 device, TPM2.0 will restrict support to TPM2.0 device, Auto will support both the Device Select...
  • Page 23 4.2.5 Serial Port 1 Configuration - 21 -...
  • Page 24 Serial Port 1 Configuration Description This item can be used to set the Serial Port 1 after entering the Serial Port 1 Configuration Serial Port 1 Configuration. It can be set according to user's needs. Serial Port 1 Configuration The serial port is enabled by default. Serial Port ...

  • Page 25: Oem Configuration

    4.2.6 OEM Configuration - 23 -...
  • Page 26 OEM ME Configuration Menu Description Control Unit (MCU) and software (JAHC Technology Manager). JAHC Enable  Disabled: The JAHC is disable by default.  Enabled. - 24 -...
  • Page 27 4.2.7 OEM ME Configuration - 25 -...

  • Page 28: System Devices Configuration

    OEM ME Configuration menu Description  Enable and disable ME control. ME Control When disabled ME will be put into ME Temporarily disabled Mode. 4.2.8 System Devices Configuration - 26 -...
  • Page 29 - 27 -...
  • Page 30 - 28 -...
  • Page 31 System Devices Configuration menu Description  SDIO Configuration Parameters  DMA Option: Access SD device in DMA mode. Auto option: Access SD device in DMA mode if  SDIO Configuration controller support it, otherwise in PIO mode Access SD device in DMA mode if controller support it, otherwise in PIO mode SATA And RST Configuration SATA Controller(s)

  • Page 32: Security

    4.3 Security If this function is selected, the following information will appear: Enter New Password hhhhhh Then enter a password which is no more than eight characters and press <Enter>. BIOS will require to enter the password again. Once you enter it again, BIOS will save the set password. Once the password item is enabled, you will be required to enter the password every time before the system entering to the setup program of BIOS.
  • Page 33 4.4 Boot Menu Boot Menu Description Boot Configuration  This item is use to set the wait time of entering the operation system. During the BIOS post, if user Setup Prompt Timeout doesn't press the keyboard, it won't respond unless you reboot the BIOS.

  • Page 34: Boot

    Boot Menu Description  The first boot device. If BIOS doesn't detect the first Boot Option #1 boot device, it will check the second boot device. Boot Option #2  The second boot device. Boot Option #3  The third boot device. Boot Option #4 ...

  • Page 35: Jahc Introduction

    Save Exit Item Description Discard Changes and Reset  Give up the settings and exit. Restore Defaults Recover it to default.  Boot Override  Whole Boot devices 5. JAHC Introduction JEHE Active Hardware Control (JAHC) management system includes both hardware Micro Control Unit (MCU) and software (JAHC Technology Manager).
  • Page 36 b. Select Advanced- > OEM Configuration->JAHC Enable->Enable c. Press ‘F10’ to save change & exit after select “JAHC enabled” option. - 34 -...

  • Page 37: Jahc Software

    Supported operation system: Windows 10 64bit, Linux 64bit. How to install JAHC software: Please download the JAHC.EXE from Giada website: www.giadatech.com, then follow up below steps: Double-click the JAHC.EXE file, the setup wizard will pop up, select destination location and click [Next] button to continue the installation.
  • Page 38 b. Click [Next] button to continue the installation. Select [Create a desktop shortcut] and click [Next] button. - 36 -...
  • Page 39 d. Click [Install] button to continue the installation. - 37 -...

  • Page 40: Startup & Shutdown Time Setup

    Click [Finish] button to finish the installation. You can select [Launch JAHC] to run the software automatically after finishing the installation. Notice: The JAHC will be added into boot item when it is installed. It will start up when system boot up. 5.2.3 Startup &...
  • Page 41 One week as a circle, maximum 3 schedules per day. Select each schedule to set up the resume time and shutdown time. Click [Confirm] button to launch the schedule. After finishing the setup, the menu window will notice the resume time and shutdown time. Caution: If the interval from shutdown time to next resume time is less than 3 minutes, the system will not shut down Click [Cancel] button to restore the time settings and cancel the shutdown status.

  • Page 42: Watchdog Api And Instruction

    You can click [Delay] button and set up the time to delay the shutdown or click [Cancel] button to cancel the shutdown. 5.3 Watchdog API and instruction Please contact Giada FAE (email:support@giadatech.com) for watchdog API software and instruction. - 40 -...
  • Page 43 - 41 -...
