Summary of Contents for Giada F108D

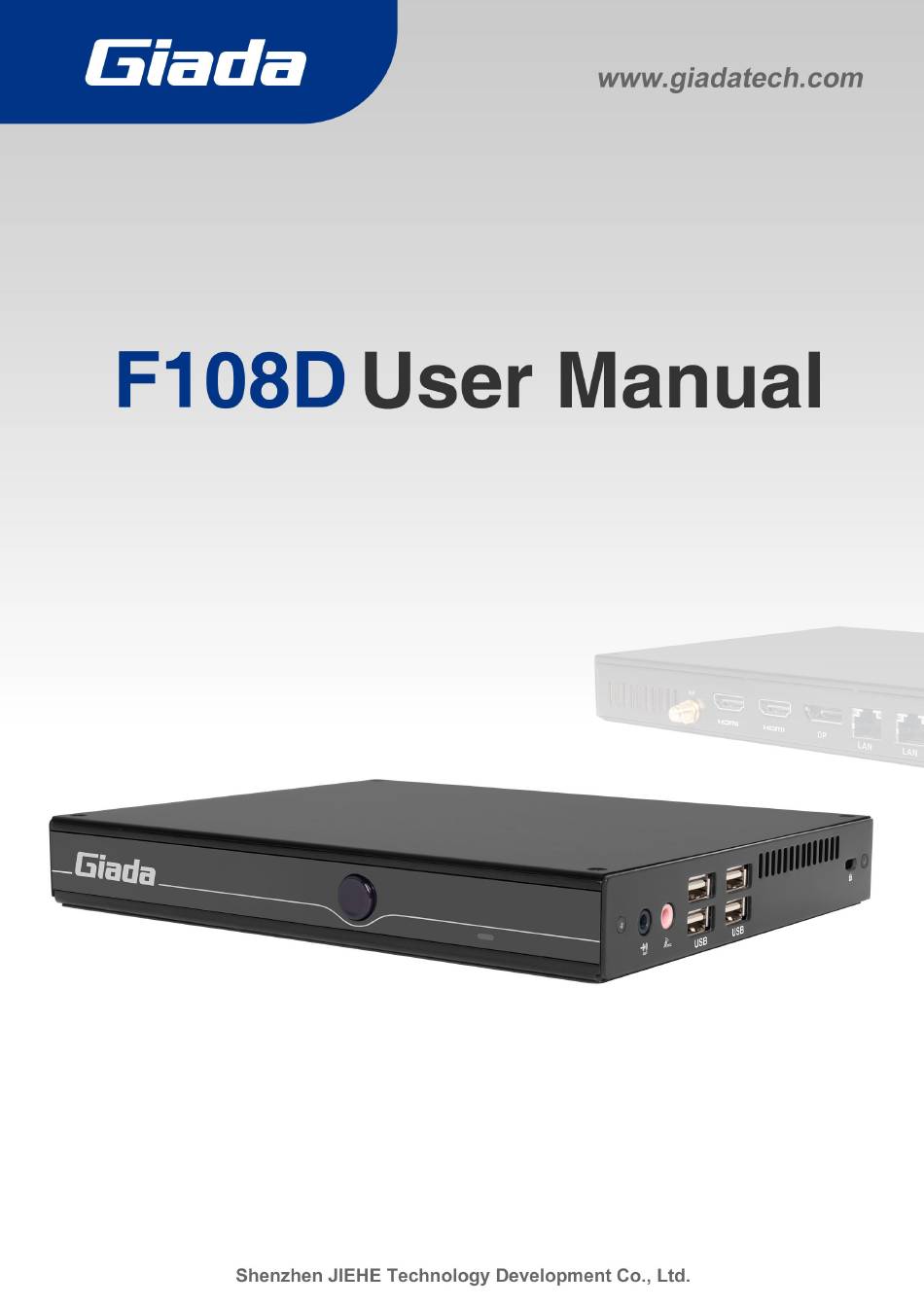

  • Page 1 - 1 -...
  • Page 2 The copyright of this manual belongs to Shenzhen JIEHE Technology Development Co., Ltd. (Giada, JIEHE’s global brand) and all rights are reserved. The company reserves the right to change this manual at any time without notification. Specifications here are for reference only, please take the real product as standard.

  • Page 3: Table Of Contents

    Table of Contents 1. Product Introduction ..................5 2. Interface Description and Hardware Specifications ........5 2.1 Interface Description ..................5 2.2 Hardware Specifications ................6 3. Accessories Installation Steps ................8 3.1 Memory Installation ..................9 3.2 SIM Card Installation ..................9 3.3 3G/4G Installation ..................
  • Page 4 4.2.6 System Devices Configuration ............26 4.3 Security Setup ..................... 27 4.4 Boot Menu....................29 4.5 Save & Exit ....................30 5. JAHC Introduction ..................31 5.1 Auto Power on ..................... 31 5.2 JAHC Software ................... 33 5.2.1 JAHC Software Functions ..............33 5.2.2 JAHC Software Installation Guide ............

  • Page 5: Product Introduction

    1. Product Introduction Based on Intel Alder Lake-N platform, Giada F018D offers both fan and fanless design options. The ® standard version is fanless, while the picture in the manual shows the fan design. It features with dual LAN ports and dual COM ports. With one DP and two HDMI displays output, it can support 4K 60Hz display.

  • Page 6: Hardware Specifications

    Rear I/O Port Right I/O port 2.2 Hardware Specifications F108D F108D-FV-N10040N0G-GIA F108D-NU-N9540N0G-GIA Intel Processor N100 (Fanless) Intel Processor N95 ® ® Processor Frequency 3.40 GHz 3.40 GHz BIOS AMI Source Code Chipset Type DDR4-3200 MHz Memory Socket 1 x SO-DIMM...
  • Page 7 Controller 2 x Realtek RTL 8111H Gigabit Ethernet Interface 2 x RJ45 (Optional: 1 x RJ45) Network Wi-Fi/BT 1 x E-Key M.2 (2230) for Wi-Fi/BT, Support Wi-Fi 5, Wi-Fi 6 1 x B-Key M.2 (3042) for 3G/4G Mobile Network 1 x SIM Slot 2 x USB3.2 Gen2, 4 x USB2.0 Serial Port 2 x RS232...

  • Page 8: Accessories Installation Steps

    3. Accessories Installation Steps For safety reasons, please ensure that the power cord is disconnected before opening the case. How to open the top cover and bottom cover Unscrew the four screws and open the top case. (1 x M-Key M.2 (2280) for SSD, 1 x B-Key M.2 (3042) for 3G/4G, 1 x SIM Slot, 1 x E-Key M.2 (2230) for Wi-Fi/BT are on top side).

  • Page 9: Memory Installation

    3.1 Memory Installation This product only supports DDR4 SO-DIMM memory modules. 1. Locate the SO-DIMM slot on the board. 2. Gently insert the module into the slot at a 45-degree angle. 3. Carefully push down the memory module until it snaps into the locking mechanism. 3.2 SIM Card Installation This product supports standard SIM card with the size of 25mm ×...

  • Page 10: 4G Installation

    3.3 3G/4G Installation  3G/4G Installation Default external antennas are for WIFI. Please change one external antenna for 3G/4G. 1. Plug the 3G/4G module into the M.2 slot. 2. Secure the module to the standoff screw by tightening up the screw. 3.

  • Page 11: Ssd(M.2) Installation

    3.4 SSD (M.2) Installation 1. Plug the SSD (M.2) into the appropriate slot. 2. Secure the module to the carrier by tightening up the screw. - 11 -...

  • Page 12: Wifi(M.2) Installation

    3.5 WIFI (M.2) Installation 1. Plug the WIFI module into the appropriate slot. 2. Secure the module to the carrier by tightening up the screw. 3. Connect the two cables to WIFI module and install the antennas. - 12 -...

  • Page 13: Bios Setup

    The descriptions relating to BIOS setup in this Manual is for reference only when the BIOS version of the product might be upgraded. Giada provides no guarantee that all the contents in this Manual are consistent with the information you acquired.
  • Page 14 B. Function Keys definitions Hot Key Description ↑ (Up key) Move to the previous item ↓ (Down key) Move to the next item ← (Left key) Move to the left item → (Right key) Move to the right item Exit the current interface Page Up Change the setup state, or add the values Page Down...
  • Page 15 Fig 1 1) Main (standard CMOS setup) This item is used for setting the date and time. 2) Advanced (advanced BIOS setup) This item is used for setting the advanced functions provided by BIOS, such as specifications of PCIe facilities, CPU, HDD, etc.

  • Page 16: Main (Standard Cmos) Setup

    4.1 Main (Standard CMOS setting) 1) System time (hh:mm:ss) Use this item to set the time for the computer, with the format as “HH / MM / SS”. 2) System date (mm:dd:yy) Use this item to set the date for the computer, with the format as “week, MM / DD / YY”. - 16 -...

  • Page 17: Advanced Bios Setup

    4.2 Advanced (Advanced BIOS setup) 4.2.1 ACPI Setting - 17 -...

  • Page 18: Cpu Configuration

    ACPI Options Description You can use the ACPI Sleep state option to control system hibernation ACPI Sleep state Suspend Disabled: Disable system Suspend. S3 (Suspend to RAM): Enable S3(Suspend to RAM)  State After G3 means after restore power supply. ...
  • Page 19 The menu Description CPU Configuration Max Non-Turbo Performance: the best performance.  Boot performance mode Max Battery.  Turbo performance.  Intel Virtualization Technology is enabled by default. User can Intel (VMX) Virtualization Technology enable and disable the Intel Virtualization Technology function. Intel （...

  • Page 20: Wake Computing

    The menu Description Intel speed shift function is enabled by default. Intel ® Speed Shift Technology uses hardware-controlled P-states to deliver dramatically quicker responsiveness with single-threaded, transient Intel （ R ） Speed Shift Technology (short duration) workloads, such as web browsing, by allowing the processor to more quickly select its best operating frequency and voltage for optimal performance and power efficiency.
  • Page 21 WAKE Configuration Options Description WAKE Configuration Wake On LAN Function. Wake Up On RLT LAN Disabled: The WOL is disabled by default.  Enabled.  Wake up By USB KB/MS Enabled/Disabled Wake Up by USB KB/Mouse from S3 Status.  Disabled: By default, the functions is disabled.

  • Page 22: Trusted Computing

    4.2.4 Trusted Computing - 22 -...
  • Page 23 TPM20 Device Found Description Firmware Version TPM FW version is 600.18  Vendor The vendor is INTC  Disabled  Security Device Support Enabled. This item is enabled by default.  Disabled. This item is Enabled by default  SHA256 PCR Bank Enabled.

  • Page 24: Hw Monitor & Smart Fan

    4.2.5 HW Monitor & Smart fan - 24 -...
  • Page 25 Pc Health Menu Description Pc Health Status It includes "Automatic mode" and "software mode". Smart Fan 2 Mode Automatic mode. Automatic mode is enabled by default.  Software mode.  FAN will stop work If temperature is lower than the Fan off ...

  • Page 26: System Devices Configuration

    4.2.6 System Devices Configuration - 26 -...

  • Page 27: Security Setup

    Menu Description The SATA controller is enabled by default. SATA Controller(s) Enabled  Disabled.  SATA Mode Selection Determines how SATA controller(s) operate.  Control Detection of the HD-Audio device.  HD Audio HAD will be unconditionally disabled when disabled. ...
  • Page 28 Then enter a password which is no more than eight characters and press <Enter>. BIOS will require to enter the password again. Once you enter it again, BIOS will save the set password. Once the password item is enabled, you will be required to enter the password every time before the system entering to the setup program of BIOS.

  • Page 29: Boot Menu

    4.4. Boot Menu Boot Item Description Boot Configuration This item is used to set the waiting time of entering the operation system. During the BIOS post, if user doesn't press the keyboard, it won't respond Setup Prompt Timeout unless you reboot the BIOS. The Setup Prompt Timeout is 3s by default. You can set the time as you want.

  • Page 30: Save&Exit

    Boot Item Description Boot Option #3 The third boot device. Boot Option #4 The fourth boot device. Boot Option #5 The fifth boot device. Boot Option #6 The sixth boot device. Boot Option #7 The seventh boot device. UEFI USB Drive BBS You can set and management UEFI USB device after enabling this option.

  • Page 31: Jahc Introduction

    Save Exit Item Description Discard Changes and Reset Give up the settings and exit. Restore Defaults Recover it to default. Boot Override Whole Boot devices 5. JAHC Introduction JEHE Active Hardware Control (JAHC) management system includes both hardware Micro Control Unit (MCU) and software (JAHC Technology Manager).
  • Page 32 b. Select Advanced- > ACPI Setting- > JAHC Enable- > Enabled. c. Press ‘F10’ to save change & exit after select “JAHC enabled” option. - 32 -...

  • Page 33: Jahc Software

    Supported operation system: Windows 10 64bit, Linux 64bit. How to install JAHC software: Please download the JAHC.EXE from Giada DVD, then follow up below steps: Double-click the JAHC.EXE file, the setup wizard will pop up, select destination location and click [Next] button to continue the installation.
  • Page 34 b. Click [Next] button to continue the installation. Select [Create a desktop shortcut] and click [Next] button. - 34 -...
  • Page 35 d. Click [Install] button to continue the installation. - 35 -...
  • Page 36 Click [Finish] button to finish the installation. You can select [Launch JAHC] to run the software automatically after finishing the installation. Notice: The JAHC will be added into boot item when it is installed. It will start up when system boot up. - 36 -...

  • Page 37: Startup And Shutdown Time Setup

    5.2.3 Startup & shutdown time setup After install the JAHC software, double click the JAHC icon on taskbar and the setup menu will pop One week as a circle, maximum 3 schedules per day. Select each schedule to set up the resume time and shutdown time.

  • Page 38: Watchdog Api And Instruction

    You can click [Delay] button and set up the time to delay the shutdown or click [Cancel] button to cancel the shutdown. 5.3 Watchdog API and instruction Please contact Giada FAE (email:support@giadatech.com) for watchdog API software and instruction. - 38 -...
  • Page 39 - 39 -...
