  • Page 2 Without official authorization of Giada, other companies or individuals may not copy, plagiarize, translate, or disseminate this manual for commercial purpose. The information provided in this manual is accurate and reliable. The company does not take any legal responsibility for the consequences of infringement use of this manual.

  • Page 3: Table Of Contents

    Table of Contents 1. Product Introduction························································································· - 2 - 2. Interface Description and Hardware Specifications····················································· - 2 - 2.1 Interface Description·················································································· - 2 - 2.2 Hardware Specifications·············································································· - 4 - 3.Accessories Installation Steps··············································································· - 5 - 3.1 WIFI (M.2) Installation··············································································· - 5 - 3.2 SSD (MSATA) Installation··········································································...

  • Page 4: Product Introduction

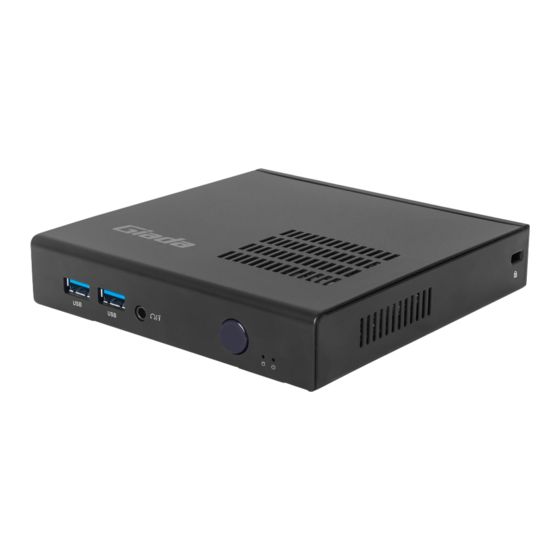

    1. Product Introduction Based on Intel® Elkhart Lake, Giada DK310 supports Pentium® quad-core J6426 and Celeron® quad-core J6412 processors, with 4GB (8GB as option) LPDDR4 memory onboard, it gets designed in small form factor with one HDMI and one DP outputs, featuring with dual 4K video decoding and 7+ years life cycle.
  • Page 5 Rear I/O Port I/O Port in side - 3 -...

  • Page 6: Hardware Specifications

    2.2 Hardware Specifications DK310 DK310-J641242M0G-GIA DK310-J642642M0G-GIA Intel ®Celeron® quad-core J6412/Intel ®Pentium® quad-core J6426 Chipset Processor AMI Source Code BIOS 2.60 GHz/3.00 GHz Frequency DDR4-2666MHz Type Memory Socket Onboard Capacity 4GB onboard, (Optional: 8GB) Intel ® UHD Graphics DirectX, OpenGL, OpenCL, Intel® Quick Sync Video...

  • Page 7: Accessories Installation Steps

    3.Accessories Installation Steps For safety reasons, please ensure that the power cord is disconnected before opening the case. How to open the cover Unscrew the two screws. Push and open the case. (1 x Mini-PCIe for Msata SSD, 1 x M.2 (2230) for WiFi/BT). 3.1 WIFI (M.2) Installation 1.

  • Page 8: Ssd (Msata) Installation

    3.2 SSD (MSATA) Installation 1. Plug the SSD (MSATA) module into the mini PCIE slot. 2. Secure the module to the carrier by tightening up the screw. - 6 -...

  • Page 9: Bios Setup

    The descriptions relating to BIOS setup in this Manual is for reference only since the BIOS version of the product might be upgraded. Giada provides no guarantee that all the contents in this Manual are consistent with the information you acquired.
  • Page 10 B. Function Keys definitions Hot Key Description ↑ (Up key) Move to the previous item ↓ (Down key) Move to the next item ← (Left key) Move to the left item → (Right key) Move to the right item Exit the current interface Page Up Change the setup state, or add the values Page Down...
  • Page 11 Fig 1 Main (standard CMOS setup) This item is used for setting the date and time. Advanced (advanced BIOS setup) This item is used for setting the advanced functions provided by BIOS, such as specifications of PCIe facilities,CPU, HDD, etc. 3）Chipset Security (set the administrator/user password) Boot (startup configuration characteristics)

  • Page 12: Main (Standard Cmos Setting)

    4.1 Main (Standard CMOS setting) 1) System time (hh:mm:ss) Use this item to set the time for the computer, with the format as “HH / MM / SS”. 2) System date (mm:dd:yy) Use this item to set the date for the computer, with the format as “week, MM / DD / YY”. - 10 -...

  • Page 13: Advanced (Advanced Bios Setup)

    4.2 Advanced (Advanced BIOS setup) - 11 -...

  • Page 14: Acpi Setting

    4.2.1 ACPI Setting ACPI Setting Menu Description You can use the ACPI Sleep state option to control system hibernation ACPI Sleep state Suspend Disabled: Disable system Suspend.  S3 (Suspend to RAM): Enable S3(Suspend to RAM)  Enables or Disables System ability to Hibernate (OS/S4 Sleep ...

  • Page 15: Cpu Configuration

    4.2.2 CPU Configuration - 13 -...
  • Page 16 CPU Configuration Menu Description CPU Configuration Max Battery  Boot performance mode Max Non-Turbo Performance.  Turbo Performance.  Intel (VMX) Virtualization Intel Virtualization Technology is enabled by default. User can enable and Technology disable the Intel Virtualization Technology function. Intel （...

  • Page 17: Trusted Computing

    4.2.3 Trusted Computing - 15 -...
  • Page 18 TPM20 Device Found Description Firmware Version TPM FW version is 600.15  Vendor The vendor is INTC  Disabled  Security Device Support Enabled. This item is enabled by default.  Disabled. This item is disabled by default.  CHA-1 PCR Bank Enabled.

  • Page 19: Hardware Monitor

    4.2.4 Hardware Monitor - 17 -...
  • Page 20 System Devices Configuration Description Smart Fan Function It includes "Software Mode" and "Automatic Mode". Smart Fan1 Mode Software Mode.  Automatic Mode: Automatic Mode is enabled by default.  FAN will stop working If temperature is lower than the Fan off Fan off temperature limit temperature limit value.

  • Page 21: Serial Port 1 Configuration

    4.2.5 Serial Port 1 Configuration - 19 -...
  • Page 22 Super IO Configuration Description Serial Port 1 Configuration The serial port is enabled by default. Serial Port Enabled  Disabled.  User can set the serial port by change settings option. Auto  IO=3F8H ； IRQ=4 ；  Change settings IO=3F8H ；...

  • Page 23: Oem Configuration

    4.2.6 OEM Configuration - 21 -...

  • Page 24: Oem Me Configuration

    OEM Configuration Menu Description JEHE Active Hardware Control (JAHC) management system includes both hardware Micro Control Unit (MCU) and software (JAHC Technology Manager). JAHC Enable Disabled: The JAHC is disabled by default.   Enabled. 4.2.7 OEM ME Configuration OEM Configuration Menu Description ME Control ...

  • Page 25: System Devices Configuration

    4.2.8 System Devices Configuration System Devices Configuration Menu Description SDIO Configuration SATA And RST Configuration SATA Controller(s) Enable/Disable SATA Controller(s)  Serial ATA Port 0 Serial ATA Port 0  Software Preserve Software Preserve  Port 0 Enable or Disable SATA port. ...

  • Page 26: Security

    System Devices Configuration Menu Description Enabled/Disabled IPV4 PXE boot support. If disabled IPV4 boot support will not be available. Ipv4 HTTP Support Enabled.  Disabled. This item is disabled by default.  Enabled/Disabled IPV6 PXE boot support. If disabled, IPV6 PXE boot support will not be available.
  • Page 27 Secure Boot Menu Description Secure boot feature is active if secure Boot is enabled, platform key(PK)  Secure Boot is enrolled and the system is in user mode. The mode change requires platform reset. Secure Boot mode options: Stand or Custom. In Custom Mode, secure ...

  • Page 28: Boot Menu

    4.4 Boot Menu Boot Item Description Boot Configuration This item is use to set the wait time of entering the operation system.  During the BIOS post, if user doesn't press the keyboard, it won't Setup Prompt Timeout respond unless you reboot the BIOS. The Setup Prompt Timeout is 3s by default.
  • Page 29 Boot Item Description BOOT ORDER Priorities The first boot device. If BIOS doesn't detect the first boot device, it  Boot Option #1 will check the second boot device. The second boot device. If BIOS doesn't detect the second boot ...

  • Page 30: Save & Exit

    4.5 Save & Exit Save Exit Item Description Save Options Save Changes and Reset Save all changes and exit  Discard Changes and Reset Give up the settings and exit.  Restore Defaults Recover it to default.  Boot Override Whole Boot devices ...

  • Page 31: Jahc Introduction

    5. JAHC Introduction JEHE Active Hardware Control (JAHC) management system includes both hardware Micro Control Unit (MCU) and software (JAHC Technology Manager). It can support following functions: 1. Automatically boot up when power on. It is controlled by the Micro Control Unit (MCU) chip. 2.
  • Page 32 b. Select Advanced- > OEM Configuration- > JAHC Enable- > Enabled. c. Press ‘F10’ to save change & exit after select “JAHC enabled” option. - 30 -...

  • Page 33: Jahc Software

    Supported operation system: Windows 10 64bit, Linux 64bit. How to install JAHC software: Please download the JAHC.EXE from Giada website: www.giadatech.com, then follow up below steps: Double-click the JAHC.EXE file, the setup wizard will pop up, select destination location and click [Next] button to continue the installation.
  • Page 34 b. Click [Next] button to continue the installation. Select [Create a desktop shortcut] and click [Next] button. - 32 -...
  • Page 35 d. Click [Install] button to continue the installation. - 33 -...

  • Page 36: Startup & Shutdown Time Setup

    Click [Finish] button to finish the installation. You can select [Launch JAHC] to run the software automatically after finishing the installation. Notice: The JAHC will be added into boot item when it is installed. It will start up when system boot up. 5.2.3 Startup &...
  • Page 37 One week as a circle, maximum 3 schedules per day. Select each schedule to set up the resume time and shutdown time. Click [Confirm] button to launch the schedule. After finishing the setup, the menu window will notice the resume time and shutdown time. Caution: If the interval from shutdown time to next resume time is less than 3 minutes, the system will not shut down Click [Cancel] button to restore the time settings and cancel the shutdown status.

  • Page 38: Watchdog Api And Instruction

    You can click [Delay] button and set up the time to delay the shutdown or click [Cancel] button to cancel the shutdown. 5.3 Watchdog API and instruction Please contact Giada FAE (email:support@giadatech.com) for watchdog API software and instruction. - 36 -...
  • Page 39 - 37 -...
