Backyard Creations M21039LST Assembly Instructions

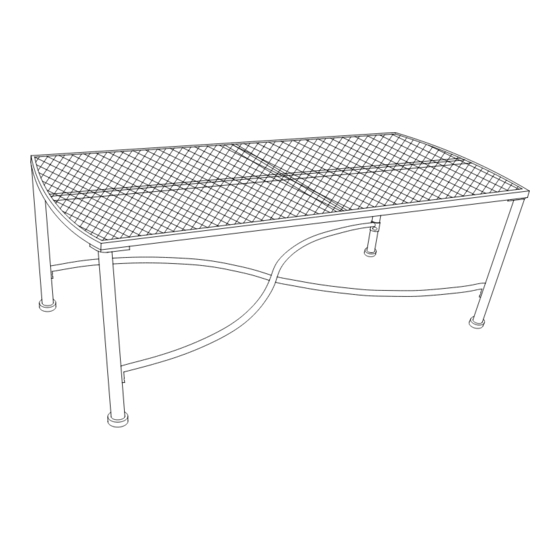

Oceanside Coffee Table
Item #2721898, -1899, -1901 / M21039LST, -40LST, -41LST
Assembly Instructions
**TO AVOID POTENTIAL SCRATCHING TO PARTS BY ROUGH GROUND SURFACE, COVER GROUND WITH
SOFT SMOOTH PROTECTIVE MATERIAL ON WHICH TO PLACE PARTS DURING ASSEMBLY. **
Step 1: Remove protective wrapping and lay all parts on floor. Identify all parts packed in carton against
the parts list.
Step 2: Lay Table Top Frame (A) upside down on floor, so bottom is facing up. Place a protective soft
material on floor before placing table top face down on floor.
Step 3: Attach each of four legs (B) to the bottom as shown in Diagram 1, using Bolt (D) and Washer ( E).
Then attach Stretcher (C) to Leg (B) using Bolt (D) and Washer ( E) as shown in Diagram 2.
Step 4: After making sure all bolts are aligned properly and tightened sufficiently, place Bolt Covers (F)
over bolts. Turn table over to upright position onto flat surface as shown in Diagram 3.
NOTE: IT IS USER'S RESPONSIBILITY TO MAKE SURE ALL PARTS ARE ASSEMBLED AND TIGHTENED
PROPERLY AND SECURELY.
WARNING!: TABLE IS NOT MEANT FOR SITTING OR STANDING ON. DO NOT SIT / STAND ON OR LEAN
FULL BODY AGAINST TABLE. IMPROPER USE MAY LEAD TO PRODUCT DAMAGE AND/OR BODILY
INJURY.
B
Diagram 1
A
1 of 2
