StarTech.com RK12WALLOA Quick Start Manual page 2

Product ID M6 Cage Nuts Qty.
RK12WALLOA
RK15WALLOA
RACK-18U-20-WALL-OA
RACK-21U-20-WALL-OA
RACK-24U-20-WALL-OA
Warnings!
• Read the entire manual and ensure the instructions are fully understood before
assembling and/or using this product.
• StarTech.com Ltd. is not responsible for any property damage and/or personal injury
resulting from the installation procedures outlined in this technical document.
• Mounting hardware is not included with this product. Make sure to source appropriate
mounting hardware that is capable of supporting the weight of a loaded Rack, and is
adequate for the wall type the rack is going to be mounted on.
• Before adding equipment to this product, ensure this product has been properly mounted.
• Never operate this product if parts are missing or damaged
• If lacking the necessary expertise to wall mount this product, contact a construction
professional to install the wall mount or to provide specific mounting instructions for the
wall structure.
• Ensure the weight of the equipment does not exceed the weight capacity of this product.
If the weight capacity is exceeded, personal injury or damage to the equipment are
possibilities. These products can support the following weight: up to 90 kg (198.4 lb).
• Wall structures vary. Ensure the type of wall structure and mounting hardware will
properly support the mounted equipment. Failure to do so might result in personal injury
and/or equipment damage. The wall structure should be capable of supporting at least
four times the weight of the mounted equipment.
Installation
Assemble the Adjustable Depth Server Rack
The Adjustable Depth Rack features Front and Rear Horizontal Brackets that can be set
to the required mounting depth. The Adjustment Holes on the brackets are spaced
1 inch (2.5 cm) apart. The minimum depth is 12 inches (30. 5 cm ) and the maximum
depth is 20 inches (50.8 cm).
Assemble the Bracket Assemblies
1. Prepare Bolt Assemblies (x 12) for use in Step 4 by sliding the Washers (x 12) over
the Bolts (x 12).
2. Determine the Required Mounting Depth according to your application.
3. Slide one of the Rear Horizontal Brackets into one of the Front Horizontal
Brackets. Slide these two components together until the Required Mounting Depth
has been achieved and the Adjustment Holes are aligned on the two brackets.
M6 Screws M6 Plastic
Qty. Washers Qty.
48 48
60 60
72 72
84 84
96 96
4. Insert the Bolt Assemblies through the Adjustment Holes, two on the side and
one on the horizontal surface, on the aligned Front and Rear Horizontal Brackets
from Step 3. Tighten with an appropriately sized Wrench.
48
5. Repeat Step 4 for the second set of Adjustment Holes on the opposite side of the
60
Front and Rear Horizontal Brackets. The first Bracket Assembly is now complete.
72
6. Repeat Steps 3 to 5 to assemble the second Bracket Assembly.
84
Attach the Mounting Posts to a Bracket Assembly
96
1. Place one of the Mounting Posts inside one of the front corners of one Bracket
Assembly and align the Assembly Screw Holes.
2. Insert the Assembly Screws (x 4) through the Assembly Screw Holes (x 4) on the
Front Horizontal Brackets aligned in Step 3 and tighten using a Phillips Head
Screwdriver. (Figure 1)
Assembly Screws
3. Repeat Steps 1 and 2 to attach the second Mounting Post into the same Bracket
Assembly.
Note: Use the U markings on each Mounting Post as a guide to ensure both Mounting
Posts are oriented in the same direction.
Attach the Second Bracket Assembly
1. Slide the second Bracket Assembly over the Mounting Post.
2. Repeat Steps 2 and 3 from
complete the assembly for the Adjustable Depth Rack.
Mount the Adjustable Depth Rack
1. Mark the Mounting Points (x 4) using the Wall Mounting Holes (x 4) on the
Rear Horizontal Brackets as a Template. Ensure it is level, using a Spirit/Bubble
Level.
2. Use the appropriate Mounting Hardware to fasten the Wall Mount Server Rack to
the Mounting Surface.
Right Mounting Rail
Front Horizontal Bracket

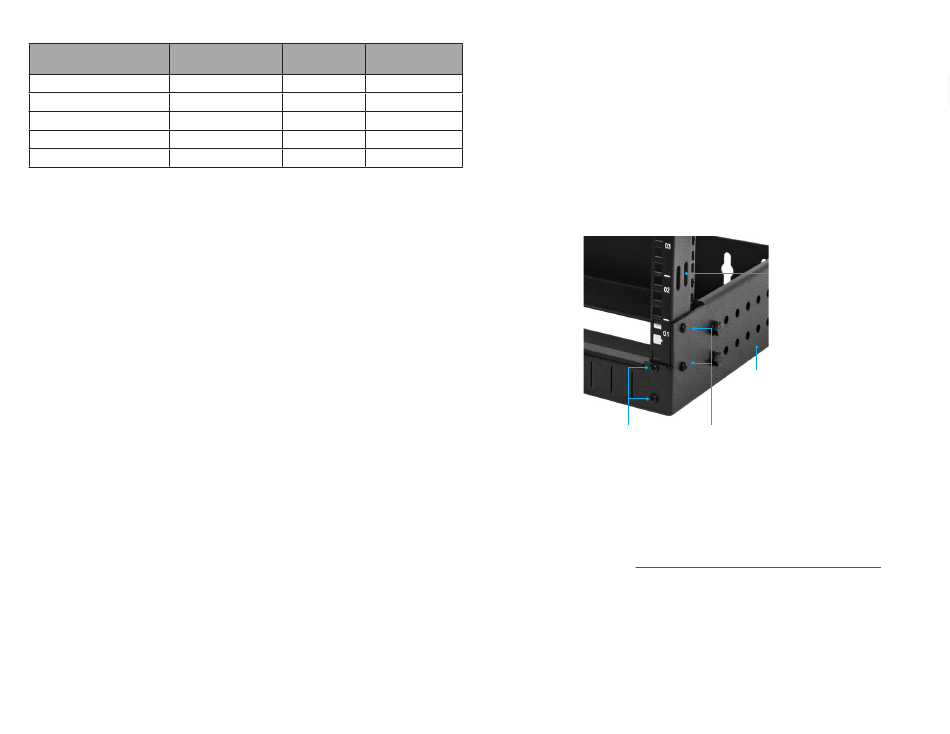

Figure 1
Attach the Mounting Posts to a Bracket Assembly to
