StarTech.com RK12OD2 Quick Start Manual

12U 19in Open Frame 2-Post Desktop Rack

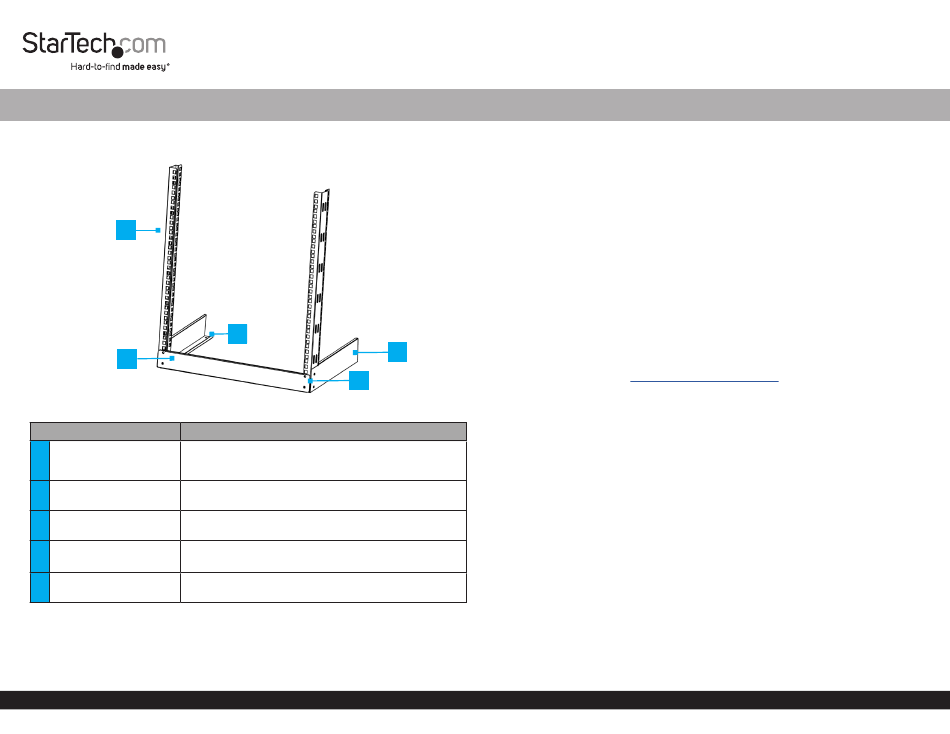

Product Diagram (RK12OD2)
1
2
Component
• Feature Square Cage Nut Holes to mount your
1 Vertical Rails
equipment
2 Front Base Bracket • Stabilizes the frame and adds rigidity
3 Rubber Feet Holes • Insert the Rubber Feet to protect the surface
• Used to connect the Vertical Rails, Front Base
4 Assembly Holes
Bracket, and Base Brackets together
5 Base Brackets • Stabilizes the frame and adds rigidity
To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.
To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.
3
5
4
*Product may vary from image
Function
Package Contents
• Left Base Bracket x 1
• Right Base Bracket x 1
• Front Base Bracket x 1
• Left Vertical Rail x 1
• Right Vertical Rail x 1
• M5x12 mm Assembly Screws x 8
• M6x12 Screws x 48
• M6 Cage Nuts x 48
• M6 Plastic Washers x 48
• Rubber Feet x 4
• Quick-Start Guide x 1
Requirements
For the latest manuals, product information, technical specifications, and declarations
of conformance, please visit: www.startech.com/RK12OD2
• Phillips head screwdriver
• Cage nut tool (Optional)
Warnings!
Read the entire quick-start guide and ensure the instructions are fully understood
before assembling and/or using this product.
Before adding equipment to this prouct, ensure this product has been properly
assembled.
Never operate this product if parts are missing or damaged.
Ensure the weight of the equipment does not exceed the weight capacity of this
product. If the weight capacity is exceeded, personal injury or damage to the
equipment are possibilities. This product can support the following weight:
110 lb (50 kg).
This product poses a tipping risk.
The desk or table should be capable of supporting at least two times the weight of the
mounted equipment.
Arrange your equipment in the rack in descending order of weight starting from the
top. The lightest device is installed at the top of the rack and the heaviest device is on
the bottom of the rack
Quick-Start Guide
Manual Revision: August 18, 2022 3:24 PM
