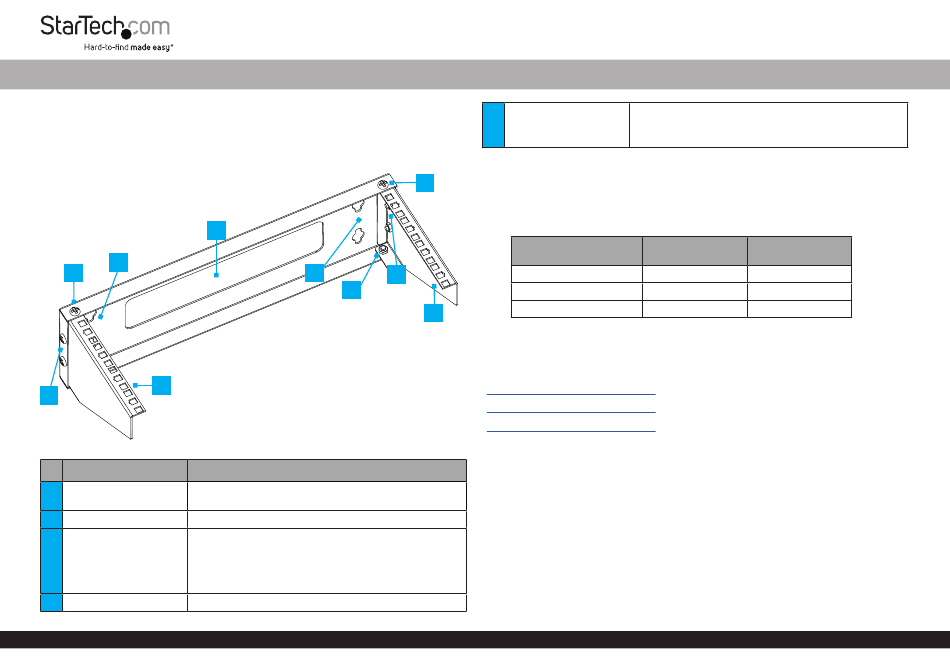

19in Vertical Wall Mount Rack Bracket - Flat-Pack
Product ID
RK419WALLV-N
RK219WALLV-N
RK119WALLV-N
5
3
2
4
1
Feature
• Used to secure the Mounting Rails in the extended
Mounting Rail Securing
1
Holes
position with the Assembly Screws
2
Top and Bottom Screws
• Enable to fold the Mounting Rails in place
• Enable to fasten the Vertical Wall Mount Rack
Bracket to a wall
3
Wall Mounting Holes
• Keyhole mounting enables simplified mounting or
unmounting
• Holes are spaced 16-inch (40cm) horizontally
4
• Use to mount Server Rack Equipment
Mounting Rails
For additional self-service support options and community forums, please visit: www.StarTech.com/support
Package Contents
2
3
1
2
4
Requirements
For the latest manuals, product information, technical specifications, and declarations of
conformance, please visit:
*Product may vary from image
Function
Warnings!
• (Optional) Route the Server Rack Equipment Cables
5
Cable Pass-Through
Notes: A cable access port should be created in the wall
to facilitate cable routing
• Vertical Wall Mount Rack Bracket x1
• Assembly Screws x 4
• Wood Screws x 4
• Quick-Start Guide x 1
M5 Cage Nuts
Product ID
RK419WALLV-N
RK219WALLV-N
RK119WALLV-N
www.StarTech.com/RK419WALLV-N
www.StarTech.com/RK219WALLV-N
www.StarTech.com/RK119WALLV-N
• Phillips head screwdriver
• Appropriate mounting hardware and tools for the wall type
• Cage nut tool (Optional)
• StarTech.com Ltd. is not responsible for any property damage and/or personal injury
resulting from the installation procedures outlined in this technical document.
• The mounting instructions and/or hardware included with this product may not be suitable
for the specific wall structure used. If you lack the necessary expertise required to attach this
product to the wall structure or to assess the suitability of the hardware provided, please
contact a professional installer.
• Read the entire Quick-Start Guide and ensure the instructions are fully understood before
using this product.
Quick-Start Guide
M5 Screws
Quantity
Quantity
16
16
8
8
4
4
Revision: September 25, 2024
