I
NTRODUCTION
PICTOGRAM
ê
ç
1.3

About the MAT air curtain

8

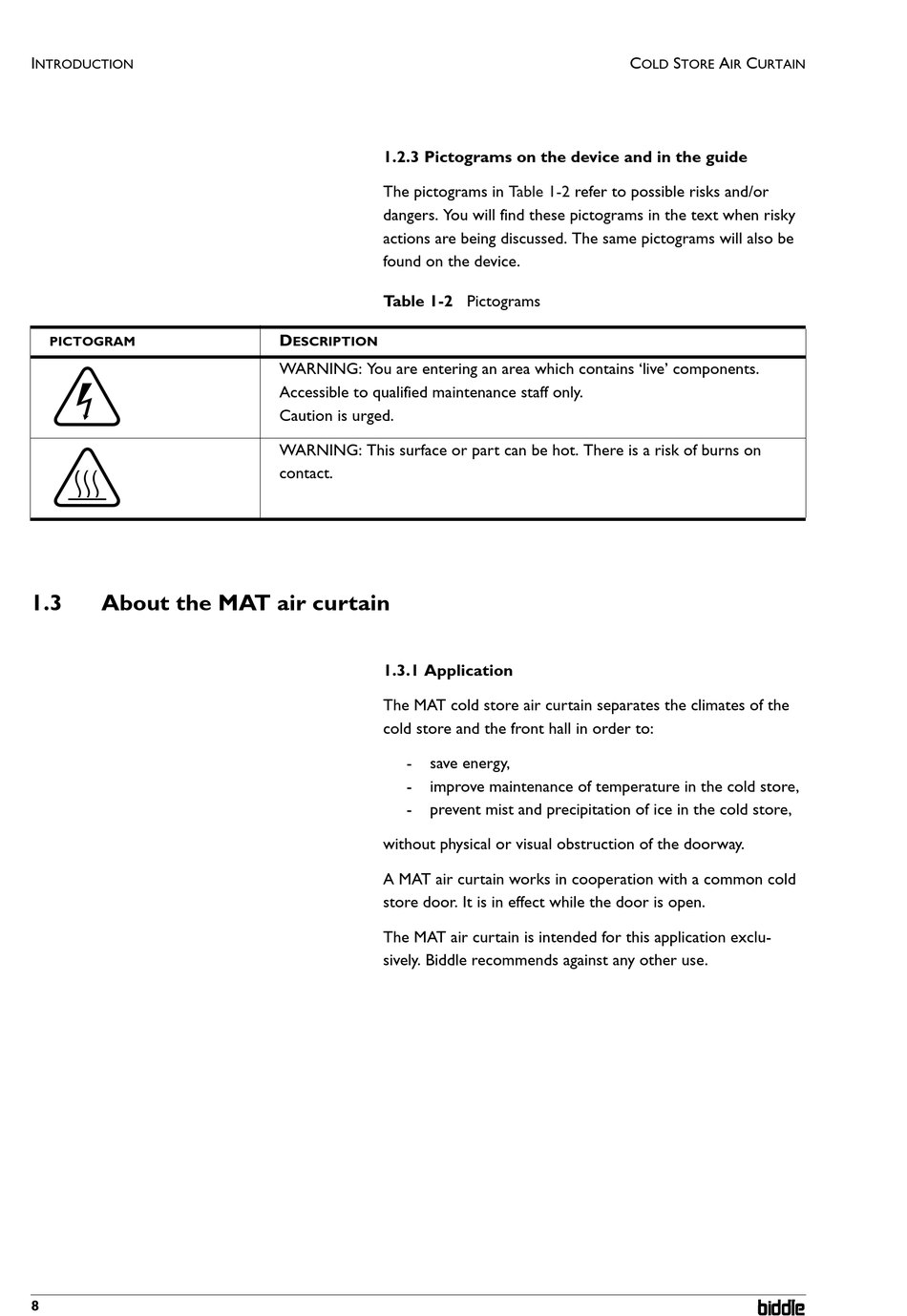

1.2.3 Pictograms on the device and in the guide

The pictograms in
dangers. You will find these pictograms in the text when risky
actions are being discussed. The same pictograms will also be
found on the device.
Table 1-2 Pictograms
D
ESCRIPTION
WARNING: You are entering an area which contains 'live' components.
Accessible to qualified maintenance staff only.
Caution is urged.
WARNING: This surface or part can be hot. There is a risk of burns on
contact.

1.3.1 Application

The MAT cold store air curtain separates the climates of the
cold store and the front hall in order to:
- save energy,
- improve maintenance of temperature in the cold store,
- prevent mist and precipitation of ice in the cold store,
without physical or visual obstruction of the doorway.
A MAT air curtain works in cooperation with a common cold
store door. It is in effect while the door is open.
The MAT air curtain is intended for this application exclu-
sively. Biddle recommends against any other use.
C S
OLD
Table 1-2 refer to possible risks and/or
A C
TORE IR URTAIN
