I
, O
NSTALLATION
PERATION

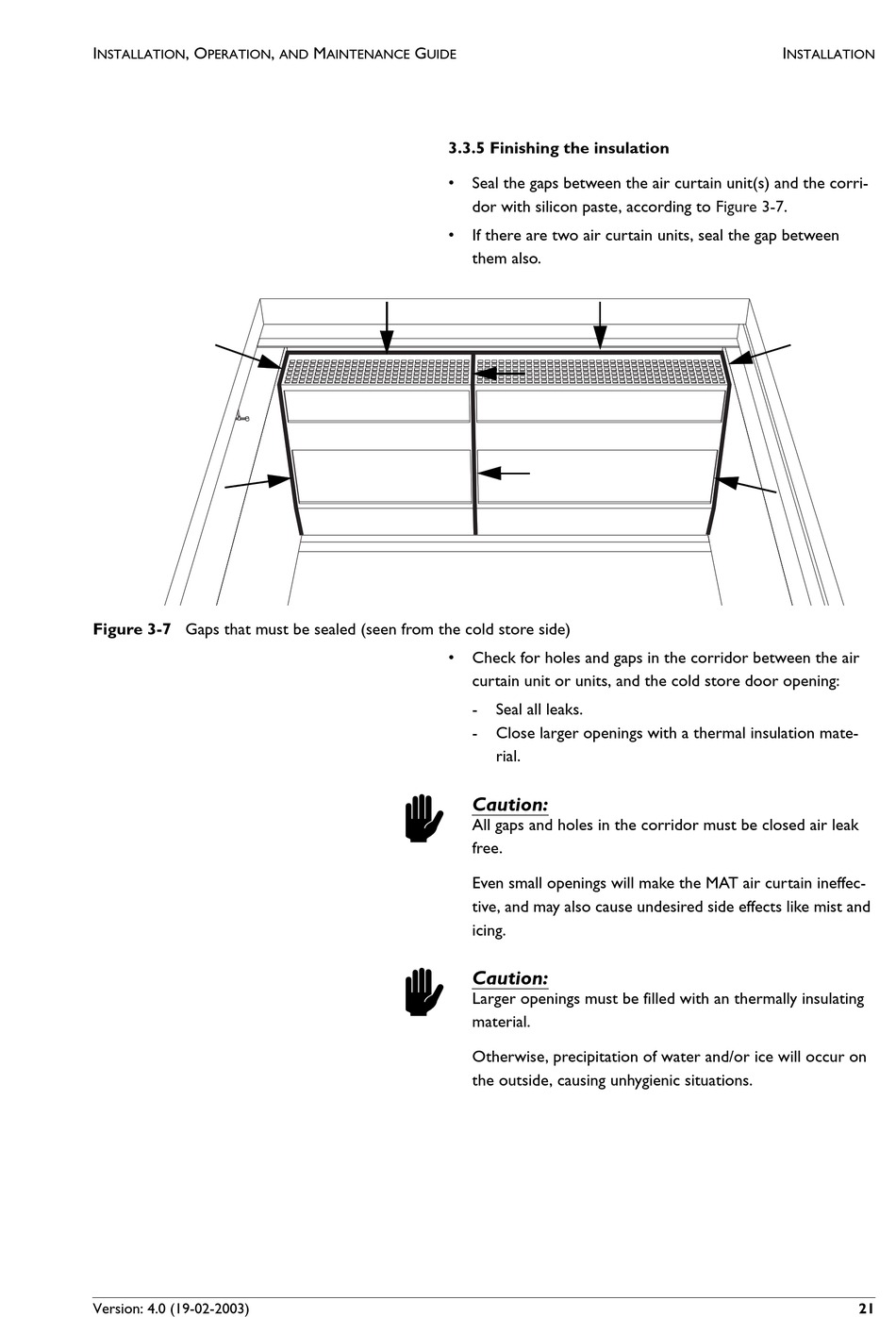

Figure 3-7 Gaps that must be sealed (seen from the cold store side)
Version: 4.0 (19-02-2003)
,
M
G
AND
AINTENANCE
UIDE
c
c

3.3.5 Finishing the insulation

Seal the gaps between the air curtain unit(s) and the corri-
dor with silicon paste, according to
If there are two air curtain units, seal the gap between
them also.
Check for holes and gaps in the corridor between the air
curtain unit or units, and the cold store door opening:
-
Seal all leaks.
-
Close larger openings with a thermal insulation mate-
rial.
Caution:
All gaps and holes in the corridor must be closed air leak
free.
Even small openings will make the MAT air curtain ineffec-
tive, and may also cause undesired side effects like mist and
icing.
Caution:
Larger openings must be filled with an thermally insulating
material.
Otherwise, precipitation of water and/or ice will occur on
the outside, causing unhygienic situations.
I
NSTALLATION
Figure
3-7.
21
