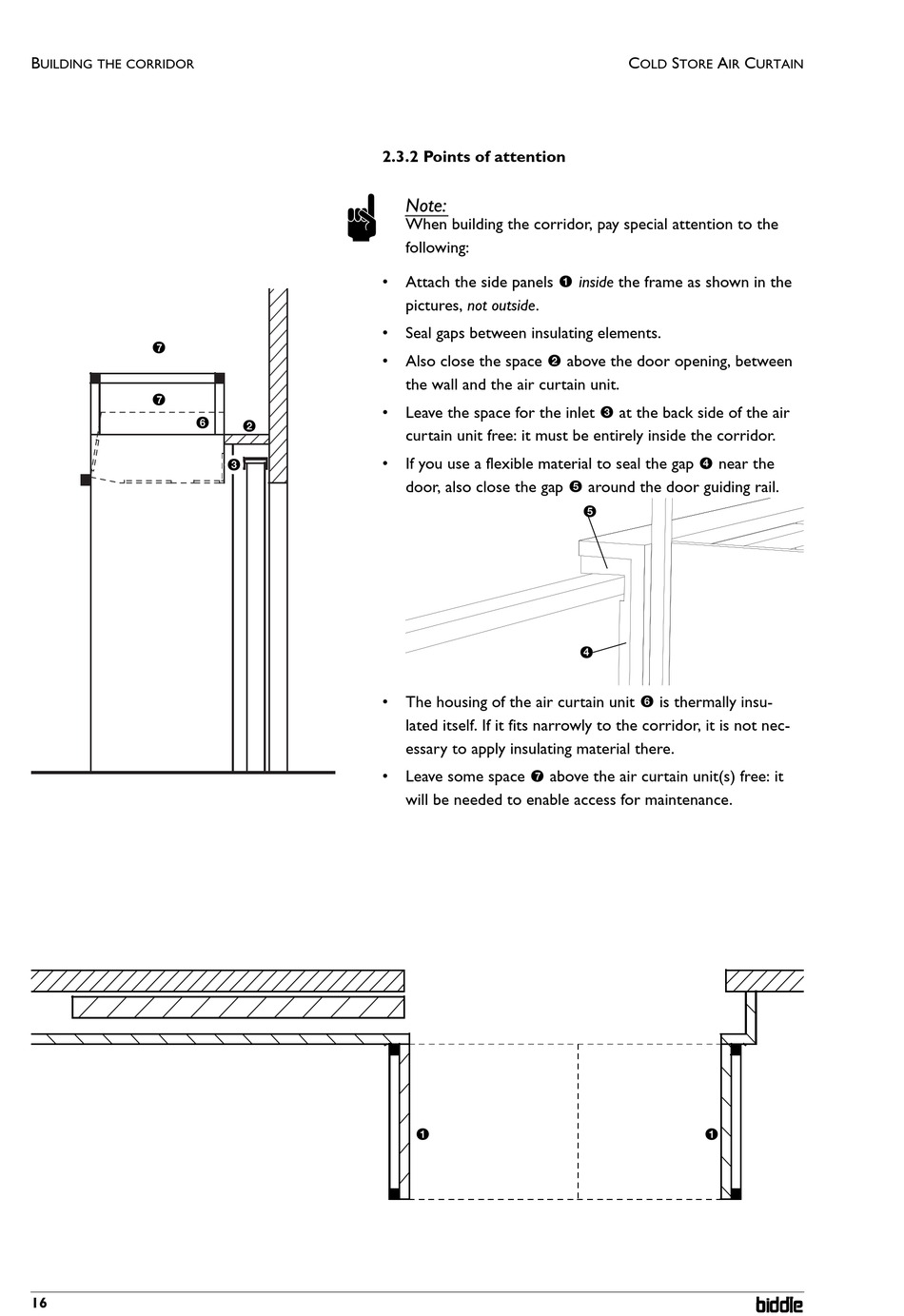

2.3.2 Points of attention

n
•
•
•
•
2
•
3
•
•
Note:
When building the corridor, pay special attention to the
following:
Attach the side panels 1 inside the frame as shown in the
pictures, not outside.
Seal gaps between insulating elements.
Also close the space 2 above the door opening, between
the wall and the air curtain unit.
Leave the space for the inlet 3 at the back side of the air
curtain unit free: it must be entirely inside the corridor.
If you use a flexible material to seal the gap 4 near the
door, also close the gap 5 around the door guiding rail.
The housing of the air curtain unit 6 is thermally insu-
lated itself. If it fits narrowly to the corridor, it is not nec-
essary to apply insulating material there.
Leave some space 7 above the air curtain unit(s) free: it
will be needed to enable access for maintenance.
