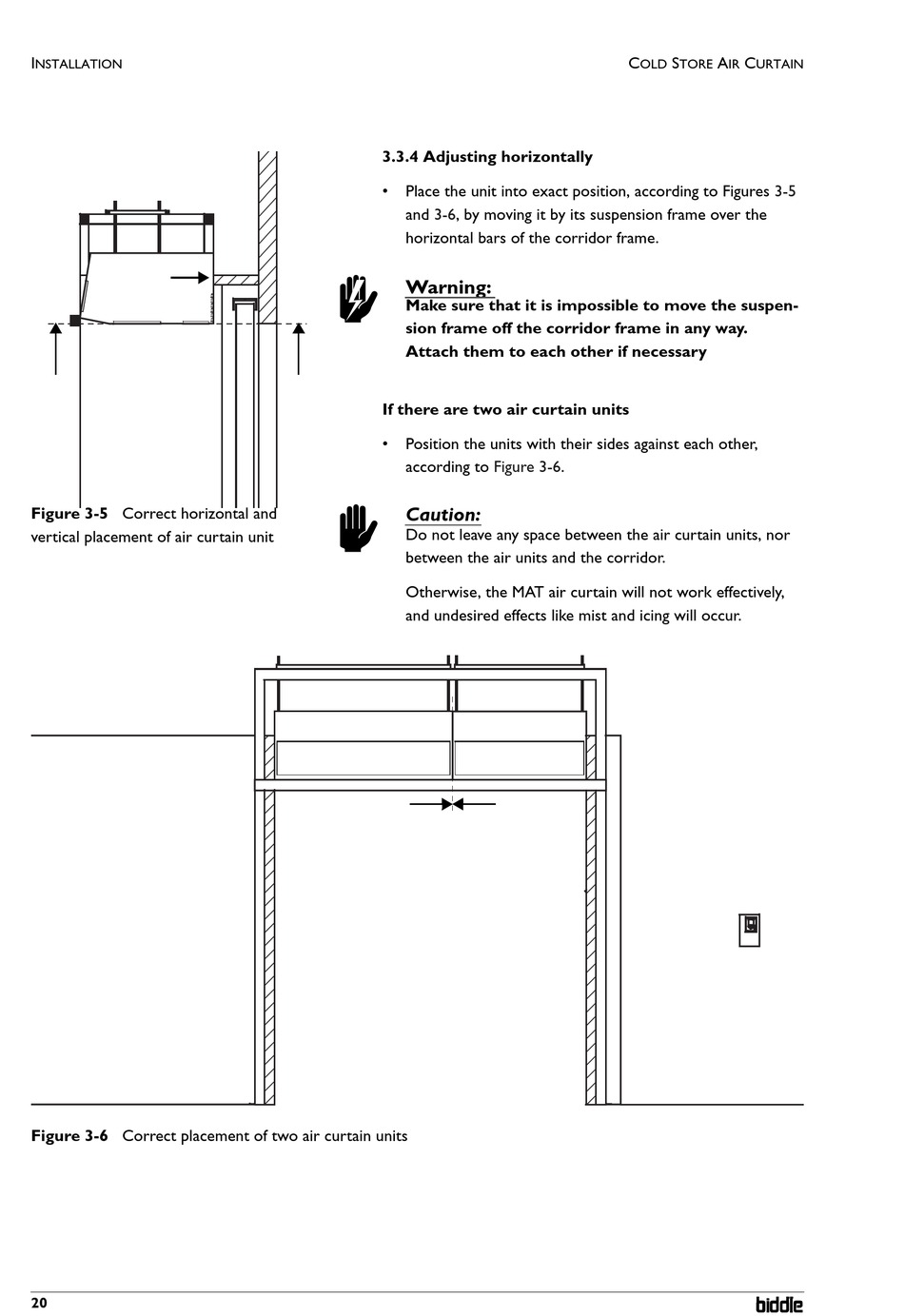

Figure 3-5 Correct horizontal and
vertical placement of air curtain unit
Figure 3-6 Correct placement of two air curtain units
20

3.3.4 Adjusting horizontally

• Place the unit into exact position, according to Figures
and 3-6, by moving it by its suspension frame over the
horizontal bars of the corridor frame.
w
Warning:
Make sure that it is impossible to move the suspen-
sion frame off the corridor frame in any way.
Attach them to each other if necessary
If there are two air curtain units
• Position the units with their sides against each other,
according to Figure
c
Caution:
Do not leave any space between the air curtain units, nor
between the air units and the corridor.
Otherwise, the MAT air curtain will not work effectively,
and undesired effects like mist and icing will occur.
C S
OLD TORE
3-6.
