I
NSTALLATION

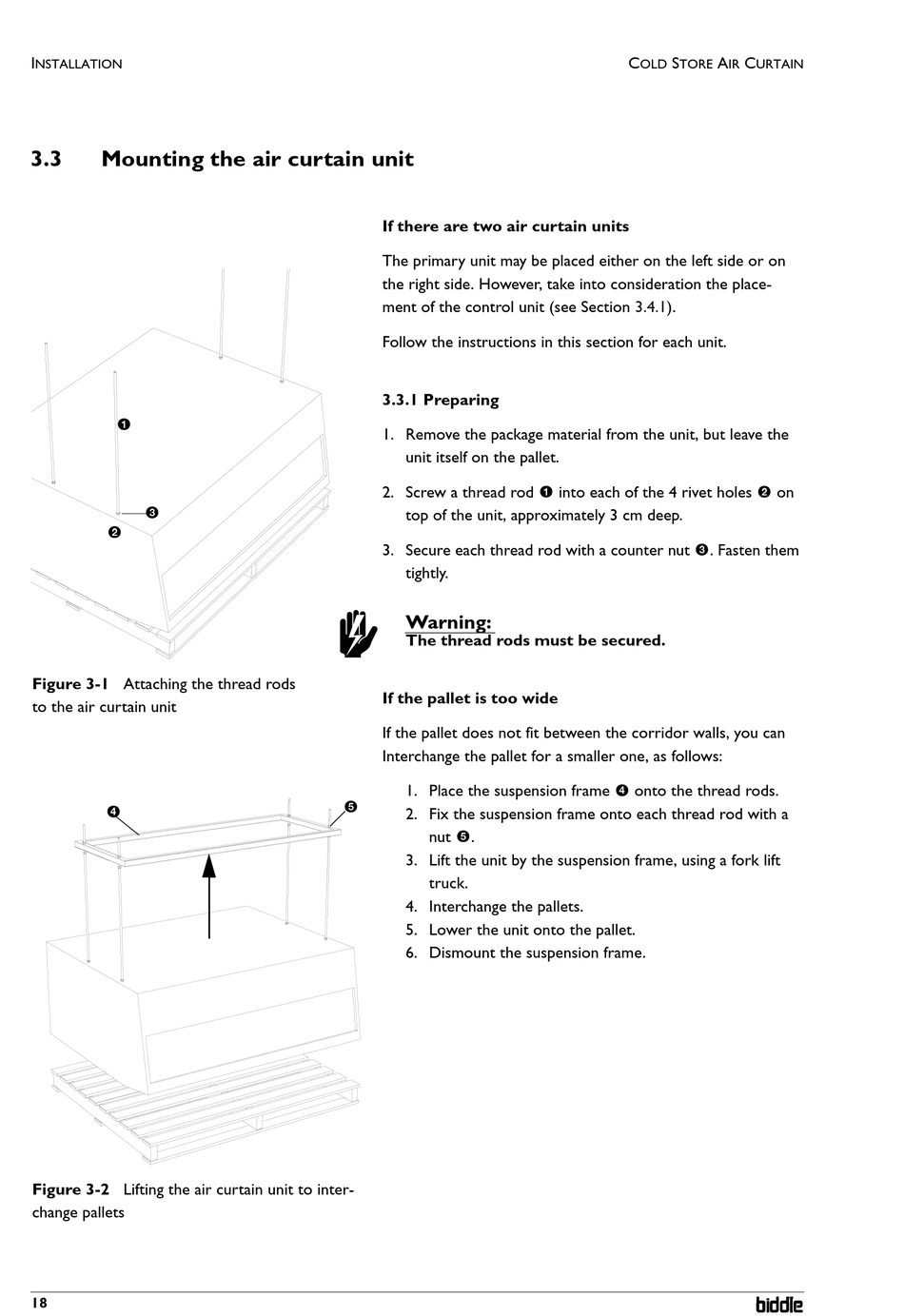

3.3

Mounting the air curtain unit

1
3
2
Figure 3-1 Attaching the thread rods
to the air curtain unit
4
Figure 3-2 Lifting the air curtain unit to inter-
change pallets
18
If there are two air curtain units
The primary unit may be placed either on the left side or on
the right side. However, take into consideration the place-
ment of the control unit (see Section 3.4.1).
Follow the instructions in this section for each unit.

3.3.1 Preparing

1. Remove the package material from the unit, but leave the
unit itself on the pallet.
2. Screw a thread rod 1 into each of the 4 rivet holes 2 on
top of the unit, approximately 3 cm deep.
3. Secure each thread rod with a counter nut 3. Fasten them
tightly.
w
Warning:
The thread rods must be secured.
If the pallet is too wide
If the pallet does not fit between the corridor walls, you can
Interchange the pallet for a smaller one, as follows:
1. Place the suspension frame 4 onto the thread rods.
5
2. Fix the suspension frame onto each thread rod with a
nut 5.
3. Lift the unit by the suspension frame, using a fork lift
truck.
4. Interchange the pallets.
5. Lower the unit onto the pallet.
6. Dismount the suspension frame.
C
S
A
C
OLD
TORE
IR
URTAIN
