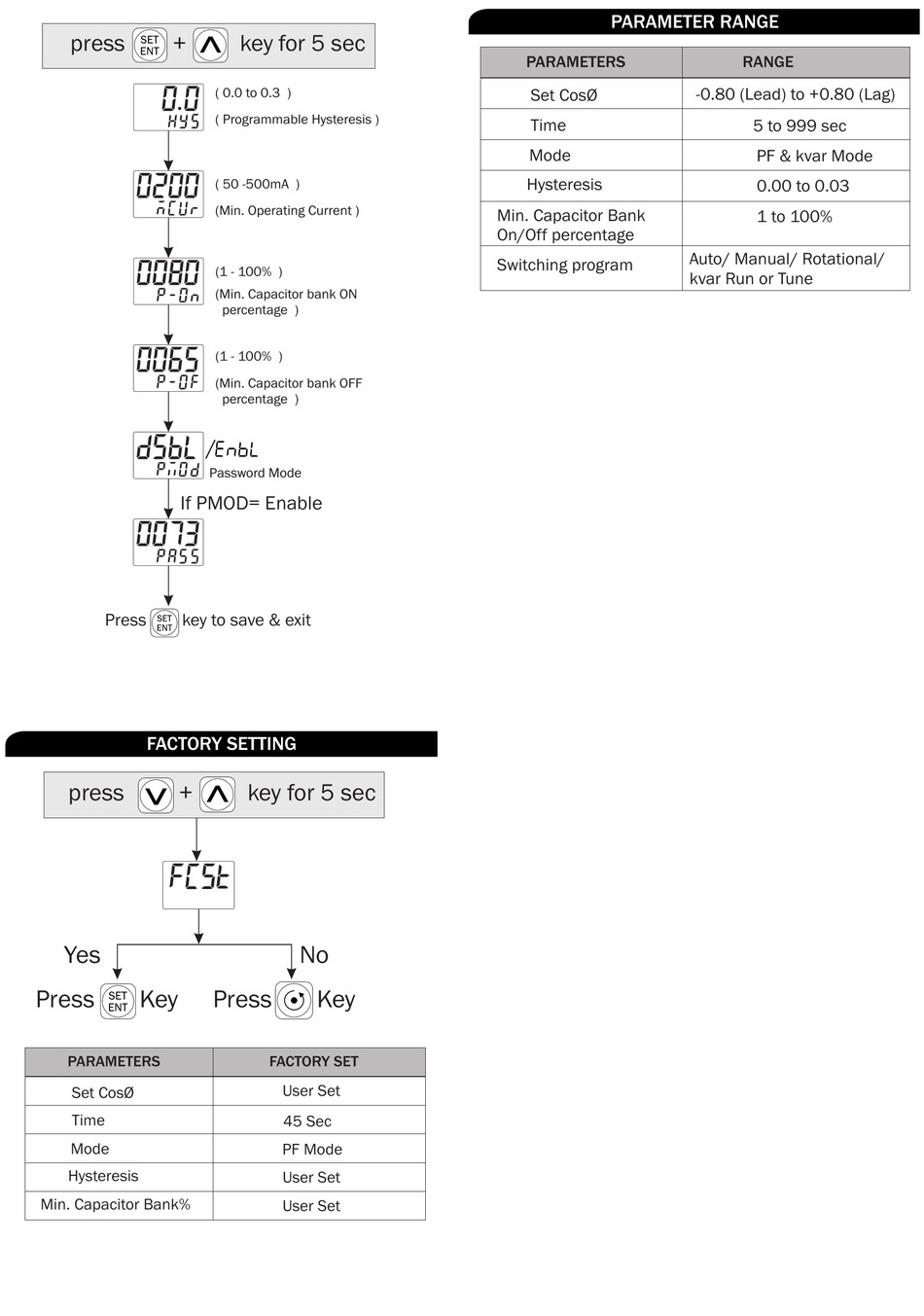

Parameter Range; Factory Setting - MULTISPAN APFC-1414 Manual

press +
.
/
Password Mode
If PMOD= Enable
Press key to save & exit

FACTORY SETTING

press +
Yes
Press Key
PARAMETERS
Set CosØ
Time
Mode
Hysteresis
Min. Capacitor Bank%
key for 5 sec
( 0.0 to 0.3 )
( Programmable Hysteresis )
( 50 -500mA )
(Min. Operating Current )
(1 - 100% )
(Min. Capacitor bank ON
percentage )
(1 - 100% )
(Min. Capacitor bank OFF
percentage )
ENBL
key for 5 sec
No
Press Key
FACTORY SET
User Set
45 Sec
PF Mode
User Set
User Set

PARAMETER RANGE

PARAMETERS
Set CosØ
Time
Mode
Hysteresis
Min. Capacitor Bank
On/Off percentage
Switching program
RANGE
-0.80 (Lead) to +0.80 (Lag)
5 to 999 sec
PF & kvar Mode
0.00 to 0.03
1 to 100%
Auto/ Manual/ Rotational/
kvar Run or Tune
