User Manual
APFC 112
Multispan Control Instruments Pvt Ltd
72/B, Phase 1, GIDC Estate, Vatva, Ahmedabad-382445, Gujarat, India.
service@multispanindia.com
www.multispanindia.com

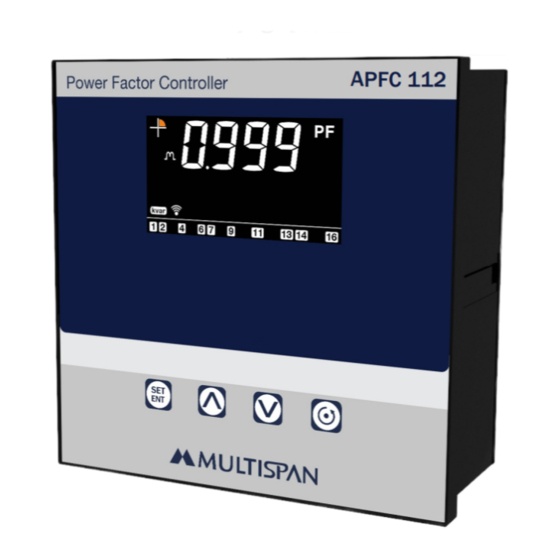

APFC 112
+91-9978991482

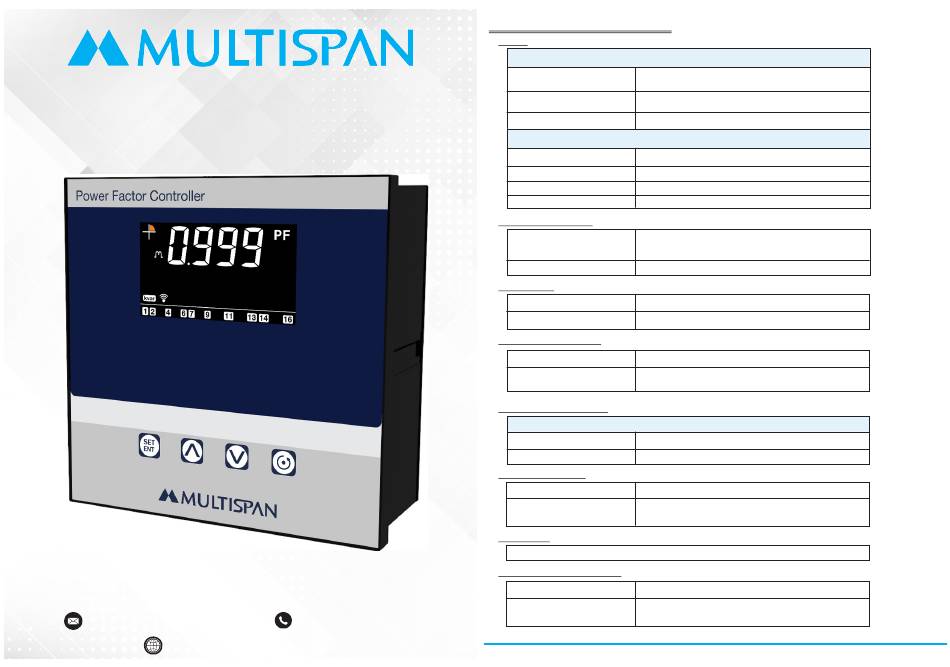

Technical Specification
INPUT:
Voltage AC
Input voltage AC
300 to 520V AC (L - L)
Burden
< 8 VA
Frequency
50/60 Hz
Current AC(1 CT Sensing)
Primary CT Ratio
5 to 9999 Amp Selectable
Secondary Current Ac
0.01 To 5.0 Amp (Without CT)
Burden
< 0.4 VA
Up to 6A Continuous
Overload
DISPLAY, KEY & LED:
Upper: 4 Digit,7 seg,0.60"
Display
Lower: 7 Digit,7 seg,0.38"
Key
SET/ENT, INC, DEC, EXIT
DIMENSION:
144 (H) x 144 (W) x 70 (D) mm
Size
137 (H) x 137 (W) mm
Panel Cutout
CONTROLLING RANGE:
Operating Mode
Kvar / Intel / Manual
Programmable
0 to 25 KVAr
Hysteresis
OUTPUT SPECIFICATION:
12 Stage Capacitor Relay
Relay Type
(NO-C)
Rating
7A, 250V AC
AUXILIARY SUPPLY:
Supply voltage
300V to 520V AC (L-L)
Power consumption
Approximately 8VA
(VA RATING)
ACCURACY:
Class 1.0 (Standard)
ENVIRONMENT CONDITION:
Operating Temp.
0°C to 55°C
UP to 95% RH
Relative Humidity
(non-condensing)
Page 2
