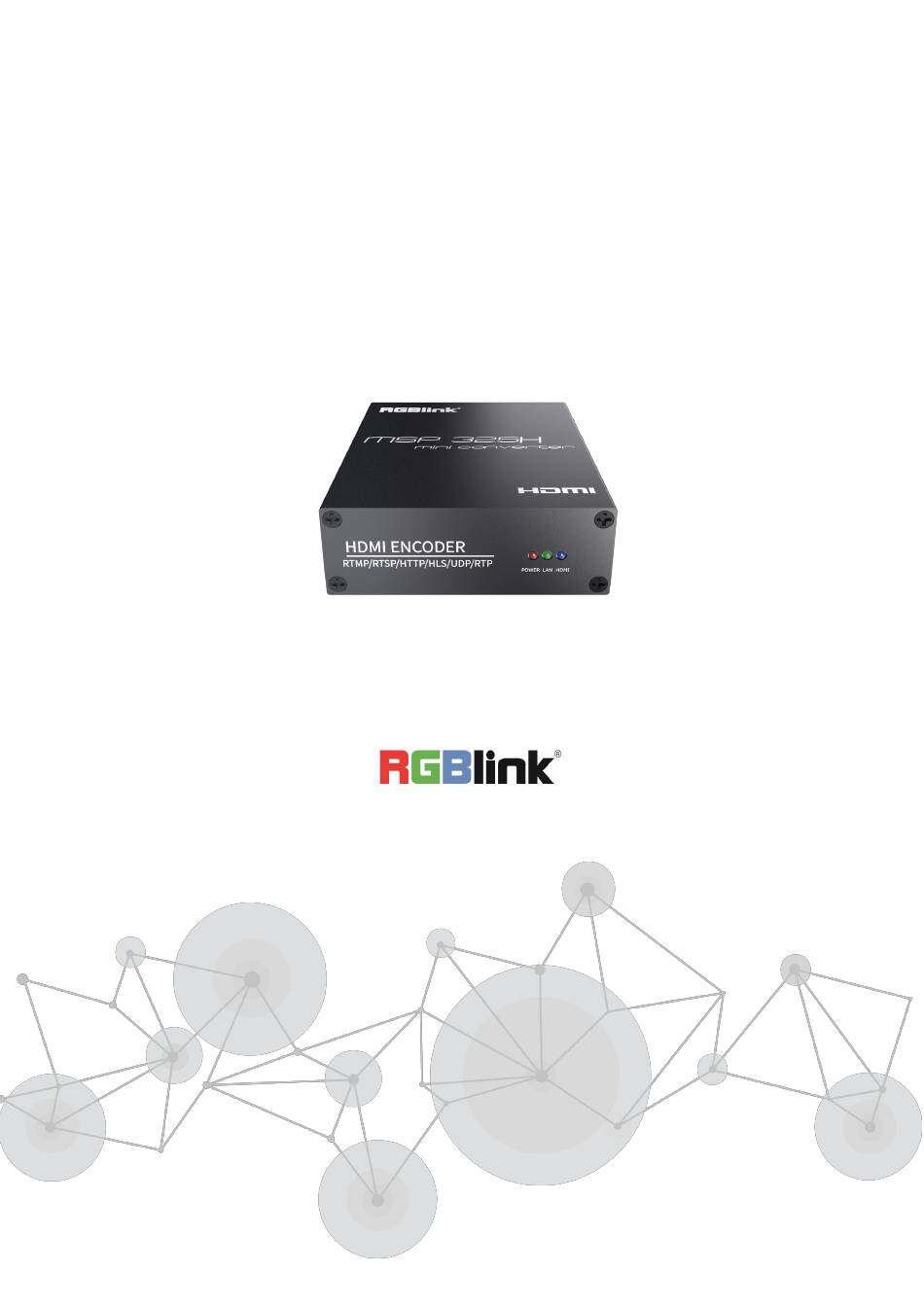

- Page 1 MSP 325H Quick Start...
-
Page 2: Table Of Contents
5.2 Play Source on NVR..........................11 5.3 Remote RMTP Connection........................12 6. Trouble Shooting............................13 6.1 Cannot login in the WEB UI.........................13 6.2 Cannot Play Video on VLC........................14 Contact Information..............................16 © Xiamen RGBlink Science & Technology Co., Ltd. Ph: +86 592 5771197 | support@rgblink.com www.rgblink.com... -
Page 3: User Your Product
There will pop up and a window asking for user name (admin) and password (admin). 1.2 Check Status Change the language of WEB UI to English if needed. Check the main stream address as in the red frame. © Xiamen RGBlink Science & Technology Co., Ltd. Ph: +86 592 5771197 | support@rgblink.com... -
Page 4: Preview Video
Or play video on VLC Media Player. When there are valid input signal captured, open up VLC Player(download： http://www.videolan.org/),choose media →Open Network Stream. 【 】 Type in the TS URLfrom Main Stream © Xiamen RGBlink Science & Technology Co., Ltd. Ph: +86 592 5771197 | support@rgblink.com www.rgblink.com... -
Page 5: Encoder Setting
FPS:Frame Per Second, numbers of picture output each second GOP:gap of key frame, how many pictures between each two key frame Bitrate:numbers of bits processed in each second. © Xiamen RGBlink Science & Technology Co., Ltd. Ph: +86 592 5771197 | support@rgblink.com... -
Page 6: Audio Setting
→Type in each parameter’s value→click Apply 【 】 【 】 2.3 Advanced Click Encoder → Advanced →Type in each parameter’s value→click Apply 【 】 【 】 © Xiamen RGBlink Science & Technology Co., Ltd. Ph: +86 592 5771197 | support@rgblink.com www.rgblink.com... -
Page 7: Osd
3. OSD 3.1 OSD Streaming Setting Click → Main Stream】→Type in each parameter’s value→click Apply 【 】 【 © Xiamen RGBlink Science & Technology Co., Ltd. Ph: +86 592 5771197 | support@rgblink.com www.rgblink.com... -
Page 8: Logo Upload
→select desired LOGO pic from local→click Upload 【 】 4. System 4.1 Network Click 【 System 】 → 【 Network 】 →Type in parameters→click Apply © Xiamen RGBlink Science & Technology Co., Ltd. Ph: +86 592 5771197 | support@rgblink.com www.rgblink.com... -
Page 9: Password
【 】 【 】 4.3 Serial to TCP Click System → Serial to TCP →choose Baud Rate and TCP Port→click Apply 【 】 【 】 © Xiamen RGBlink Science & Technology Co., Ltd. Ph: +86 592 5771197 | support@rgblink.com www.rgblink.com... -
Page 10: Upgrade
4.4 Upgrade Click System → Upgrade →choose upgrade file.up.rar→click Upload 【 】 【 】 4.5 Reset Click System → Reset →click Reset 【 】 【 】 © Xiamen RGBlink Science & Technology Co., Ltd. Ph: +86 592 5771197 | support@rgblink.com www.rgblink.com... -
Page 11: Reboot
After Enable Multicast, a warning window pop up. Reboot the Encoder is required. After rebooting the device, a multicast URL is shown in the Status. Copy the multicast URL and paste on VLC Player of each each user. © Xiamen RGBlink Science & Technology Co., Ltd. Ph: +86 592 5771197 | support@rgblink.com... -
Page 12: Play Source On Nvr
2. If the audio from the Encoder need to be recognizable on NVR, the AUDIO setting shall be done. After AUDIO Setting, reboot the Encoder is required. © Xiamen RGBlink Science & Technology Co., Ltd. Ph: +86 592 5771197 | support@rgblink.com... -
Page 13: Remote Rmtp Connection
RTMP address plus slashes, and live code Such as RTMP address is: RTMP: / / video mudu. TV/live broadcast code for: abcdef combination: rtmp://video.mudu.tv/live/abcdef © Xiamen RGBlink Science & Technology Co., Ltd. Ph: +86 592 5771197 | support@rgblink.com... -
Page 14: Trouble Shooting
Step 5. Choose Properties after right clicking on the network name. Step 6. Select the Internet Protocol Version 4 (TCP/IPv4), then click Properties. © Xiamen RGBlink Science & Technology Co., Ltd. Ph: +86 592 5771197 | support@rgblink.com www.rgblink.com... -
Page 15: Cannot Play Video On Vlc
If VLC Player does not play video after TS URL is typed in, check the Status of Encoder and see if there are video frames collected. © Xiamen RGBlink Science & Technology Co., Ltd. Ph: +86 592 5771197 | support@rgblink.com... - Page 16 If the signal collected is 0, please check the connection between input device and Encoder and check the HDMI indicator is lit up make sure they are correctly connected, and make sure the input source is supported on Encoder. © Xiamen RGBlink Science & Technology Co., Ltd. Ph: +86 592 5771197 | support@rgblink.com...
-
Page 17: Contact Information
All video products are designed and tested to the highest quality standard and backed by full 1 years parts and labor warranty. Warranties are effective upon delivery date to customer and are non-transferable. RGBlink warranties are only valid to the original purchase/owner. Warranty related repairs include parts and labor, but do not include faults resulting from user negligence, special modification, lighting strikes, abuse(drop/crush), and/or other unusual damages.
