- Page 1 User Manual VT07-B22L/ VT07-B23L/ VT10-B21L Version: 1.0 Due to the regular upgrades of systems and products, ZKTeco could not guarantee exact consistency between the actual product and the written information in this manual.
- Page 2 Remark Please follow the user manual for correct installation and testing. If there is any doubt please call our tech-supporting and customer center. Our company applies ourselves to reformation and innovation of our products. No extra notice for any change. The illustration shown here is only for reference.
-
Page 3: Table Of Contents
CATALOG Product Features ............1 Technical Parameters ............1 Pictures ................2 Operations ..............4 Dial ................5 Panel ................6 Message ..............7 Security ............... 8 Concierge ..............12 Monitor ..............13 Setup ................ 13 Web Settings ..............20 System Configuration .......... -
Page 4: Product Features
Smart: Support smart home extension by RS485 communication (Optional). Operating system: Linux Technical Parameters Voltage: DC 12V POE (VT07-B22L/VT07-B23L/VT10-B21L) Rated power: 9W 12W (VT7-B22L, Switch (with Dual RJ45 Ports) ) Standby power consumption: 1.5W 3.0W (VT7-B22L, Switch (with Dual RJ45 Ports) ) Display screen: 7''/10.1''... -
Page 5: Pictures

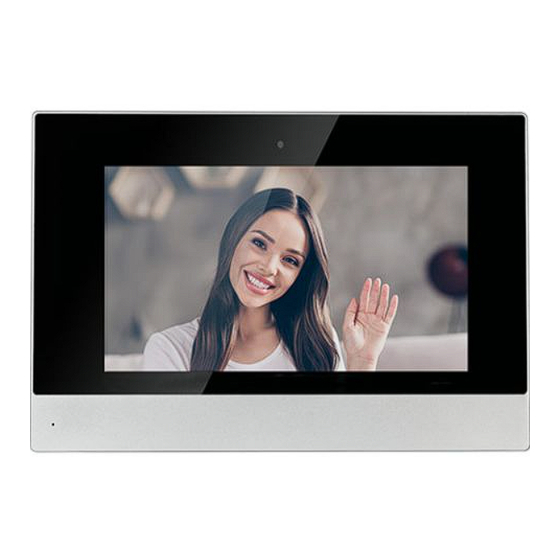

Pictures Model: VT10-B21L Speaker 10.1'' capacitive touch screen Microphone Model: VT07-C23L 7'' capacitive touch screen Speaker Handsfree Reserved Calling management center Monitoring Unlocking Microphone... - Page 6 Model: VT07-C22L 7'' capacitive touch screen Speaker Microphone Indoor monitor doesn’t support the connection with external camera, audio extension, Wi-FiI, Bluetooth, external USB and TF storage card. Standard indoor monitor doesn’t include RS485 communication function. Please contact the supplier if you have such requirement.
-
Page 7: Operations
Operations Main menu: Dial, Panel, Message, Security, Concierge, Monitor, Setup. Instructions of status bar and shortcut key: Call logs: Click to check call logs. Phone Book: Click to check and call contacts. SOS: Click to make a direct emergency call to Master Station. Lift control: Click to summon the elevator to go up or down. -
Page 8: Dial
Dial Click “Dial” icon, the system will enter the following interface: Call Resident Input 1-3 digits building No. +“Building”+ 2-digit Unit No. + “Riser” +4-digit room No., then click icon to call. The system will enter into the following interface: When the call is answered, the system will enter into call state: If there is a camera, the caller’s image will be displayed on the screen;... -
Page 9: Panel
Call Master Station Click “ ” icon to call master station, the system will call master station No.1- No.5 successively. If the master station cannot be searched or call failed, the system will automatically call next master station. When the master station answers, it will ring and stop calling next one. -
Page 10: Message
The door station can be monitored here. To switch the type of door station, please follow the operations as below: 1. Click icon to select the type of door station Click icon Click “ ” to start monitoring; 2. Click icon Click “... -
Page 11: Security
Note: Indoor monitor can only receive the message sent by the management software installed on the computer which is usually located at guard center. Up to 64 records can be received in SMS. 4. Security Click “Security” icon on the main interface, the system will enter the following interface: 4.1 ON/OFF Click “ON/OFF”... - Page 12 4.1.1 ON Click “Out”, “Home”, or “Sleep” icon to activate the alarm sensors, the icon on the main interface will light up with a beep and stay lit. 4.1.2 OFF During delay time of the alarm, click “OFF” icon, the system will beep to disable the alarm.
- Page 13 4.2.2 Mode Click Mode, it will show the following interface. In this interface, you can set mode as: 3C, NO, NC or BELL. 4.2.3 Delay Time It refers to the delay time of giving an alarm. Click Delay setting, it will show the following interface with selections: 0s, 5s, 15s, 20s, 25s, 40s or 60s as the desired delay time.
- Page 14 4.3 Scene Click “Scene” icon, the system will enter into the following interface: refers to Alarm ON, refers to Alarm OFF. To set the sensor of alarm stations, you can click the corresponding station with icon. Click "Activation Time" to select the corresponding time. The options of activation time include NONE, 30s, 40s, 60s, 100s and 300s.
-
Page 15: Concierge
You can set the new system password with 1-16 digits (the default password is 123456). System password is used for system settings. Concierge Click “Concierge” icon on the main interface, the system will enter the following interface: Click “ ” icon to call master station, the system will call master station No.1- No.5 successively. -
Page 16: Monitor
6. Monitor Click “Monitor” icon on the main interface, the system will enter the following interface: The IP camera can be monitored here. To switch the type of IP camera, please follow the operations as below: Click icon to select the camera Click icon Click “... - Page 17 7.2 Sounds Click “Sounds” icon, the system will enter into the following interface: “Auto Answer”, “Ring Vol”, “Intercom Vol” and "Ringtone" can be set. 7.3 Date & Time Click “Date & Time” icon, the system will enter into the following interface: This interface can set “Auto”, “Date”, “Time Zone”, “12H/24H”, “Date Format”...
- Page 18 The system language can be switched. 7.5 Devices Click “Devices” icon, the system will enter into the following interface: The device information can be viewed. 7.6 Version Click “Version” icon, the system will enter into the following interface:...
- Page 19 Version information includnig “FW”, “UI”, “LAN IP”, “WiFi IP” and “MAC” can be viewed. 7.7 More Click “More” icon, then input 1-16 digits password (the default password is 123456) to make the following settings: 7.7.1 Network Click “Network” icon, the system will enter into the following interface:...
- Page 20 After using the DHCP, the router will automatically distribute IP address. Other settings are the same as the ones of Smart Life APP. IP: Static IP address. Mask: The default Mask address is 255.255.255.0. Normally, it can keep unchanged. To modify it, click the setting box twice, a keypad will pop up for entering new Mask address.
- Page 21 Warning: Please revise Sync No. (6 digits) as soon as possible after you read the user manual. The Sync No. of all indoor monitors in one household must be the same. Input the 3-digit Building No. such as 001, and then click “OK” to finish the building No.
- Page 22 To confirm the operation, click OK.
-
Page 23: Web Settings
WEB SETTING Connect the indoor monitor and computer by network switch. Input the indoor monitor’s IP address in the browser, then input user name and password (the default user name is “admin”, the password is “123456") to enter into the web setting interface. Main page is used for showing firmware version and the status of SIP registration. - Page 24 2. RoomNo RoomNo page is used for setting up connection with other devices. Build: number of the building; Unit: number of the unit; Room: number of the room; Device: the numbering system for same-room number devices (Indoor Monitor 0-9; Outdoor Station 1-9); Sync: type in same numbers to make same-room number Indoor Monitors ring together;...
- Page 25 Realm: fill server address and port, the format: server@IPaddress:port; Outbound: if you don't have outbound server, leave it blank; User & Password: account and password of SIP; Timeout: maximum call duration; Voice Multicast: fill voice gateway to receive voice broadcast. 4.
- Page 26 5. Others Others page is used for reboot. Reboot: click to reboot the device. 6. Logout Logout page is used for signing off. User Logout: click to logout the webpage. After that, you can use other accounts to login.
-
Page 27: System Configuration
System Configuration... -
Page 28: System Diagram
System Diagram +12V GND +12V GND 485+ 485 GND AL1 AL2 AL4 AL5 AL6 AL7 AL8 (Standard) +12V GND 485+ 485- +12V GND Siren/Alarm AL1 AL2 AL4 AL5 (VT07-B22L, Switch (with Dual RJ45 Ports) ) Power Power input interface connects with 12V power adapter. +12V DC 12V Power... - Page 29 Network Connect with outdoor panel, indoor monitor or other network equipment by network switch. When indoor monitor has POE function, the interface can supply power by connecting with POE network switch. If network interface has 12V power supply, pin No. 4 and 5 of RJ45 interface should connect with +12 of power interface, and pin No.
-
Page 30: Installation
Installation Model: VT10-B21L Built-in box Screws Size: 270*168*15mm Model: VT07-C23L Built-in box Screws Size: 235*145*19.5mm... - Page 31 Model: VT07-C22L Built-in box Size: 221.4*151.4*16.5mm Installation Instructions: Suggestion During the installation, the camera should be 1450 〜 1550mm above the Wall ground. The camera tether for photographing human face 400~500mm should be the top priority.
-
Page 32: Troubleshooting
Troubleshooting The indoor monitor cannot start up or power off automatically. Check whether it has power-failure, and power it on again. The indoor monitor display screen is too dim. Check whether the brightness and contrast settings of screen are correct. ... -
Page 33: Safety Instructions
Safety Instructions In order to protect you and others from harm or your device from damage, please read the following information before using the device. Do not install the device in the following places: Do not install the device in high-temperature and moist environment or the area close ... - Page 34 ZKTeco Industrial Park, No. 32, Industrial Road, Tangxia Town, Dongguan, China. Phone : +86 769 - 82109991 : +86 755 - 89602394 www.zkteco.com Copyright © 2024 ZKTECO CO., LTD. All Rights Reserved.
