- Page 1 User Manual VDP03-B3 Version: 1.0 Due to the regular upgrades of systems and products, ZKTeco could not guarantee exact consistency between the actual product and the written information in this manual.
-
Page 2: Product Introduction

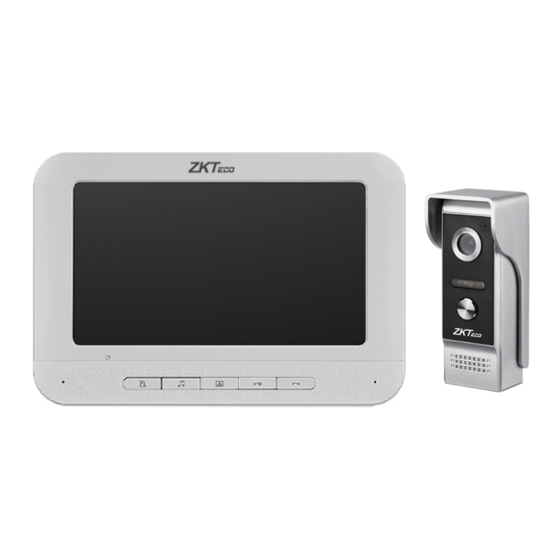

1 Overview 1.1 Product Introduction The product is a wired color video intercom doorbell system. The system is composed of two parts, outdoor unit and indoor unit. The two units are connected with four-core cables. 15V DC is used for the indoor unit to realize the functions such as doorbell calling, monitor, intercommunication, and remote unlocking. -
Page 3: Outdoor Unit
2 Outdoor Unit 2.1 Product Function Color LCD Microphone Mute Talk Adjust the volume of music Unlock & replace the ring tone Monitor Intercom volume adjustment Connects with an outdoor unit Connects with next indoor unit DC 15V power interface... - Page 4 2.2 Function of Indoor Unit 2.2.1 Indoor Unit Ringtone Setting Mute Setting In the standby mode of the indoor unit, press the button " " first to turn on the screen, and then press the button " " to turn off the bell and intercom, making no effects on image display.
- Page 5 button " " for the first time, and it will be disabled if the button is pressed again. The screen will be off automatically in 30 seconds if the calling is not answered. In the intercom mode, the indoor user may press the button " " to open the door.
- Page 6 Make A Mark and Drill a Hole on the Wall Make a mark and drill a hole after finishing location on the wall. Electric drill Bore diameter: about 1.5cm Fix the Indoor Unit Hanging Board As shown in the figure: Take out the hanging board; open the package of screws to take out the rubber plug and screws.
- Page 7 Fix the Indoor Unit 1. Take out the indoor unit and power supply; 2. Insert the power plug and 5-core connector; 3. Horizontally hang the indoor unit on the fixed hanging board. Hanging board buckle 15V power supply Indoor unit 2.4 Pameters of Indoor Unit Screen Color HD TFT LCD...
-
Page 8: Function Of Outdoor Unit
3 Outdoor Unit 3.1 Product Introduction Microphone Camera Infrared night vision lamp 4P indoor unit connector socket Call button 2P electronic control lock connector socket Speaker Microphone Infrared night vision lamp 2P electronic control lock Camera connector socket Call button 4P indoor unit connector socket Speaker... -
Page 9: Outdoor Unit Installation
Rain Proof Equipped with a rain cover, Ingress protection – level 4, for outdoor uses. Outdoor Unit Unlocking With 12V unlocking voltage signals, it can be directly connected with a 12V electronic control lock. If any other type of electronic control locks is used, access control power supply with (control +, control-) 12V terminal control shall be available. - Page 10 Make A Mark and Drill a Hole on the Wall Make a mark and drill a hole after finishing location on the wall. Electric drill Bore diameter: about 1.5cm Fix the Indoor Unit Hanging Board As shown in the figure: Take out the rain cover; open the package of screws to take out the rubber plug and screws.
- Page 11 Fix the Outdoor Unit Take out the outdoor unit; Connect the 4-core connector and 2-core connecting connector; Put the outdoor unit body behind the rain cover and fix the bottom with a hexagonal screw. Outdoor unit rain cover Outdoor unit Completion of Installation 4-core wire 4-core wire...
- Page 12 3.4 Parameters of Outdoor Unit HD CMOS camera Camera Rain cover With a rain cover Indoor unit power supply Power supply Standby: ≤1W, Operating: ≤2W Power Wiring terminal 4PX2.54 Unlocking terminal 2PX2.54 -20°C-60°C Operating temperature Night vision Infrared or white light night vision lamp Unlocking voltage DC12V -11-...
-
Page 13: Wiring Requirements
4 Wiring 4.1 Wiring Requirements Intercom Wiring Requirements Based on various distances, the wiring and wire diameter requirements are different. The table below lists the wire requirements for different distances: Colors and functions of wiring terminals: 1-30m RVV4*0.30 Yellow --- Video Blue --- Audio 31-50m RVV4*0.50... -
Page 14: Wiring Diagram
4.1 Wiring Diagram One Outdoor Unit Connects with One or More Indoor Units When it connects with 1-4 indoor units,series connection is made to connect these screens. Connect with next indoor unit Indoor Unit Outdoor Unit Electronic control lock 15V power supply VIDEO--- Yellow AUDIO---... -
Page 15: Troubleshooting
5 Troubleshooting Failure Failure Failure Elimination Type Description Inspect whether the connection wires of various colors are properly connected and whether the No intercom sound indoor unit can hear the sounds from the outdoor unit. 1. Whether there is ringtone during calling? The mainboard or microphone of the outdoor unit Anyone at the indoor needs to be repaired or replaced if no ringtone... - Page 16 Failure Failure Failure Elimination Type Description 1. Inspect whether the indoor unit intercom indicator is on. If the intercom indicator is on, it means that the display screen or driver board has a failure and the board needs to be repaired or replaced. Black screen 2.
- Page 17 Failure Failure Failure Elimination Type Description 1. Inspect whether the power source is normal. Press the monitor button of the indoor unit to see whether the screen is normal. The power source is normal if the screen is normal. If the screen is off, use another power source to test it.
- Page 18 6 Instructions When cleaning the device, power it off first and use soft and dry cloth to wipe it; Don't use benzene, diluent or organic solvent such as gasoline to wipe it,for these may damage the shell or discolor the device and keys; The device shall be installed at a secure place with good ventilation, dry air and without direct sunlight, high-intensity magnetic field or dust;...
- Page 19 ZKTeco Industrial Park, No. 32, Industrial Road, Tangxia Town, Dongguan, China. Phone : +86 769 - 82109991 : +86 755 - 89602394 www.zkteco.com Copyright © 2022 ZKTECO CO., LTD. All Rights Reserved.
