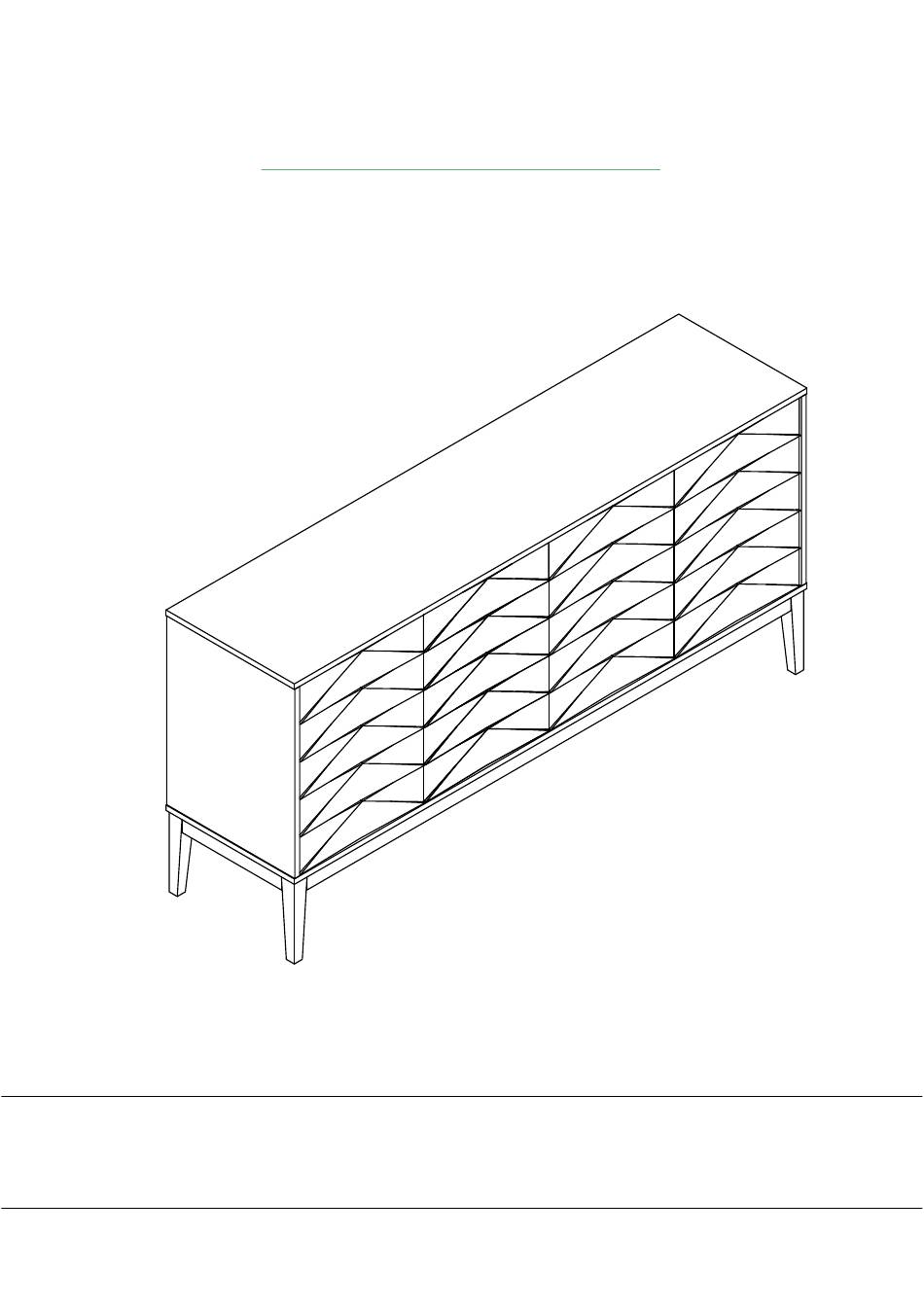

- Page 1 HULALA SBSD0911 ITEM NO. NOTE: This brochure contains IMPORTANT safty info. Please read and keep for future reference. 01/27...
- Page 2 MAINTAINANCE AND WARNING 1.Keep furniture away from heat sources. 2.Do not clean furniture with harsh cleaner or polishes.Do not use detergents,solvents,abrasives,spray packs or leather cleaner. Use non-color mild soap with warm water to clean spills(Mix 1:10 soap to water). 3.Do not place furniture under direct sunlight,material will possibly fade over time.
- Page 3 2PERSONEN 03/27...
-
Page 4: Parts List
PARTS LIST 04/27... -
Page 5: Hardware List
HARDWARE LIST φ15*11mm φ6*35mm M7*50mm M3.5*14mm φ8*30mm M6*50mm φ20 M6*30mm M4*35 φ8*30mm TOOL LIST 05/27... - Page 6 HARDWARE SPARE LIST φ15*11mm φ6*35mm M7*50mm M4*35 M3.5*14 M6*30mm φ20 φ8*30mm M6*50mm 06/27...
- Page 7 ASSEMBLY INSTRUCTIONS STEP-1 1.Prepare for part A. Align the holes in part A, insert wooden dowel #4 by hand, tighten with screwdriver #19 tighten #1 。 #1x10 φ8*30mm φ6*35mm 07/27...
- Page 8 ASSEMBLY INSTRUCTIONS STEP-2 1.picture shows.Use bolt #5 to attach rebound device #13 to top panel A ， tighten bolts with screwdriver #19. M3.5*14 08/27...
- Page 9 ASSEMBLY INSTRUCTIONS STEP-3 1.Connect the part A with part C&D&E&F. align the hole in the part C&D&E&F,insert the bolt #1 and wooden dowel #4 in part A into part C&D&E&F. insert cam bolt #2 into the corresponding hole of side panel C&D&E&F,and tighten the nuts #2 with a screwdriver #19.
- Page 10 ASSEMBLY INSTRUCTIONS STEP-4 1.slide in the part J,I into the groove in part D,E and E,F and F,E,and C,E . make sure they are also in groove in part A. 10/27...
- Page 11 ASSEMBLY INSTRUCTIONS STEP-5 Insert the wooden dowel #4 into the part C&D&E&F as the picture show.Connect the part B the pre-assembled unit in step 4. Then align the holes in part B,Insert screw #3 and push it down so that it connects to parts C&D&E&F.
- Page 12 ASSEMBLY INSTRUCTIONS STEP-6 1.Align the holes of part M, insert the bolt #7, and bolt the middle foot O into the bolt #7 . M6*30mm 12/27...
- Page 13 ASSEMBLY INSTRUCTIONS STEP-7 1.connect the leg frame to the cabinet.Attach the leg frame to the pre-assembled unit in step 5 with a screw #6 and tighten #6 with a allen key #18 . M6*50mm 13/27...
- Page 14 ASSEMBLY INSTRUCTIONS STEP-8 1.install leg N on of part M , ensure the corresponding holes are aligned and fix with screw #6, then tighten the screw with an Allen key #18. M6*50mm 14/27...
- Page 15 ASSEMBLY INSTRUCTIONS STEP-9 1. Insert hardware #11 into part I&J as shown, screw in screw #5 using screwdriver # and tighten fully. #11x24 J&I J&I #5x24 #11X24 15/27...
- Page 16 ASSEMBLY INSTRUCTIONS STEP-10 Attention: Before the next step, adjust the feet of the locker to keep it level. 16/27...
- Page 17 ASSEMBLY INSTRUCTIONS STEP-11 1.Use screw #5 to attach the hinges #8 to door panel (L&K) ， tighten screws #5 with screwdriver #19 .Use bolt #5 to ， tighten bolts with attach rebound device #13 to door panel screwdriver #19. K&L K&L M3.5*14mm 17/27...
- Page 18 ASSEMBLY INSTRUCTIONS STEP-12 1.Use screw #5 to attach left door (K) and right door (L) to pre-assemble unit at step 10 ,tighten screw #5 with screwdriver #19 L&K C&D M3.5*14mm 18/27...
- Page 19 ASSEMBLY INSTRUCTIONS STEP-13 1.Use screw #5 to attach the hinges #9 to door panel (L&K) ， tighten screws #5 with screwdriver #19 .Use bolt #5 to ， tighten bolts with attach rebound device #13 to door panel screwdriver #19 L&K L&K M3.5*14mm 19/27...
- Page 20 ASSEMBLY INSTRUCTIONS STEP-14 1.Use screw #5 to attach middle door (K) to pre-assemble unit at step 12 ,tighten screw #5 with screwdriver #19 . M3.5*14mm 20/27...
- Page 21 ASSEMBLY INSTRUCTIONS STEP-15 1.Use screw #5 to attach middle door (L) to pre-assemble unit at step 14 ,tighten screw #5 with screwdriver #19 . M3.5*14mm 21/27...
- Page 22 ASSEMBLY INSTRUCTIONS STEP-16 1.Insert shelf pin #12 into pre-assemble unit at step 15 .attach adjustable shelf G&H to pin #12 . #12x24 C&E&F&D 22/27...
- Page 23 ASSEMBLY INSTRUCTIONS STEP-17 Concealed hinges are three-way adjustable: Horizontal by screw adjustment! Concealed hinges are three-way adjustable: In-and-out by loosening the hinge arm mounting screw or via cam adjustment! Concealed hinges are three-way adjustable: Vertical via slots in the mounting plate or via cam adjustment! Hinge adjustment method 23/27...
- Page 24 ASSEMBLY INSTRUCTIONS #15 x2 M3.5*14mm STEP-18 to attach part #15 to top panel (A),tighten screw #5 with screwdriver Use screw #19 . 24/27...
- Page 25 ASSEMBLY INSTRUCTIONS #17 x4 M4*35mm φ8*30mm STEP-19 Install the anti-collapse device. 2.Mark the position on the wall, that corresponds to the location of part #15 on the top panel (A); Drill and insert the expandable screw by hammer. Assemble the part #15 to the wall. Align the hole in the part #15 with the expandable screw #17 , use screw #14 to attach it and tighten by screwdriver #19.
- Page 26 ASSEMBLY INSTRUCTIONS #16 x2 STEP-20 Let the plastic belt #16 pass through the both part #15 and pull tightly. #16x2 #16x2 26/27...
-
Page 27: Warranty
WARRANTY 1.We strive to offer high-quality products,and we also try our best to satisfy each and every customer that orders from us with product or service as needed. 2.We provide 30 days warranty starting from the time you receive the item.Each customer must provide a record of their order such as the order number,or item receipt for any items that are out of the warranty period you may also still receive.
