Light Management
Electronic potentiometer
Electronic potentiometer, switch function
Art.-No.: 240-10
Electronic potentiometer, push-button function
Art.-No.: 240-31
Operating instructions
1 Safety instructions
Electrical equipment may only be installed and fitted by electrically skilled persons.
Failure to observe the instructions may cause damage to the device and result in fire and
other hazards.
Danger of electric shock. Device is not suitable for disconnection from supply voltage.
Danger of electric shock. Always disconnect before carrying out work on the devise or
load. At the same time, take into account all circuit breakers that supply dangerous
voltage to the device or load.
These instructions are an integral part of the product, and must remain with the end
customer.
2 Device components
(1) Electronic potentiometer
(2) Frame
(3) Central plate
(4) Control button
(5) Fuse holder
(6) Screw terminals
(7) Adjuster
3 Function
Intended use
-
Switching and brightness adjustment for lamps with operating devices with 1-10 V interface
-
Installation in appliance box to DIN 49073
32540753
J:0082540753

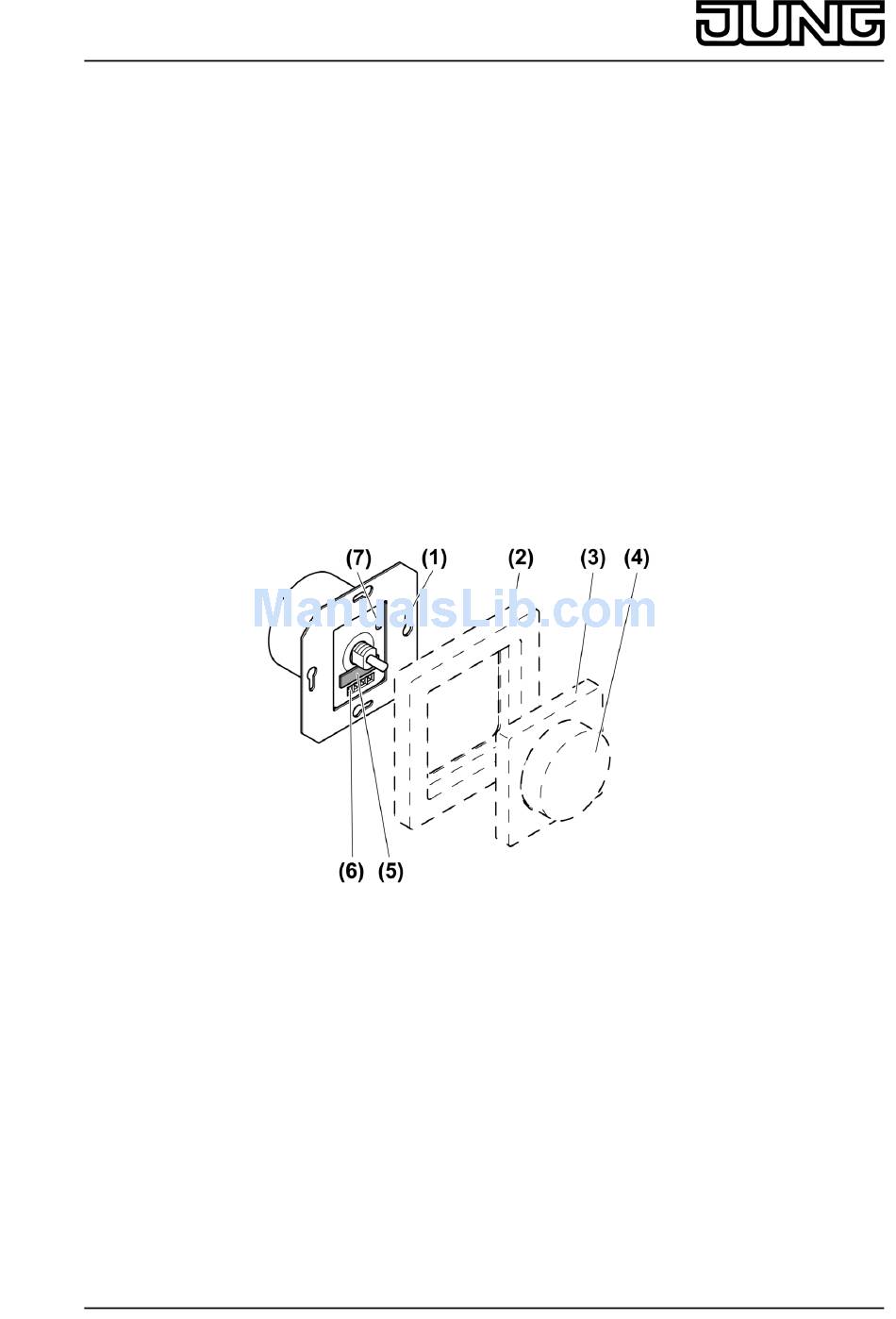

Figure 1: Device components
1/5
29.06.2012
Advertisement
Table of Contents
Related Manuals for Jung 240-10
Summary of Contents for Jung 240-10
-
Page 1: Safety Instructions
Light Management Electronic potentiometer Electronic potentiometer, switch function Art.-No.: 240-10 Electronic potentiometer, push-button function Art.-No.: 240-31 Operating instructions 1 Safety instructions Electrical equipment may only be installed and fitted by electrically skilled persons. Failure to observe the instructions may cause damage to the device and result in fire and other hazards. -
Page 2: Operation
Light Management Electronic potentiometer Product characteristics Potentiometer with switching function for direct switching of ohmic or inductive loads Potentiometer with push-button function only in connection with pulse relays Basic brightness adjustable For potentiometers with a push-button function, switching via extensions is possible Protection of the 1-10 V interface in case of incorrect connection by means of integrated fine-wire fuse 4 Operation... - Page 3 Light Management Electronic potentiometer Figure 3: Connection diagram for potentiometer with switching function and contactor Figure 4: Connection diagram for potentiometer with push-button function 32540753 29.06.2012 J:0082540753...
- Page 4 Light Management Electronic potentiometer Figure 5: Connection diagram for potentiometer with push-button function and extension (1) Electronic potentiometer (8) Lamp operating device with 1-10 interface, electronic ballast (9) Extension, installation button i Control cable: type, cross-section and routing according to VDE requirements for 250 V cable, control voltage with basic insulation.
-
Page 5: Warranty
We provide a warranty as provided for by law. Please send the unit postage-free with a description of the defect to our central customer service office. ALBRECHT JUNG GMBH & CO. KG Volmestraße 1 58579 Schalksmühle Telefon: +49.23 55.8 06-0 Telefax: +49.23 55.8 06-2 04...
