11.1 SCHEMA ELETTRICO (2 gruppi)

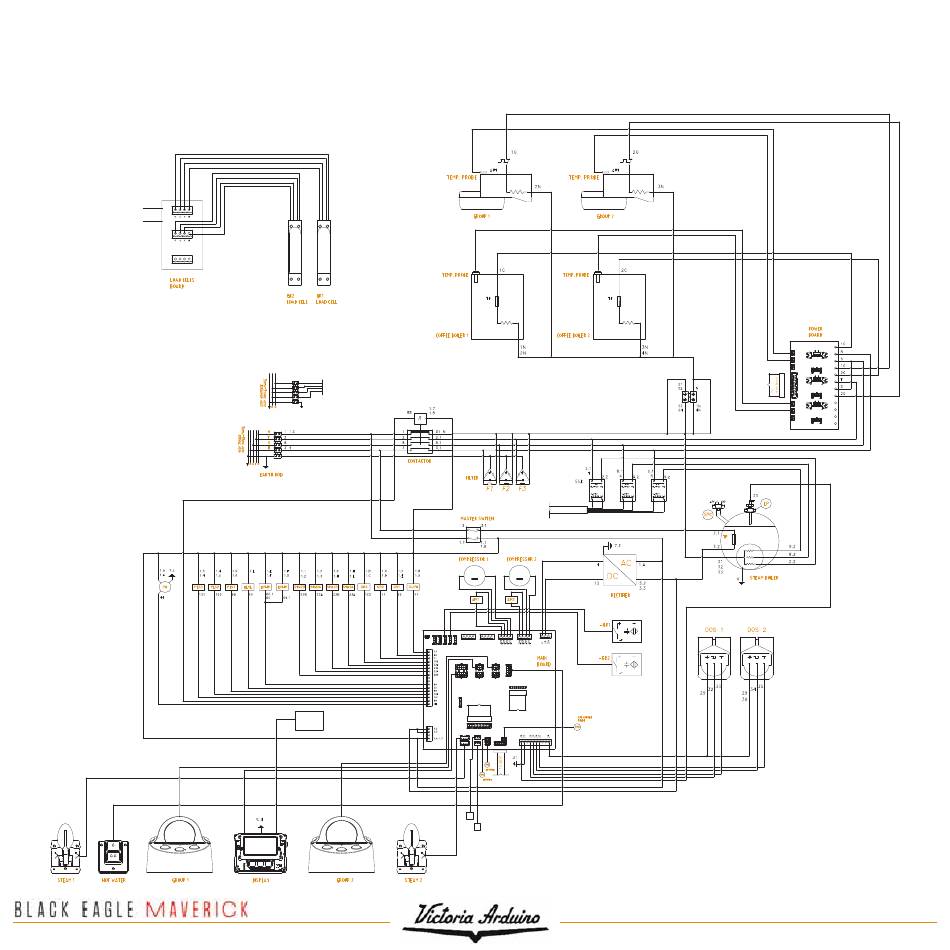

11.1 ELECTRICAL DIAGRAM (2 groups)
11.1 SCHÉMA ÉLECTRIQUE (2 groupes)
To main
board
M
To
power board
WI-FI
MODULE
PS
PR
300 W 300 W
1000 W 1000 W
To main board
M
To
load cells
board
4500 W
