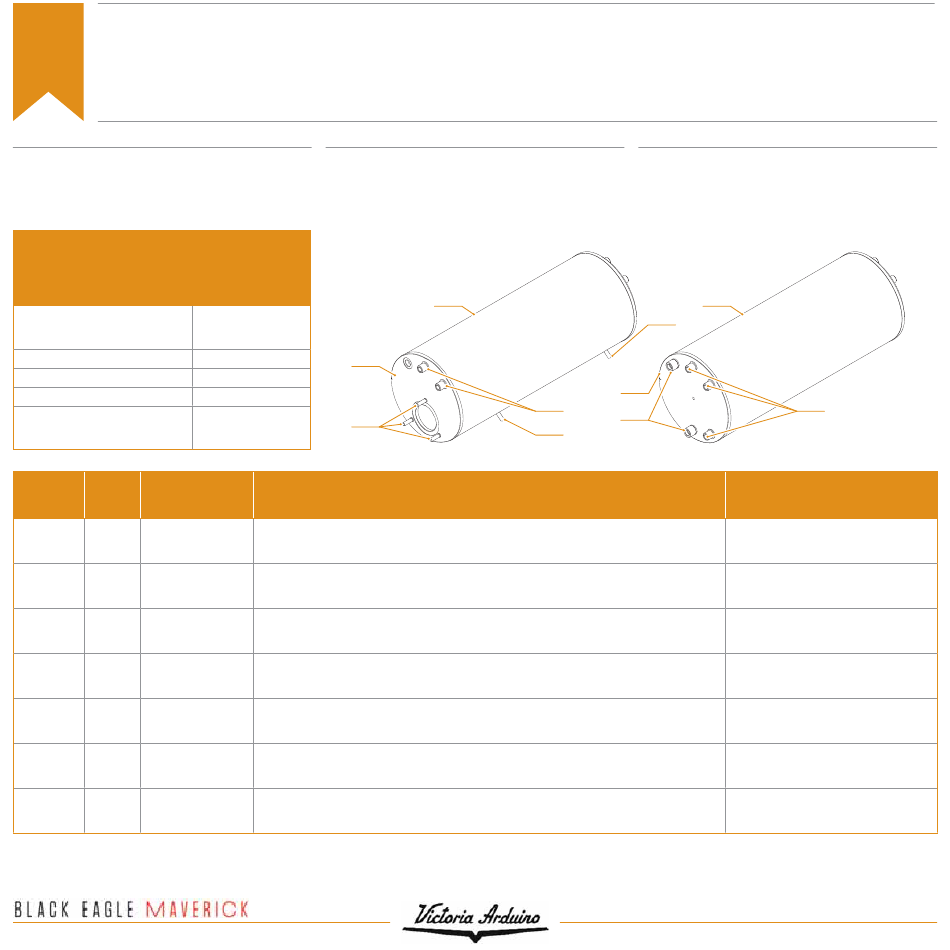

SCHEMI CALDAIA
13
BOILER DIAGRAMS
SCHÉMA CHAUDIÈRE
I T I T
13.1
SCHEMA CALDAIA VAPORE
2/3 GRUPPI
DATI PROGETTO DIRETTIVA PED
PROJECT DATA FOR DIRECTIVE PED
DONNÉES PROJET DIRECTIVE PED
2014/68/CE
VOLUME
VOLUMES
VOLUMES
TS
P.V.S.
PT
FLUIDO
FLUID
FLUIDE
Elemento Q.tà Numero Parte
Element Q.tà Part Number
Élément Q.tà Numéro Partie
1 1 00051090
2 1 00049622
3 1 00049631
4 2 00044360
5 5 00047050
6 3 00081410
7 2 00080730
E N E N
13.1
STEAM BOILER DIAGRAM
2/3 GROUPS
8 l
2
139°C
3,0 Bar
4,0 Bar
6
H O
2
1
5
7
Descrizione
Description
Description
Corpo caldaia
Boiler body
Corps chaudière
Flangia ∅161 PR
PR Flange ∅161
Flasque PR ∅161
Flangia ∅161 PS
PS Flange ∅161
Flasque PS ∅161
Raccordo G 3/8 Maschio
G 3/8 Male fitting
G 3/8 Raccord mâle
Raccordo G 1/8 Maschio
G 1/8 Male fitting
G 1/8 Raccord mâle
Prigioniero M6x20
M6x20 stud
Boulon prisonnier M6x20
Prigioniero M6x15
M6x15 stud
Boulon prisonnier M6x15
F R F R
13.1
SCHÉMA CHAUDIÈRE
VAPEUR 2/3 GROUPES
1
7
3
4
INOX AISI 316L
INOX AISI 316L
INOX AISI 316L
INOX AISI 316L
INOX AISI 316L
5
Materiale
Material
Matériau
INOX A2
INOX A2
95
