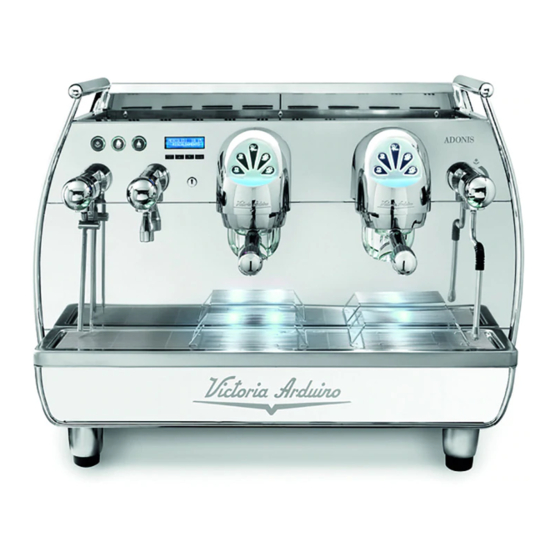

Victoria Arduino ADONIS 2 gruoups Manual
  1. Manuals
  2. Brands
  3. Victoria Arduino Manuals
  4. Coffee Maker
  5. ADONIS 2 gruoups
  6. Manual

Victoria Arduino ADONIS 2 gruoups Manual

Hide thumbs Also See for ADONIS 2 gruoups:
Table of Contents

Advertisement

Quick Links

ADONIS
Congratulations, you have chosen an unique in its kind machine.
Read carefully what is advised in the instruction manual for "setting-up" of your "ADONIS".
You will see how easy it is to make delicious coffee and creamy cappuccinos.
With the passing of time, you will also realise how little maintenance is needed.
Victoria Arduino
35

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ADONIS 2 gruoups and is the answer not in the manual?

Questions and answers

Related Manuals for Victoria Arduino ADONIS 2 gruoups

Summary of Contents for Victoria Arduino ADONIS 2 gruoups

  • Page 1 Read carefully what is advised in the instruction manual for “setting-up” of your “ADONIS”. You will see how easy it is to make delicious coffee and creamy cappuccinos. With the passing of time, you will also realise how little maintenance is needed. Victoria Arduino...
  • Page 2 ADONIS...

  • Page 3: Technical Characteristics

    ADONIS Model: ADONIS 2 gruoups - Net weight: 84 Kg - Gross weight: 90 Kg - Thermal power: 4500 W - Boiler capacity 14 lt - Volts 230-380V 50/60Hz Model: ADONIS 3 gruoups - Net weight: 98 Kg - Gross weight: 108 Kg - Thermal power: 5000 W - Boiler capacity 17 lt - Volts 230-380V 50/60Hz...

  • Page 4: Table Of Contents

    HOT WATER ECONOMISER ADJUSTMENT ........INDEX CLOCK BATTERY REPLACEMENT .............49 ..............50 TECHNICAL CHARACTERISTICS ...... 37 TURNING THE MACHINE ON ............LED SWITCH ON ................GENERAL REMARKS ON BUTTONS KEY (Selection Configuration) ..........THE CONSIGNMENT .......... 39 STEAM FLOW ADJUSTMENT ............SAFETY REGULATIONS ..............

  • Page 5: General Remarks On The Consignment

    GENERAL REMARKS ON THE CONSIGNMENT 1.1 SAFETY REGULATIONS Before connecting the machine, make sure that the The machine must be set-up according to the data of the plate correspond to those of the electrical sanitary and health regulations valid for hydraulic The present manual is an integral and essential distribution network.
  • Page 6 • do not use extensions in places used as a bath or The possible repair of the products will have to be made WARNING DANGER OF POLLUTION shower; by the manufacturer only or by an authorised service Do not dispose of the machine in the environment: for •...

  • Page 7: Description

    DESCRIPTION Delivery Unit Buttons LCD Display Electric Cup-Warmer Select Buttons Hot Water / Steam Programming Keys Delivery Unit Programming Key Manual Steam Nozzle Adjustment Dial Filter-Holder Steam Flow Cup Rack Hot Water Nozzle Drip Tray Autosteam Nozzle Machine Main Switch Piede Regolabile Fig.

  • Page 8: Accessories List

    2.1 ACCESSORIES LIST CODE DESCRIPTION 2 GROUPS 3 GROUPS Filling tube ⅜” Worktop draining tube Ø 25 mm - l. 150 cm Filter-holder Double filter Single filter Blind filter Spring Double delivery spout Single delivery spout Coffee presser ‘U’ and ‘T’ keys Microfibre cloth Fig.

  • Page 9: Transport And Handling

    Once the machine has been freed of the pallet or con- When contacting the manufacturer, Victoria Arduino for Once at destination, always using an adequate lifting tainer, do not discard these in the environment - pollution any reason, always quote the machine serial number.

  • Page 10: Installation And Preliminary Operations

    INSTALLATION AND PRELIMINARY OPERATIONS After unpacking, assess that the machine and its WARNING accessories unit are complete, then proceed as fol- Avoid throttling in the connecting tubes. lows: Assess that the drain pipe (3) is able to eliminate waste. • place the machine so that it is level on a flat sur- face;...
  • Page 11 • for V 380 / 3 phases voltage + Neutral: NOTE For a correct functioning of the machine the water Black works pressure must not exceed 4 bars. Grey Otherwise install a pressure reducer upstream of the Brown softener; the internal diameter of water entrance tube Blue must not be less than 6mm (⅜”).

  • Page 12: Adjustments To Be Made Bya Qualified Technician Only

    ADJUSTMENTS TO BE MADE BY A QUALIFIED TECHNICIAN ONLY To fill the boiler manually for the first time, proceed • turn the manual “A” level tap so that water will 5.1 FILLING BOILER MANUALLY as follows: enter the boiler; NOTE •...

  • Page 13: Pressostat / Pump Adjustment

    PRESSOSTAT / PUMP ADJUSTMENT 5.2.1 PUMP ADJUSTMENT 5.2.2 PRESSOSTAT ADJUSTMENT • Turn the pump registration screw, turning it clock- • Use the adjustment screw for the pressure switch NOTE This operation can be carried out while the machine wise to INCREASE and counter clock wise to to INCREASE (anticlockwise) or REDUCE (clock- is turned on.

  • Page 14: Hot Water Economiser Adjustment

    • The set pump pressure is displayed in the bottom • To access the pressure gauge, remove the cup 5.3 HOT WATER ECONOMISER section "B" of the pressure gauge, inside the warmer section on the left by loosening the two ADJUSTMENT machine (see Fig.

  • Page 15: Clock Battery Replacement

    • To access the economiser, remove the cup warmer • Turn the adjustment knob ANTICLOCKWISE / 5.4 CLOCK BATTERY REPLACEMENT section on the left by loosening the two screws "D" CLOCKWISE to INCREASE / REDUCE the tempera- as illustrated in the following figure. ture of the hot water;...

  • Page 16: Use

    Before starting to use the appliance, the operator must be 6.1 TURNING THE MACHINE ON WARNING sure to have read and understood the safety prescriptions Replacement of the lithium battery must be carried out contained in this booklet. • Plug the machine in and position the main switch EXCLUSIVELY by Qualified Technician.
  • Page 17 MANUAL SWITCHING ON / OFF NOTE WARNING The machine is not operative in that the main switch In case the auto diagnosis indicates error or malfunc- only supplies the electronic card. tion, call an assistance centre; the operator MUST NOT Automatic On / Off NOT PROGRAMMED intervene.

  • Page 18: Led Switch On

    with the date and time. Once the temperature of 110°C has 6.2 LED SWITCH ON 6.3 BUTTONS KEY been the word “Heating” will disappear to be replaced by: Selection Configuration M A CHINE RE A D Y • Plug the machine in and position the main switch "B"...

  • Page 19: Steam Flow Adjustment

    6.5 ADJUSTING THE TURBOCREAM 6.4 STEAM FLOW ADJUSTMENT Fig. 19.A NOZZLE (If Fitted) Use the dial to increase/reduce the flow of steam inject- ed into the milk, as illustrated in the following figure. To increase/reduce the amount of air injected into the milk from the TurboCream nozzle (and therefore to increase/reduce the amount of foam in the heated milk) proceed as illustrated in Fig.

  • Page 20: Adjusting The Autosteam Nozzle (If Fitted)

    6.6 ADJUSTING THE AUTOSTEAM NOTE Fig. 20.A NOZZLE By reducing or increasing the length (tightening or (If Fitted) loosening) the tube/Teflon tube by a few fractions of a mm/mm, there is a significant difference in the amount To increase/reduce the amount of air injected into the of foam in the heated milk.

  • Page 21: Programming

    PROGRAMMING 7.1 KEY LIST OF PROGRAMMABLE FUNCTIONS 7.2 PROGRAMMING AUTO.CLEAN.CYCLE To access the programming units, proceed as follows: DOSE PROGRAM. DELIVERY COUNT NOTE ON-OFF PROGRAM. The procedure can be carried out with the machine CUP-WARMER PRO. DATE/TIME GRINDING HISTORICAL ALARM •...
  • Page 22 • Press ENTER and the display will read: second pause between each delivery, has been • Press ENTER and the display will read: P ROGR A M. DO S E S AUT O. C L E A N. CYC L E completed the selected unit key will begin to S E L E C T...
  • Page 23 • Going on to another selection or pressing the • The display will show the new dose value set Press the   keys to vary the temperature of which can still be changed by pressing the   ENTER key. the beverage you want to heat.
  • Page 24 • The display will show the new value set which can at this point all the delivery buttons belonging to each • Press the RESET or the  key to exit without still be changed by pressing the  . individual unit will flash as illustrated in Fig.
  • Page 25 • Select one or more continue keys (the key or keys Example: • By pressing the ENTER key the display will read: S E L E C TION TO TAL selected will remain lit up). By selecting one of the first unit’s keys (the select- The key or keys will recall the selected unit’s ed key will remain lit up) the display will read: GRO U P TO TAL...
  • Page 26 This indicates the total amount of deliveries ON / OFF PROGRAM. • Press ENTER to confirm and to go on to the made. programmed switching off time (the message OFF • The display reads: 23.30 will start to flash on and off). ON-OFF P ROGR A M •...
  • Page 27 CUP-WARMER PROGRAMMING • Press the ENTER key to go on to the next page. described above. On completion press ENTER to go on to the next • The display will read: page. C U P W A RMER P ROG. DATE/TIME PROGRAMMING •...
  • Page 28 D E L IVERY TIME Each grouphas an area of the bottom line: the area If the time is confirmed: delivery time on the left is for unit 1; the area alongside it is for NO T S E T unit 2 and so on, until the area on the far right, not set which is for unit 4.
  • Page 29 To confirm press the ENTER key. (See chapter called “MACHINE FUNCTION MAINTENANCE PROGRAMMING MESSAGES”) which means you have to adjust • Press the ENTER key again to go on to the next the coffee grinder to increase the grain. By setting •...
  • Page 30 SELECTING THE DESIRED LANGUAGE • Press   to modify the measures unit setted. • The temperature DISPLAY value Y blinks and   keys it is possible to set the display lighting Y • The display will read: • Press ENTER to confirm. from a minimum value of 1 to a maximum of 3.

  • Page 31: Cleaning And Maintenance

    CLEANING AND MAINTENANCE collection dish underneath and clean everything with 8.1 SWITCHING OFF THE MACHINE NOTE hot water and cleansers. To clean proceed as follows: Cleaning the bottom: To clean all the chromium-plated To switch the machine off press the main switch and areas, use a soft, damp cloth.

  • Page 32: Cleaning The Unit With The Aid Of The Blind Filter

    8.4 CLEANING THE UNIT WITH Press one of the coffee keys and halt it after 10 THE AID OF THE BLIND FILTER seconds. Repeat the procedure several times. The machine is pre-set for cleaning the delivery unit Remove the filter-holder and carry our a few deliver- with a specific washing powder.

  • Page 33: 47 9. Machine Function Messages

    MACHINE FUNCTION MESSAGES ADONIS DISPLAY AND KEY CAUSE EFFECT SOLUTION NOTES INDICATIONS At the time of the diagnosis the If after 90 sec of machine func- DIAGNOSIS OF ERROR system presents faults within the tioning the water level is not re- control unit EPROM.
  • Page 34 DISPLAY AND KEY CAUSE EFFECT SOLUTION NOTES INDICATIONS The boiler is provided with a ma- The display indicator will flash on The system will be re-established When the machine’s temperatu- nual refitting safety thermostat; if PRESSURE ERROR and off and the resistor is as soon as the temperature goes re is higher than 130°C.
  • Page 36 Victoria Arduino Via Madonna d'Antegiano, 6 • 62020 Belforte del Chienti (MC) • Italy T +39-0733-950243 • F +39-0733-950247 • Videoconf +39-0733-950201 • info@victoriaarduino.com • www.victoriaarduino.com...
