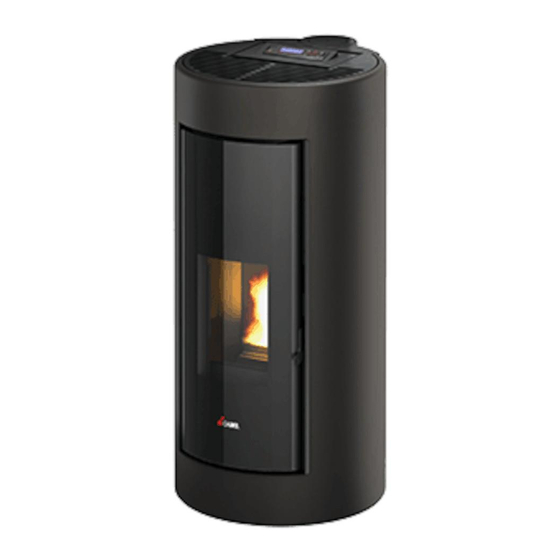

- Page 1 INSTALLER MANUAL Pellet Stove ©2022 CADEL srl | All rights reserved - Tutti i diritti riservati SHELL UP - SHELL PS - BREEZE AIRTIGHT...
-
Page 2: Table Of Contents
7.2 FUME CONDUIT CLEANING ........19 SUMMARY 7.3 FUME CHAMBER AND FUME PASSAGES CLEANING ................19 1 MANUAL SIMBOLOGY ........3 7.4 LOWER COMPARTMENT CLEANING .......20 2 PACKAGING AND HANDLING ......3 7.5 FEED SCREW MAINTENANCE.........21 2.1 PACKAGING .............3 7.6 FUME PIPES ANNUAL CLEANING ......21 2.2 REMOVING THE STOVE FROM THE PALLET ....3 7.7 GASKET REPLACEMENT .........21 2.3 STOVE HANDLING............4... -
Page 3: Manual Simbology
MANUAL SIMBOLOGY USER AUTHORISED TECHNICIAN (ONLY to interpret or the Stove-manufacturer or the Authorized Technician of Technical Assistance Service approved by the Stove-manufacturer) SPECIALIZED STOVE-REPAIRER CAUTION: READ CAREFULLY THE NOTE CAUTION: DANGER OR IRREVERSIBLE DAMAGE POSSIBILITY • The icons with the stylized figures indicates whom the subject dealt in the paragraph is addressed to (between the User and/ or the Authorized Technician and/or the Specialized Stove-repairer). -
Page 4: Stove Handling
STOVE HANDLING Both whether the stove is packed or not it is necessary to observe the following instructions for handling and transporting the stove from its sale point to its installation point and for any future movements: • The stove must be handled with idoneous means paying attention to the existing safety regulations; •... -
Page 5: Smoke Duct (Smoke Fitting)
SMOKE DUCT (SMOKE FITTING) The smoke duct is the pipe that connects the appliance to the flue. This smoke fitting must comply in particular with the following requirements: • comply with product standard EN 1856-2; • its cross-section must be of constant diameter and no less than that of the appliance outlet, from the firebox outlet up to the connection in the flue;... -
Page 6: Chimney Pot
Fig. 3 - Chimney Flues LEGEND Fig. 3 Chimney flue with insulated stainless-steel pipes Chimney flue on the existing chimney Inspection plug Inspection door • The chimney flue must be provided CE in accordance with EN 1443 regulation. Please find attached an example of label: Fig. -
Page 7: Maintenance
Fig. 5 - Anti-wind chimney pots Fig. 6 - Reflux area MAINTENANCE • The fumes extraction pipes (fumes conduit + chimney flue + chimney pot) must always be cleaned, scrubbed and checked by an expert stove-repairer, in compliance with current regulations, with the instructions of the stove-manufacturer and the directives of your insurance company. -
Page 8: How To Connect To The Stove In The Sealed
air inlet which is usually found on the back of the appliance. The duct must comply with the following dimensions (each 90° bend is equivalent to one linear metre): (***) In the event the combustion air is ducted on unsealed products, still verify that no more than 4 Pa of negative pressure is created inside the installation room with respect to the outside, otherwise provide for an additional air intake in the room. -
Page 9: Up - Breeze At)
Fig. 9 - Phase1 Fig. 10 - Phase 2 Fig. 11 - Phase 3 • Original position with completely embedded tube (see Fig. 9). • Pull out the tube for 2 cm (see Fig. 10). • Insert the female tube ø 6 cm (see Fig. 11). COMBUSTIBLE AIR INLET FOR SEALED-CHAMBER INSTALLATION (SHELL UP - BREEZE AT) How to connect to the stove in the sealed chamber with concentric system:... -
Page 10: Examples Of Installation
EXAMPLES OF INSTALLATION (DIAMETERS AND LENGTHS TO BE SIZED) Fig. 14 - Chimney flue 1. Flue installation with hole for the passage of the pipe increased by: minimum 100mm around the pipe if next to non-flammable parts such as cement, brick, etc.; or minimum 300mm around the pipe (or as required by plate data) if next to flammable parts such as wood etc. -
Page 11: Installation
LEGEND Fig. 14 Insulation Possible diameter increase Inspection cap Inspection access panel Air inlet Tee fitting with inspection cap Distance from flammable material (smoke duct plate) Maximum 4 m Minimum 3° slope Distance from flammable material (appliance plate) Reflux area Air ducting The instructions in this chapter refer explicitly to the Italian installation regulation UNI 10683. -
Page 12: Minimum Distances
A sealed installation does not consume the room’s oxygen because it draws all the air from the outer environment (if suitably ducted) and makes it possible to install the product in all houses that require a high degree of insulation such as “passive” or “high energy efficiency”... -
Page 13: Overall Dimensions
This operation (1*) must be performed by a technician qualified to disconnect the combustion product expulsion ducts and their subsequent restoration. For generators connected to the hydraulic system, a connection must be provided between the system itself and the product so that, during extraordinary maintenance, carried out by a qualified technician, it is possible to move the generator 1 by at least 50 cm from adjacent walls without emptying the system (e.g. - Page 14 Fig. 17 - General dimensions: Shell LEGEND 52,3 cm 114 cm 60 cm 52,2 cm 26,1 cm Exhaust fumes d.8 cm Hole combustion air inlet d.6 cm Fig. 18 - General dimensions: Breeze Airtight LEGEND 52,8 cm 114 cm 60 cm 52,5 cm 26,4 cm Exhaust fumes d.8 cm...
-
Page 15: Stove Door Removal/Installation
STOVE DOOR REMOVAL/INSTALLATION DOOR REMOVAL For some operations (e.g.: side panel assembly and cleaning) you must remove the stove door. To remove the door: • Open the door. • Use a screwdriver to rotate the lever in the direction of the arrow (see Fig. 19). •... -
Page 16: Breeze Airtight Side Panel Disassembly
Fig. 24 - Rear screws removal Fig. 25 - Remove the upper coque from above. Fig. 26 - Remove the lower coque by pulling it towards you. BREEZE AIRTIGHT SIDE PANEL DISASSEMBLY To access the internal stove parts, disassemble the side panels as indicated below: •... -
Page 17: Electric Connection
Fig. 30 - Remove flexible hose Fig. 31 - Decoupled air hose ELECTRIC CONNECTION Warning: the appliance must be installed by an authorized technician! • The electric connection occurs through a cable with plug put in an electric socket which is able to support charge and tension specific of every model, as described in the technical datas table (see FEATURES a pag. -
Page 18: Stove Calibration And Depression
• Press the "menu" button. • Scroll with the arrows to "Settings". • Select by pressing "menu". • Scroll with the arrows again to "Ext.Thermostat". • Select by pressing "menu". • Press the - + buttons. • To activate the external thermostat select "on". •... -
Page 19: Fume Conduit Cleaning
All these operations must be planned in time with your Autorized Technical Assistance Service. • After a long ineffective time, before turning on the stove check if there are obstructions in the fume exhaust. • If the stove had been using continuously and intensely, the whole system (chimney included), must be cleaned and checked more frequently. -
Page 20: Lower Compartment Cleaning
Once the exchanger cleaning has been finished, you must remove the four screws fixing plates “C” to the structure, remove gasket “D” and then clean the lower compartment where all ash deposits from previous cleaning operations have accumulated (see Fig. 40). -
Page 21: Feed Screw Maintenance
FEED SCREW MAINTENANCE Proceed as follows for the feed screw maintenance: Fig. 44 - Screw removal Fig. 45 - Coque removal Fig. 46 - Gear motor removal • Enter the tank and loosen the 4 screws of the feed screw coque (see Fig. 44). •... -
Page 22: In Case Of Anomaly
IN CASE OF ANOMALY PROBLEM SOLVING Before of every Authorized Technician intervention, the same Technician has the duty to check if the parame- ters of the mother board correspond to those of the table you own. In case of doubts regarding the use of the stove, please contact ALWAYS the Authorized Technician on order to avoi irreparable damages! PROBLEM CAUSE... - Page 23 PROBLEM CAUSE SOLUTION INTERVENTION Empty hopper Full the hopper. Auger blocked by a foreign object (for Clean the auger. example nails) The fire extinguish Bad quality pellets Try other types of pellets. and the stove stops Pellet drop value too Adjust the pellet loading.
-
Page 24: Technical Datas
PROBLEM CAUSE SOLUTION INTERVENTION Check that the flue is not clogged. The stove's smoke Low smoke tempe- duct produces Increase stove power to minimum (pellet drop and fan revs). rature condensation Install condensation collection cup. Stove running and Routine maintenan- When this flashing message appears upon start-up, it means that display showing ce alert (it does not... -
Page 25: Features
FEATURES DESCRIPTION SHELL3 UP BREEZE AIRTIGHT SHELL3 PS WIDTH 52,3 cm 52,8 cm 52,3 cm DEPTH 57,5 cm 60 cm 57,5 cm HEIGHT 114 cm 114 cm 114 cm WEIGHT 88 kg 88 kg 85,3 kg INTRODUCED THERMIC POWER (Min/Max) - Page 26 Rev. 00 - 2022 CADEL srl www.cadelsrl.com 31025 S. Lucia di Piave - TV www.free-point.it Via Foresto sud, 7 - Italy www.pegasoheating.com Tel. +39.0438.738669 Fax +39.0438.73343...
