INSTRUCTIONS-PARTS LIST
This manual contains important
warnings and information.
READ AND KEEP FOR REFERENCE.
INSTRUCTIONS
CARBON STEEL
Dura-Flo
With Severe-Duty Rod and Cylinder
Refer to page 2 for a List of Models and the Table of Contents.
GRACO INC. P.O. BOX 1441 MINNEAPOLIS, MN 55440–1441
750 Pumps
COPYRIGHT 1995, GRACO INC.
Graco Inc. is registered to I.S. EN ISO 9001
308–417
First choice when
quality counts.

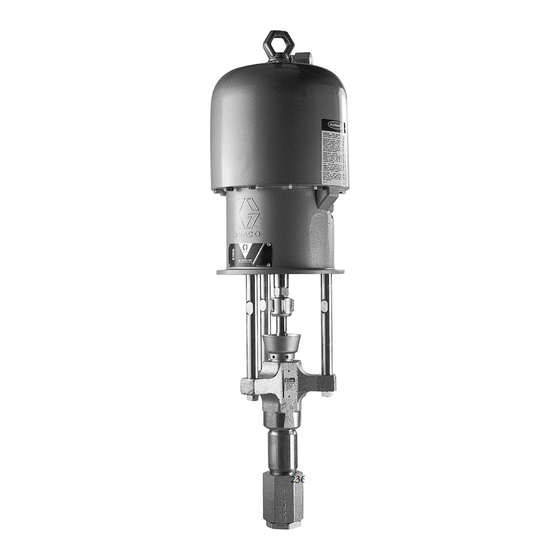

Model 237–366
Model 236–459
05241
Rev. C
Supersedes B
05242
