designer's image 422784 Assembly Instructions Manual page 9

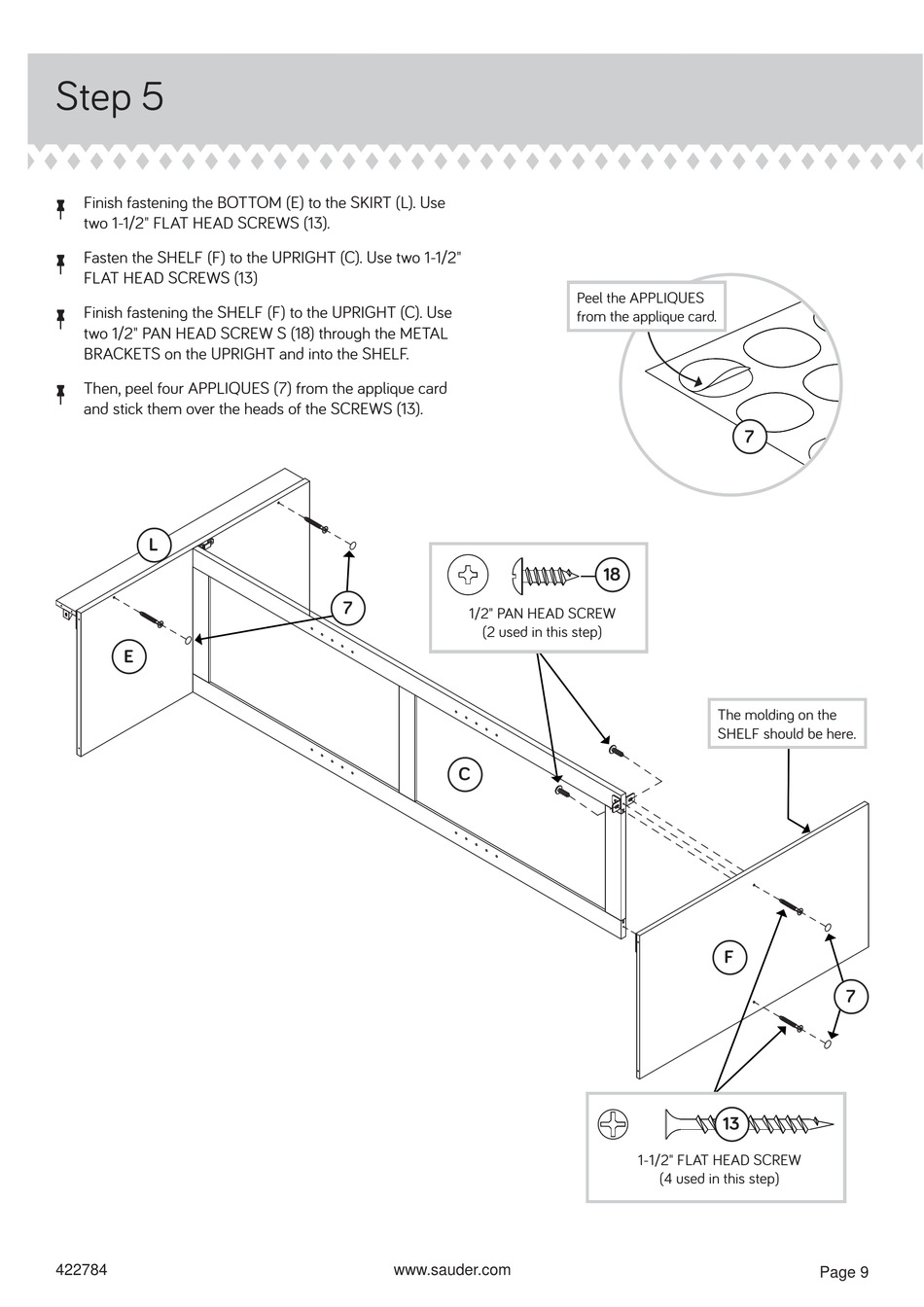

Step 5
Finish fastening the BOTTOM (E) to the SKIRT (L). Use
å
two 1-1/2" FLAT HEAD SCREWS (13).
Fasten the SHELF (F) to the UPRIGHT (C). Use two 1-1/2"
å
FLAT HEAD SCREWS (13)
Finish fastening the SHELF (F) to the UPRIGHT (C). Use
å
two 1/2" PAN HEAD SCREW S (18) through the METAL
BRACKETS on the UPRIGHT and into the SHELF.
Then, peel four APPLIQUES (7) from the applique card
å
and stick them over the heads of the SCREWS (13).
L
E
422784
7
1/2" PAN HEAD SCREW
(2 used in this step)
C
www.sauder.com
Peel the APPLIQUES
from the applique card.
7
18
The molding on the
SHELF should be here.
F
13
1-1/2" FLAT HEAD SCREW
(4 used in this step)
7
Page 9
