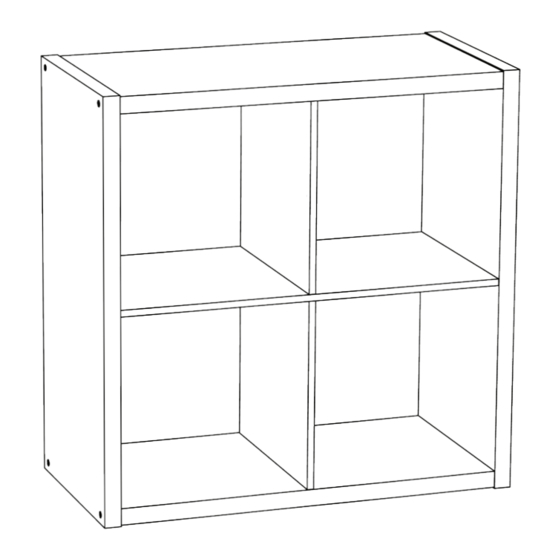

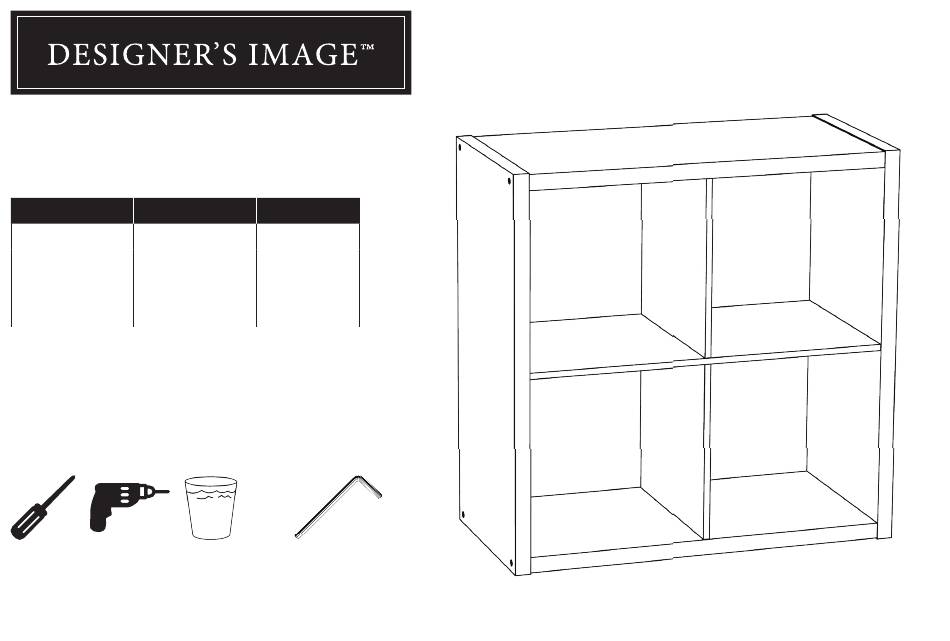

- Page 1 4-Cube Organizer Assembly Instructions Reference # Finish 211-4519 3649 White 211-4518 3651 Java 211-4517 3652 Cottage 211-4618 14587 Charcoal Tools Needed: Tools Provided: screwdriver drill cup of water hex key 01-13949-00 11/20...
-
Page 2: Safety Precautions
SAFETY PRECAUTIONS WARNING • This unit contains small parts which could be a choking hazard for small children. Children should be STOP under adult supervision at all times or serious injury could occur. • Always unload unit prior to moving the unit. The weight of personal belongings can cause the unit to become unstable and either tip or collapse. -
Page 3: Description Quantity
HARDWARE DESCRIPTION QUANTITY (H1) x 10 (H2) x 8 side panel top/bottom panel pre-glued dowel hex screw divider fixed shelf adhesive screw-covers (H3) x 2 (H4) x 2 (H5) x 2 L-bracket screw wall screw L-bracket #10 x 1/2 in. #10 x 1-1/2 in. - Page 4 STEP 1 (H1) (H1) (H1) (H1) (H1) (H1) (H1) (H1) (H1) (H1) (H1) x 10 pre-glued dowel (H1) 1. Arrange fixed shelf (D) and dividers (C) as shown. 2. Quickly dip pre-glued dowels (H1) into a cup of water, making sure entire dowel gets wet. 3.
- Page 5 STEP 2 1. Align dowels on divider (C) with center holes on fixed shelf (D) as shown. 2. Push both dividers into place. Dowels in one divider (C) should interlock with second divider (C) on other side of fixed shelf (D). 3.
- Page 6 STEP 3 (H2) (H2) (H2) (H2) (H2) (H2) (H2) (H2) x 8 hex screw (H2) 1. Align 2 center holes in each side panel (A) with dowels in fixed shelf (D). Push to secure. 2. Secure side panels (A) to both top/bottom panels (B) using four hex screws (H2) for each panel. Tighten screws using supplied hex wrench. 3.
-
Page 7: Installation
STEP 4 WARNING (H4) x 2 (H3) x 2 (H5) x 2 wall screw All units MUST be fastened to the wall. L-bracket screw L-bracket #10 x 1/2 in. #10 x 1-1/2 in. Secure to wall using 1-1/2 in. screw (H4) inserted through small hole of L-bracket (H5) into wall stud.
