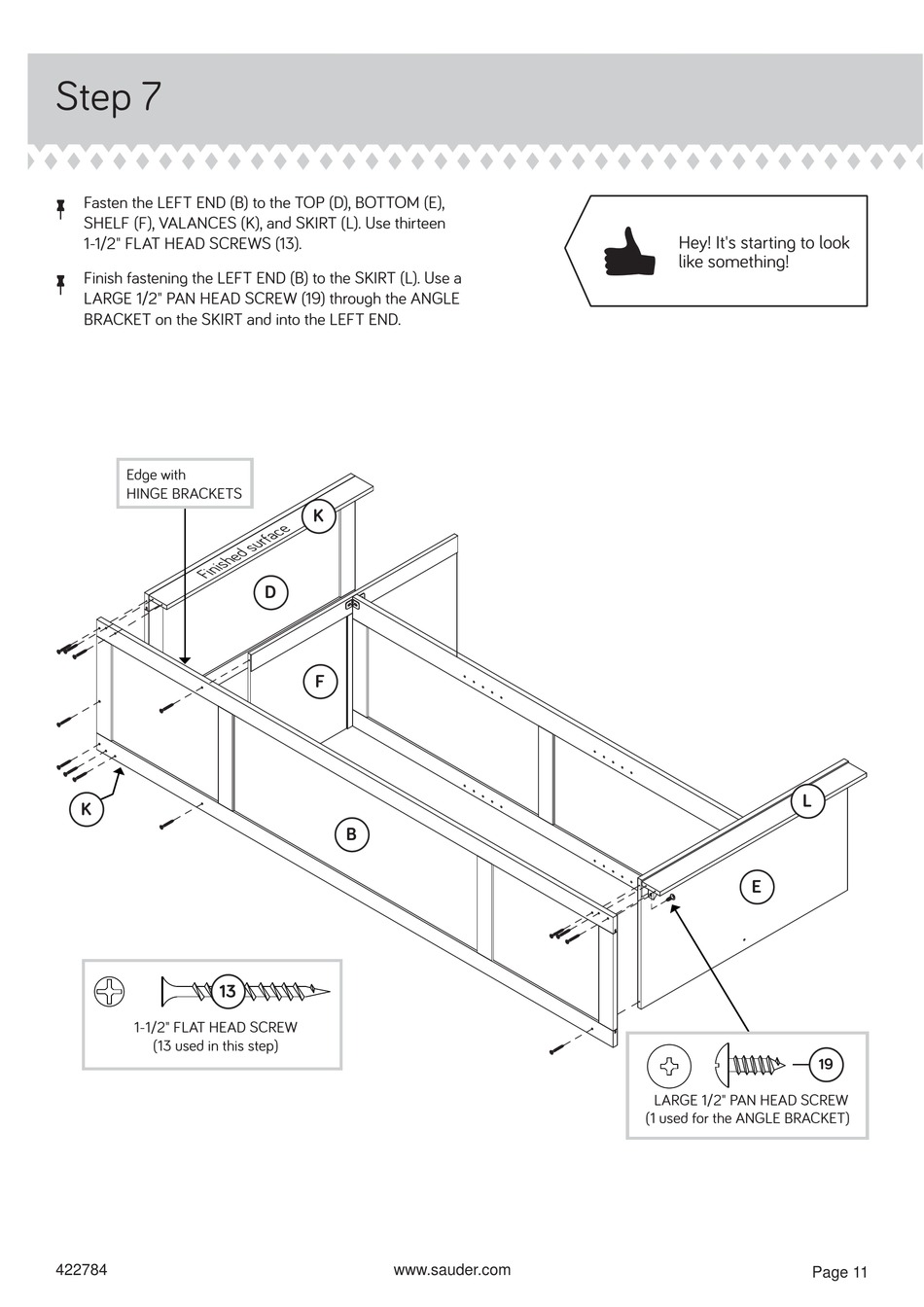

Step 7
Fasten the LEFT END (B) to the TOP (D), BOTTOM (E),
å
SHELF (F), VALANCES (K), and SKIRT (L). Use thirteen
1-1/2" FLAT HEAD SCREWS (13).
Finish fastening the LEFT END (B) to the SKIRT (L). Use a
å
LARGE 1/2" PAN HEAD SCREW (19) through the ANGLE
BRACKET on the SKIRT and into the LEFT END.
Edge with
HINGE BRACKETS
K
13
1-1/2" FLAT HEAD SCREW
(13 used in this step)
422784
K
D
F
B
www.sauder.com
Hey! It's starting to look
like something!
L
E
19
LARGE 1/2" PAN HEAD SCREW
(1 used for the ANGLE BRACKET)
