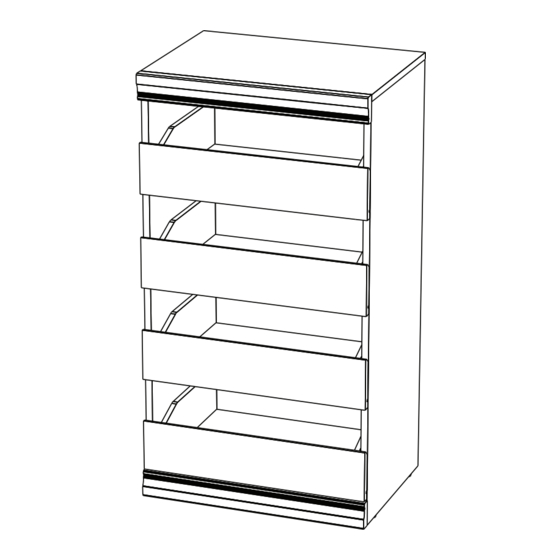

- Page 1 4 Drawer Base Cabinet Assembly Instructions Reference # Finish 211-4581 4039 White 211-4582 4094 Java 211-4584 4056 Cottage 211-4682 14598 Charcoal Tools Needed: hammer screwdriver 01-13958-00 11/20...
-
Page 2: Safety Precautions
SAFETY PRECAUTIONS WARNING • This unit contains small parts which could be a choking hazard for small children. Children should be STOP under adult supervision at all times or serious injury could occur. • Always unload unit prior to moving the unit. The weight of personal belongings can cause the unit to become unstable and either tip or collapse. - Page 3 HARDWARE (H4) x 6 (H1) x 22 (H2) x 14 (H3) x 16 (H5) x 32 (H6) x 20 wide dowel cam post 15 mm cam lock funnel screw euro screw small nail 8 mm x 30 mm (H10) x 1 (H12) x 1 (H7) x 4 (H8) x 4...
-
Page 4: Description Quantity
DESCRIPTION QUANTITY left side panel right side panel back cleat bottom shelf top shelf back panel trim right drawer side drawer back left drawer side drawer bottom drawer front... - Page 5 STEP 1 (H2) (H1) (H4) (H4) x 4 (H1) x 6 (H2) x 4 wide dowel cam post 15 mm cam lock 8 mm x 30 mm 1. Secure cam posts (H1) into holes as shown. PLEASE NOTE: Cam post is secure when threads on screw are not showing. 2.
- Page 6 STEP 2 (H1) (H4) (H2) (H4) x 2 (H1) x 4 (H2) x 10 wide dowel cam post 15 mm cam lock 8 mm x 30 mm 1. Secure cam posts (H1) into holes as shown. PLEASE NOTE: Cam post is secure when threads on screw are not showing. 2.
- Page 7 STEP 3 1. Align side panel (B) with appropriate holes in bottom shelf (D) and back cleat (C) as shown and install. 2. Tighten cam locks to secure side panel (B) to back cleat (C) and bottom shelf (D).
- Page 8 STEP 4 1. Align side panel (A) with appropriate holes in bottom shelf (D) and back cleat (C) as shown and install. 2. Tighten cam locks to secure side panel (A) to back cleat (C) and bottom shelf (D).
- Page 9 STEP 5 1. Align top shelf (E) with appropriate holes as shown and install. 2. Tighten cam locks to secure side panels (A & B) to top shelf.
- Page 10 STEP 6 (H6) x 20 (H7) x 4 small nail nail-on foot 1. Place back panel (G) onto unit (making sure the finished side of backer faces down) and center horizontally and vertically. 2. Nail the back panel (G) into position using small nails (H6). Avoid angling nails. 3.
- Page 11 STEP 7 NOTE: Thicker edges of trim should be positioned towards the top and bottom ends of the unit unless stacking, then choose either option 1 or 2 for the adjoining trim preference. option 1 option 2 (H1) x 4 cam post 1.
- Page 12 STEP 8 (H17) (H17) (H3) (H18) (H1) (H15) (H5) (H18) x 8 (H1) x 8 (H17) x 8 (H15) x 4 (H5) x 16 (H3) x 16 dowel cam post 12 mm cam lock inside drawer glide euro screw funnel screw 6 mm x 30 mm 1.
- Page 13 STEP 9 (H16) x 4 (H5) x 16 outside drawer glide euro screw 1. Secure the outside drawer glides (H16) to the assembled cabinet as shown using four euro screws (H5). Repeat for the remaining glides. 2. Insert the four assembled drawers into the cabinet as shown.
- Page 14 STEP 10 WALL (H11) (H12) (H9) (H10) (H9) (H10) x 1 (H12) x 1 (H9) x 2 (H11) x 1 small screw long screw back anchor nylon zip tie (H8) x 4 #8 x 1/2 in. #8 x 1-1/2 in. cover cap 1.
- Page 15 STEP 11 The 4 drawer cabinet is intended to be a base cabinet only. It should not be on top when stacked. (H14) x 8 (H13) x 2 medium screw stacking bracket #8 x 7/8 in. 1. NOTE: If stacking this unit, align the units on top of each other as shown. 2.
