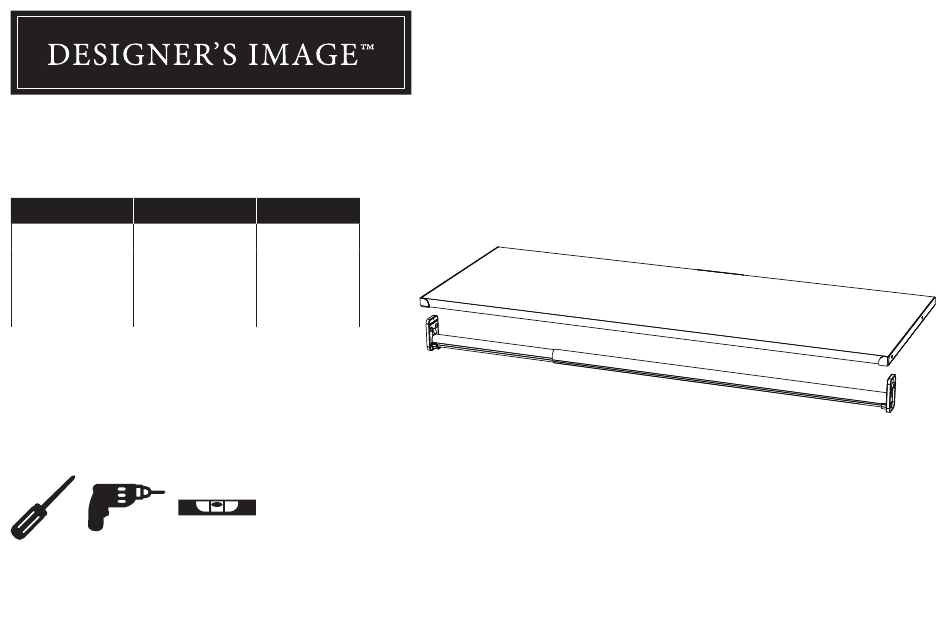

- Page 1 Shelf Kit with Pole Assembly Instructions Reference # Finish 211-4569 4029 White 211-4570 4080 Java 211-4571 4049 Cottage 211-4670 14595 Charcoal Tools Needed: screwdriver drill w/ level 1/4 in. bit 01-13967-00 11/20...
-
Page 2: Safety Precautions
SAFETY PRECAUTIONS WARNING • This unit contains small parts which could be a choking hazard for small children. Children should be STOP under adult supervision at all times or serious injury could occur. • Always unload unit prior to moving the unit. The weight of personal belongings can cause the unit to become unstable and either tip or collapse. -
Page 3: Description Quantity
HARDWARE DESCRIPTION QUANTITY top shelf inner hang rod outer hang rod (H1) x 2 (H2) x 14 (H3) x 6 side support small screw long screw (H4) x 6 (H5) x 1 (H6) x 2 wall anchor back support hang rod bracket Note: You will have extra hardware depending on application. - Page 4 STEP 1 (H2) (H2) (H1) (H1) (H2) (H4) (H3) Cabinet Wall (H1) x 2 (H2) x 4 side support small screw If securing shelf from cabinet to cabinet: 1. Position the side support brackets (H1) so that they align with the top and front edges of the base cabinet. Do not align with front edge of the trim. 2.
- Page 5 STEP 2 (H5) Wall (H4) (H5) (H3) (H5) x 1 (H3) x 2 (H4) x 2 back support long screw wall anchor 1. Place the top shelf (A) onto the side support brackets (H1). 2. Center and mark the location of the back support bracket (H5) then remove top shelf. 3.
- Page 6 STEP 3 (H2) (H2) (H2) (H2) x 6 small screw 1. Place the top shelf (A) back into position on the support brackets and secure using small screws (H2).
- Page 7 STEP 4 (H2) (H2) (H6) (H6) (H2) (H3) (H6) (H4) (H6) Cabinet Wall (H6) x 2 (H2) x 4 hang rod bracket small screw If securing hang rod from cabinet to cabinet: 1. Position the hang rod brackets (H6) into the desired position (approx. 2-1/8 in from top edge and 1-1/4 in from front edge) and secure using small screws (H2). (H6) x 2 (H2) x 2 (H3) x 2...
- Page 8 STEP 5 (H6) (H6) 1. Slide the inner hang rod (B) into the outer hang rod (C) ensuring the bottom holes are on the outer edges. 2. Inset assembled hang rod (A & B) onto the hang rod brackets (H6) and lock into position.
