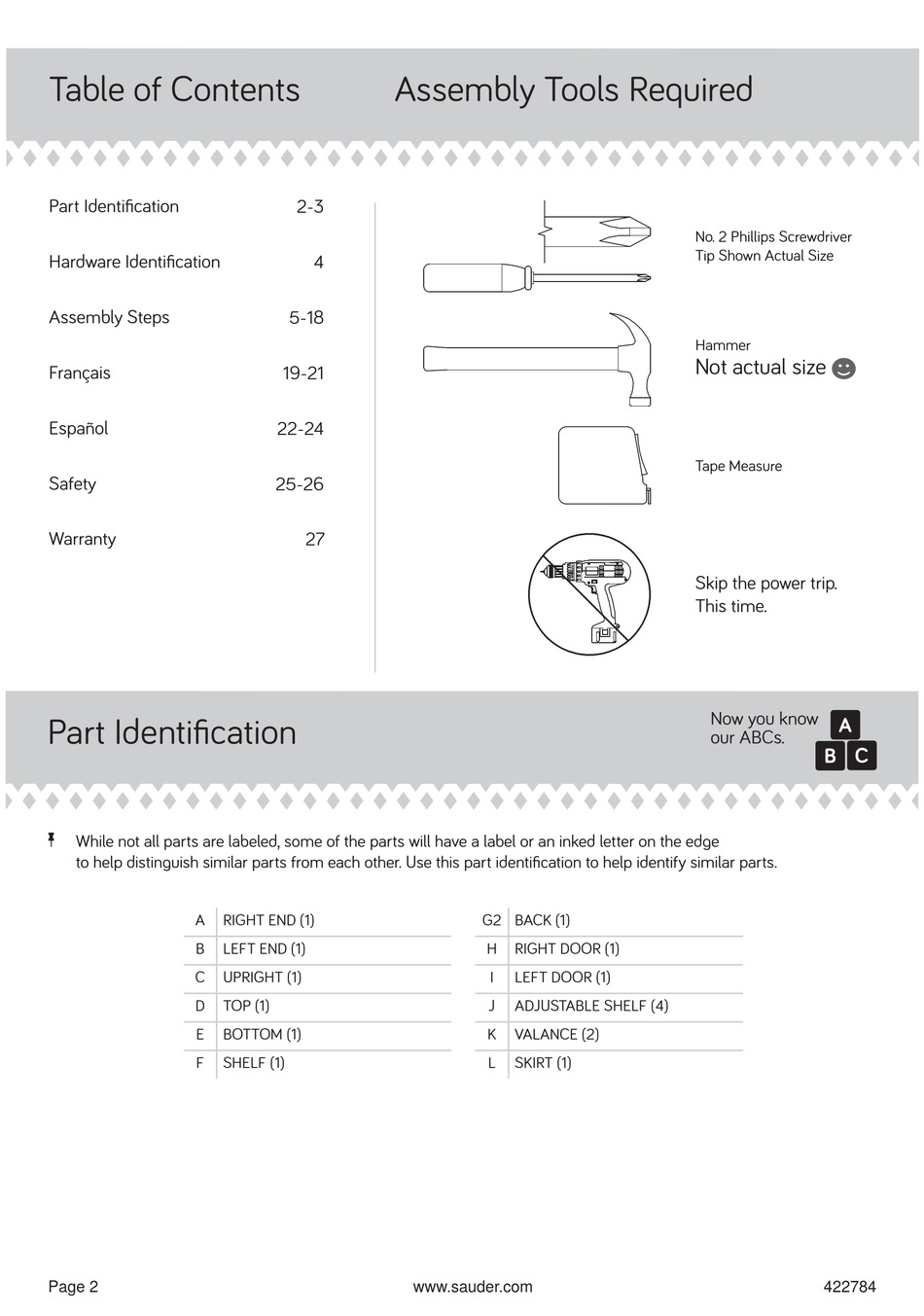

designer's image 422784 Assembly Instructions Manual page 2

Table of Contents
Part Identifi cation
Hardware Identifi cation
Assembly Steps
Français
Español
Safety
Warranty
Part Identifi cation
å
While not all parts are labeled, some of the parts will have a label or an inked letter on the edge
to help distinguish similar parts from each other. Use this part identifi cation to help identify similar parts.
A
B
C
D
E
F
Page 2
Assembly Tools Required
2-3
4
5-18
19-21
22-24
25-26
27
RIGHT END (1)
LEFT END (1)
UPRIGHT (1)
TOP (1)
BOTTOM (1)
SHELF (1)
G2 BACK (1)
H RIGHT DOOR (1)
I LEFT DOOR (1)
J ADJUSTABLE SHELF (4)
K VALANCE (2)
L SKIRT (1)
www.sauder.com
No. 2 Phillips Screwdriver
Tip Shown Actual Size
Hammer
Not actual size
Tape Measure
Skip the power trip.
This time.
Now you know
our ABCs.
