designer's image 422784 Assembly Instructions Manual page 10

Storage cabinet
Hide thumbs

Advertisement

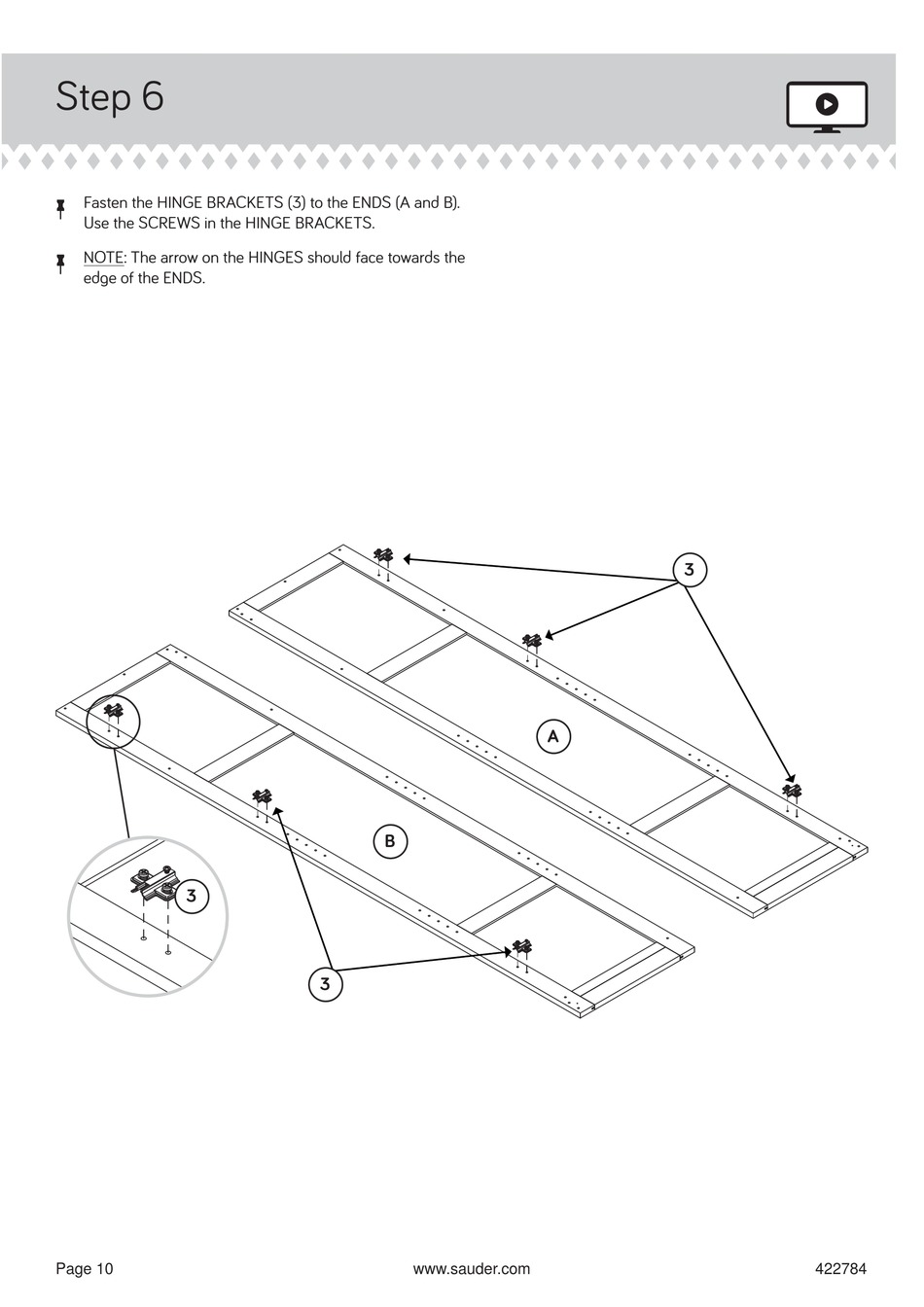

Step 6
Fasten the HINGE BRACKETS (3) to the ENDS (A and B).
å
Use the SCREWS in the HINGE BRACKETS.
NOTE: The arrow on the HINGES should face towards the
å
edge of the ENDS.
3
Page 10
B
3
www.sauder.com
3
A
422784
