Position M1 – Sensor Calibration
Sensor calibration is an important resource for the equipment's optimum operation.
This procedure is applied when there are alterations in the installation environment
and/or when incorrect calibration is identified.
By pressing the OK button for 3 seconds, the equipment will start the calibration
process. Remember to step away from the equipment so to not affect the process. The
phase's progress can be seen on the red-colored LEDs. After calibration, the
equipment will return to its normal operation.

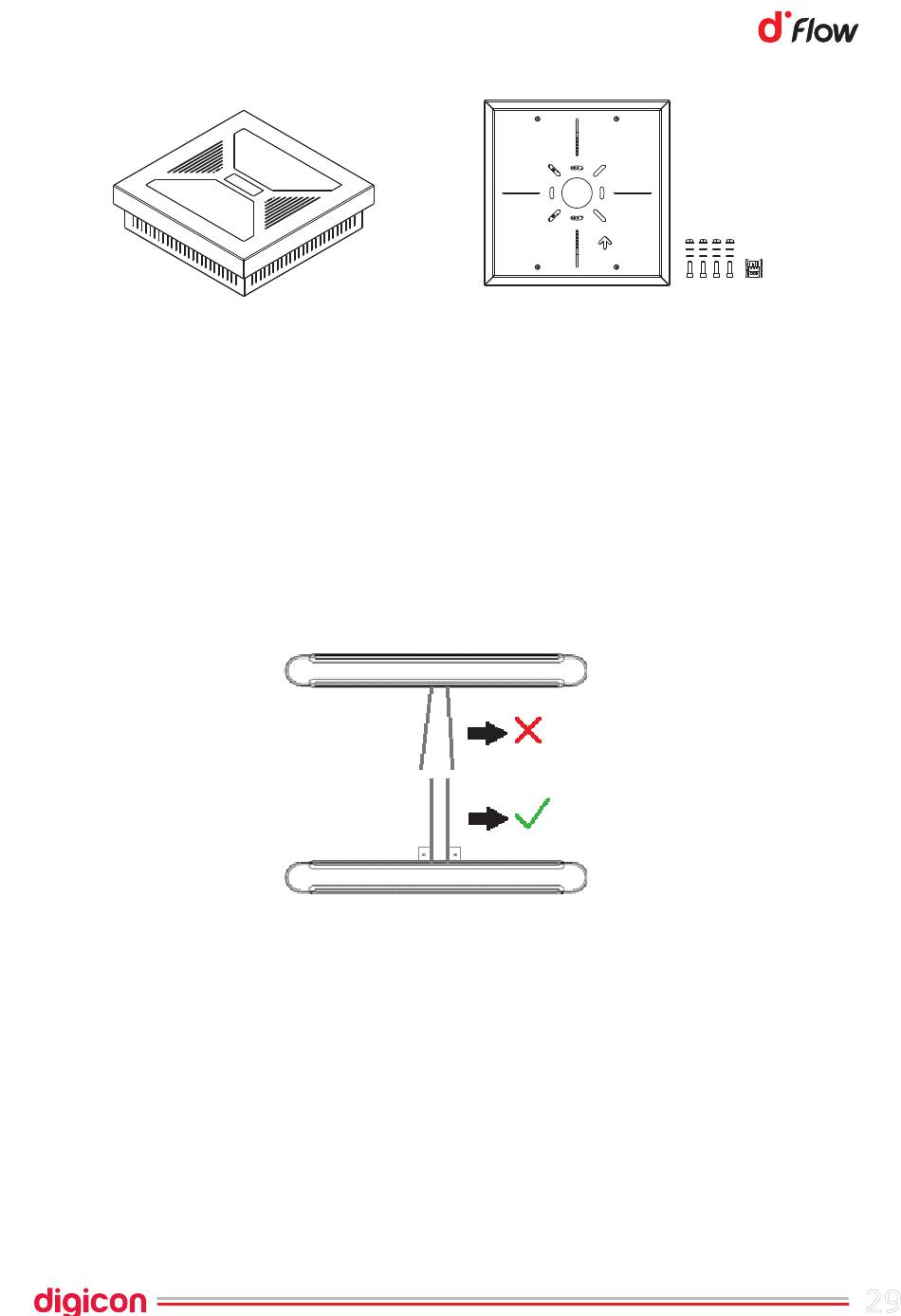

Position M2 – Door calibration
The door calibration procedure is applied when we identify that the doors are not
orthogonal to the blockage, that is, they do not form a 90° angle with the module.
This procedure is divided into two phases: verification of opening edges and door
centralization. By briefly pressing the OK button, the equipment will start the process
of verifying the edges. After the first phase is finished, manually adjust the doors
orthogonally to the module position and press the OK button again. The progress of
both phases can be seen in the purple-colored LEDs operation.
After the procedure, the equipment will return to its normal.
