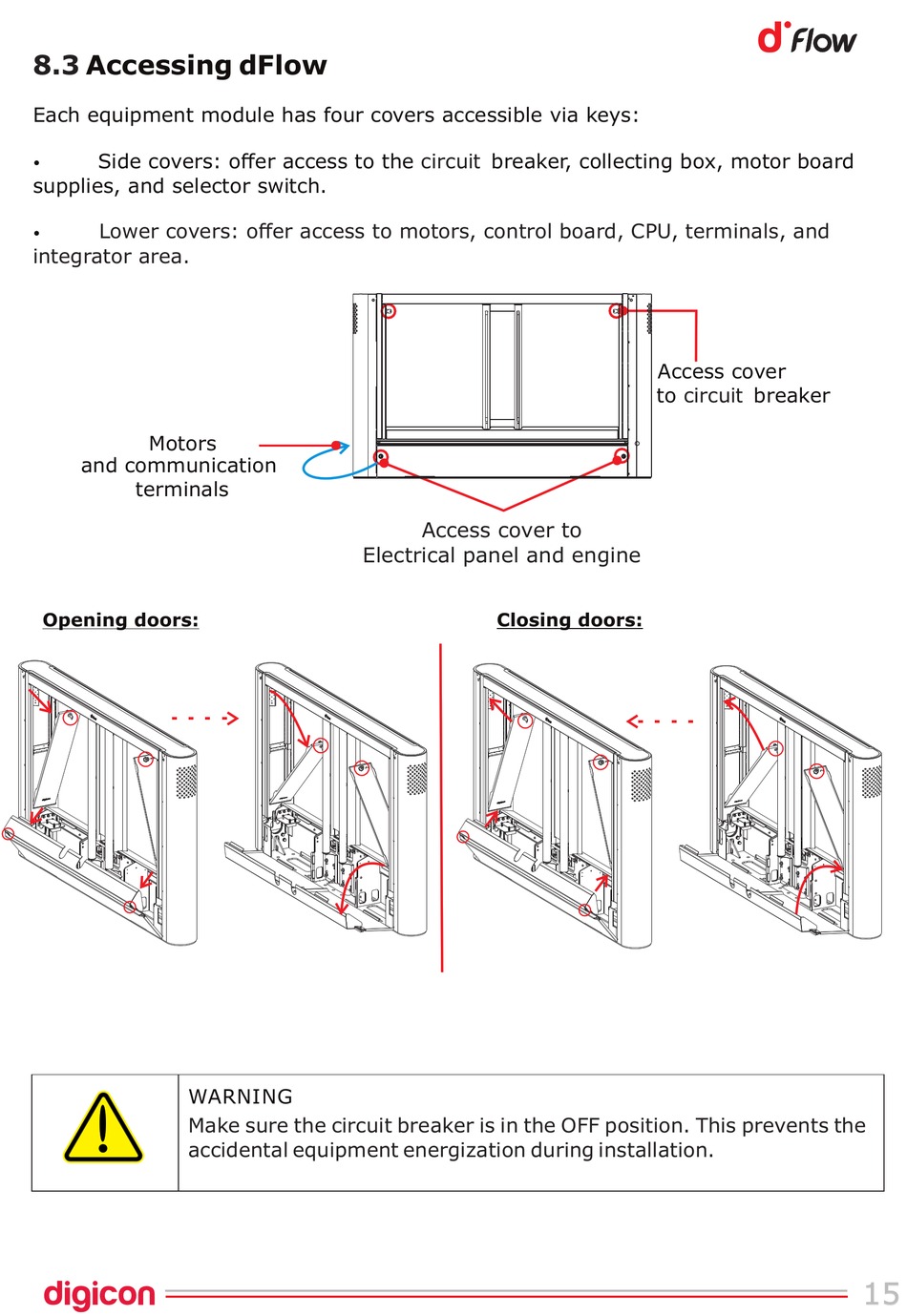

Accessing dFlow

Each equipment module has four covers accessible via keys:
Side covers: offer access to the
Ÿ
supplies, and selector switch.
Lower covers: offer access to motors, control board, CPU, terminals, and
Ÿ
integrator area.
Motors
and communication
terminals
Opening doors:
WARNING
Make sure the circuit breaker is in the OFF position. This prevents the
accidental equipment energization during installation.
circuit breaker, collecting box, motor board
Access cover to
Electrical panel and engine
Closing doors:
Access cover
to circuit breaker
