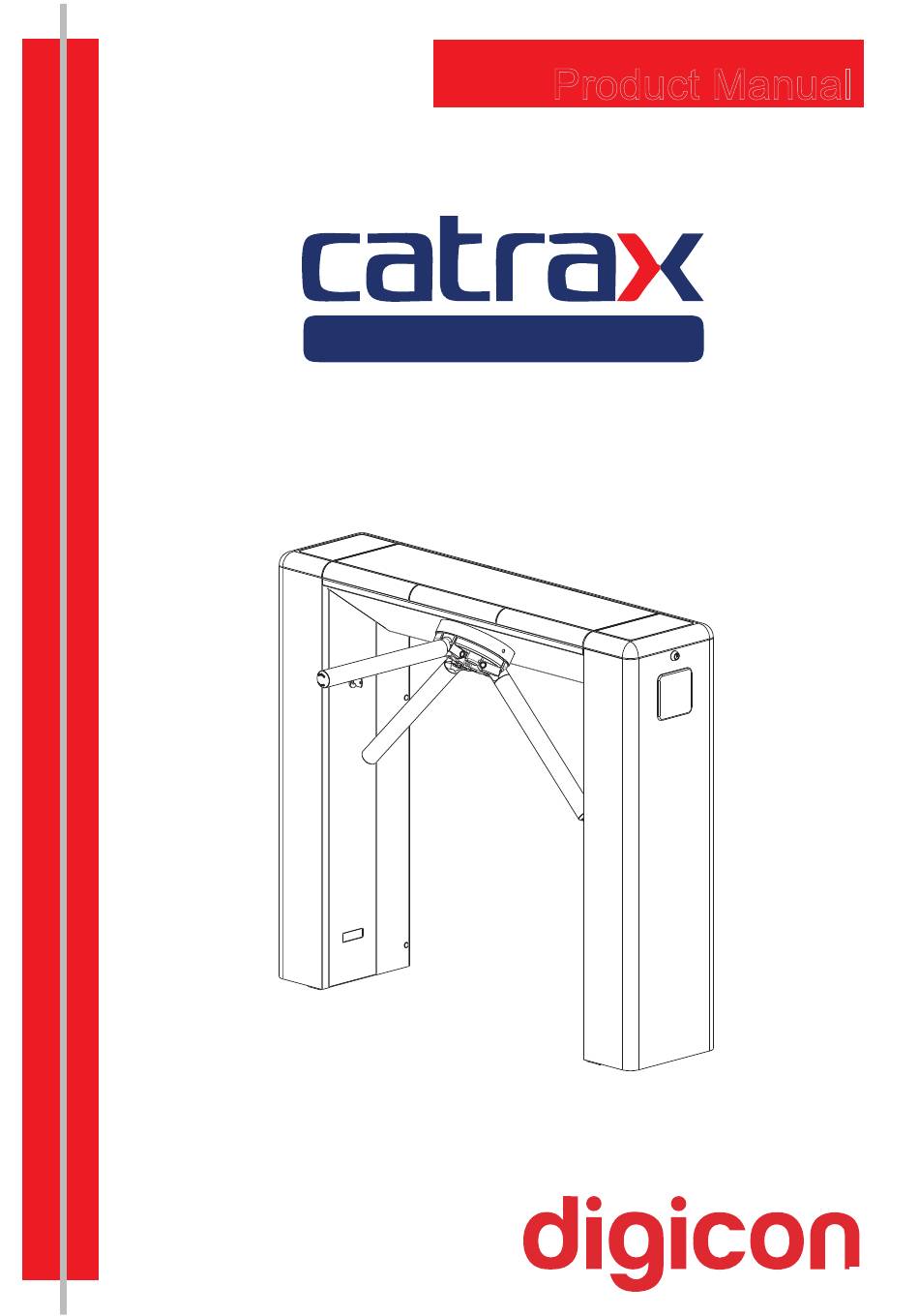

- Page 1 Product Manual master...
- Page 3 Digicon S.A Code: 069.31.251 English Version: 07 Digicon S.A. Controle Eletrônico para Mecânica This manual elabora ted by: Documentation Sector - EDS...
-
Page 4: Table Of Contents
Contents 1. Important instructions ................2. Orientations ................... 3. Introduction ..................Catrax Master 4. Features of ..............Catrax Master Operation ..............5. Installing/Assembling ................5.1 Unboxing ..................... 5.2 Floor drilling and column fixation ............5.3 Assembling the arms ................ -
Page 5: Important Instructions
You can see, below, the symbols that will appear in this manual, signaling important moments. It is essential to pay attention to them. TIP: Indicates something Digicon considers important. CAUTION: Indicates a moment of extreme caution when handling the equipment/product. -
Page 6: Orientations
· Keep this manual for future consultations. · Digicon reserves its right to alter its products at any moment to adapt them to more recent technical advancements. · Digicon maintains its right to alter the information contained in this manual without previous notice. -
Page 7: Features Of Catrax Master
4. Features of Catrax Master CATRAX Master, an access controller in the model blockage, presents three bidirectional, equidistant arms at 120 degrees with brushed stainless steel (AISI 304) finishing. CATRAX Master The structure of can present external finishing in brushed stainless steel (AISI 304) or 1020 carbon steel with electrostatic painting in black epoxy powder. - Page 8 master...
-
Page 9: Catrax Master Operation
As the items inside the package can vary (depending on the client's requests), it is important to perform a cautious visual inspection before installing and assembling the turnstile. A checklist that works as a guide during inspection accompanies all Digicon packages. -
Page 10: Floor Drilling And Column Fixation
5.2 Floor drilling and column fixation CATRAX Master Before installing , check: 1. The place chosen for the installation. 2. If there is a power source or electric socket nearby (ducts for connection). 3. If the place chosen is adequate for the installation of the access controller (indoors). -
Page 11: Assembling The Arms
After drilling the floor and installing the column, it is possible to assemble the arms, as shown below: INFORMATION: - The cover to access the screws is open/closed by pressure (fitting). - To assemble the arms, use an Allen n.5 wrench. CATRAX Master... -
Page 12: Accessing Catrax Master After Assembly
5.4 Accessing Catrax Master after assembly CATRAX Master After is installed and assembled, access to the interior of the equipment can be done with the key that accompanies the equipment, in three ways: external covers, central covers, or column door. See now the instructions for opening... - Page 13 3. Open the cover according to the following images: Note that the equipment structure contains a device that maintains the cover in the vertical position (see detail). CATRAX Master 4. The following image shows with all covers open. FRONTAL...
-
Page 14: Optional Items
6. Optional Items CATRAX Master is compatible with most access control technologies in the market today; however, Digicon offers a range of optional items that allow enhancing and matching the equipment's performance to the client's needs. See the description of each of these items: 6.1 Rear closure kit... -
Page 15: Connection Of Collecting Kit To Control Board
6.3 Operational Pictogram Kit The operational pictogram kit visually signals the direction of passage (green arrows) or the blocking (red X) on the upper part of CATRAX Master. ATTENTION: The power supply has no ground wire connection. Grounding is done directly in the turnstile's casing, using the board-... -
Page 16: Orientation Pictogram Kit
The device is also capable of counting single pulses (as other counters available on the market). Digicon electronic counter is operated by means of a single button/key that gives access to all of its functions. Optionally, a key-operated button can be installed on the front panel. - Page 17 master Resetting the partial totalizer To reset the partial totalizer, it is necessary to access the partial visualization mode and then press the function key for about 3 seconds (or until all the digits are zero). Configuration of operation mode: The counter can be configured to count pulses or turns clockwise or anti-clockwise (the denomination “clockwise”...
-
Page 18: Power Supply
TIP: The power supply can be mounted to the board's support that accompanies CATRAX Master 6.7 Control board CATRAX Master control board was designed to meet most technologies of access control terminals in the market. The controller have mechanical features and layout CATRAX Master perfectly suited for the needs and it is one of the best options for the equipment's operation. - Page 19 master Signal Name/Description INPUTS (enables turn through voltage) +Vext1 (enables turn through dry contact – from right to left) HAB1 (enables turn through voltage) Vext2 (enables turn through dry contact – from left to right) HAB2 (available to auxiliary – maximum 500 mA) +12Vcc CLOCK1 (input for reader from left to right) DATA1 (input for reader from left to right)
-
Page 20: Inputs
CATRAX Plus. The cable of the box sensor (CN9) is provided alongside the collecting box kit (optional) CATRAX Master Particularly about the CN11 connector, pins 13 and 14: can be configured as follows to determine direction passage:... -
Page 21: Outputs
5 a 24 Vca ou cc 110 a 220 Vca ou cc The control board also has inputs for optical sensors (CN11) that monitor rotation without mechanical wear, and two opto-isolated inputs to clear the CATRAX Master if required. 6.7. Outputs CATRAX Master's board has outputs for return signals, electromagnets, pictogram, collecting box, and sound alarm. -
Page 22: Sound Alarm
Outputs Relay Outputs Inputs Acess control board Digicon Control board 6.7.2.5 Pictogram The pictogram's outputs are activated by NPN transistors (maximum 500 mA) at the moment of activation, the GND is sent through a corresponding output. 6.7.2.6. Pictogram connections Inputs... -
Page 23: Configuration Od Control Board - Switch Ds1
Wait for 10 seconds Wait for 15 seconds Habilitation per border* Habilitation per level** CATRAX Master * “Habilitation per border” means that will be enabled by a pulse at the entry border (NC inputs) or exit border (NO inputs). CATRAX Master ** “Habilitation per level”... -
Page 24: Serial Configuration
6.7.5 erial configuration CATRAX Master's control board allows serial configuration of the equipment. The communication protocol used is as follows: Size (LSB) Size (MSB) Commands Where: - STX represents beginning of transmission (0x02) - Size(LSB) is the byte with the least significant size component - Size(MSB) is the byte with the most significant size component - Commands is the information sent to the equipment (one or two bytes);... -
Page 25: Anti-Panic System
Anti-panic system CATRAX Master has an electromechanical device for anti-panic system (also called drop-arm device). The mechanism is composed by a mechanical set activated by high-performance solenoid, maintaining the arm raised during normal operation. In case of power outage (when the installation has no no-break), or through a... -
Page 26: Power Connection
The control board and monitoring that integrates the device is presented below. The anti-panic system requires a power of 12Vcc 2A. Optionally, Digicon also provides a switched-mode power supply (code 019.01.334). To avoid overheating of the solenoid, the control board has an automatic routine that reduces its voltage to 6Vcc two seconds after the turnstile is turned on. -
Page 27: Assembling The Arms
master 6.8.2 Assembling the arms The arms are provided disassembled. To assemble them, follow the instructions provided below: The wrench used for assembling must be an Allen n.8 and the screw must be tightened to the maximum to ensure good fixation. All three arms must be attached to the same central upper point. -
Page 28: Maintenance Tests
Ÿ turn the turnstile off; Ÿ check if the arm drops (if the arm does not drop, contact the dealer or Digicon); Ÿ turn the turnstile on; Ÿ raise the arm until it reaches its normal position (the arm must stay in horizontal Ÿ... -
Page 29: Maintenance
master 7. Maintenance 7.1 Preventive and corrective routine maintenance Sphere base – Periodicity: every 700,000 cycles The wear of the spheres' track must be checked Corrective actions: 1. In case of excessive wear (chipping, perforations, fillings or grooves where the sphere turns) replace the part. - Page 30 master Corrective actions: 1. if you spot an incorrect resistance, a short-circuit or open electromagnet, replace 2. if the electromagnet is not working, check the board or the voltage 3. if the electromagnet is moving, fasten the base screws. Electromagnets adjustments (if necessary) 1.
-
Page 31: Solving Problems
Ÿ blown Optical sensors obstructed or Ÿ Perform the preventive routine defective Ÿ CATRAX Master is locked Ÿ maintenance on the sensors or forward the equipment to the Technical Assistance CATRAX Master does not The cable is broken or the Ÿ... -
Page 32: Technical Characteristics
master 8. Technical characteristics 8.1 Dimensions (16,732") 1116 (43,937") (25,866") (5,905") (19,685") 1300 (51,181") INFORMAÇÃO: The measures presented in this manual are in millimeters. - Page 33 master Others information Gross weight: Approx. 60 kg (package included) Distance between arms 120 degrees Electromagnets power 12 Vcc and 2 A Sensor’s power 5 Vcc and 0,05 A Power supply (optional) Input: 100 Vca a 240 Vca Output: 12,0 Vca ± 5% / 3 A Dimensions: 35 x 51 x 105 mm Distance between holes: 43 x 98 mm Diameter of holes: 3,5 mm...
-
Page 34: Cleaning
master 9. Cleaning 9.1 Maintenance and conservation of stainless steel: Do not use chemicals, bleaches or cleaning products for household use; Routine cleaning: The best products to conserve stainless steel are water, soap, mild and neutral detergents and ammonia-based removers diluted in lukewater and applied with a soft cloth or a nylon sponge. - Page 35 master Intense Dirt / Strong Stains: Make an application of warm or hot detergent, or a solution of an ammonia-based remover (household removers) and water. If this is not enough to soften burned foods or charred deposits, use more aggressive products, such as caustic soda removers used in household cleaning.
-
Page 36: Warranty And Technicalassistance
10.Warranty and TechnicalAssistance Digicon is responsible for the project, skilled labor, and quality of the materials used in the manufacturing of our products, ensuring that the equipment and all parts are free of manufacturing defects or problems. Digicon commits itself to replace or repair, as we choose, any part or equipment presenting manufacturing defects without any costs to the buyer, in our factory in Gravataí... - Page 38 94045 -420 Sales: (0xx51) 3489.8700 / 3489.8745 Technical assistance: (0xx51) 3489.8903 Email: vendas.acesso@digicon.com.br Branch office/ SP Development, Technical Assistance, and Sales Street São Paulo, 82 - Alphaville. Barueri/ SP CEP 06465 -130 Sales: (0xx11) 3738.3500 Email: vendas.acesso@digicon.com.br Home page: www.digicon.com.br...
