digicon d'Flow Product Manual page 13

Model 1100
III.

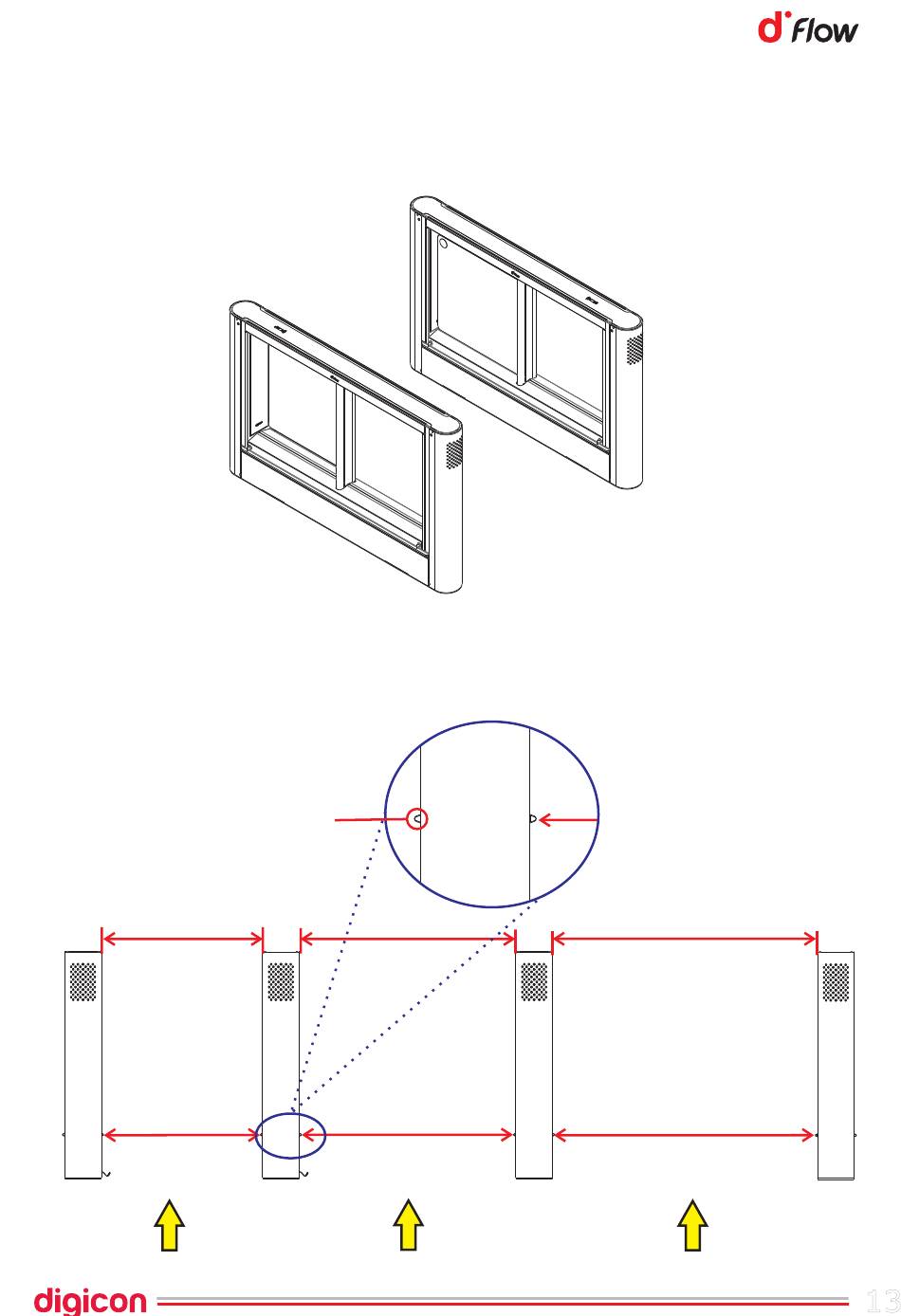

In this model, the passage width measures 1120 millimeters. Exclusively in this model
the doors are centralized, which does affect the bidirectional, simultaneous flow and
allows access to Special Needs Users.
NOTE – Each dFlow passage has 2 bumpers (left and right) whose function is to
protect the equipment against mechanical shocks. The bumpers, with 10 mm each,
reduce the useful passage width from 1140/940/540 mm to 1120/920/520 mm in the
active area.
540mm
(21.259")
520mm
(20.472")
Transmitter
Entry
Bumper
940mm
(37.007")
920mm
(36.220")
Receiver /
Transmitter
Entry
1140mm
(44,881")
1120mm
(44,094")
Receiver /
Transmitter
Transmitter
Entry
13
