Drilling and anchorage

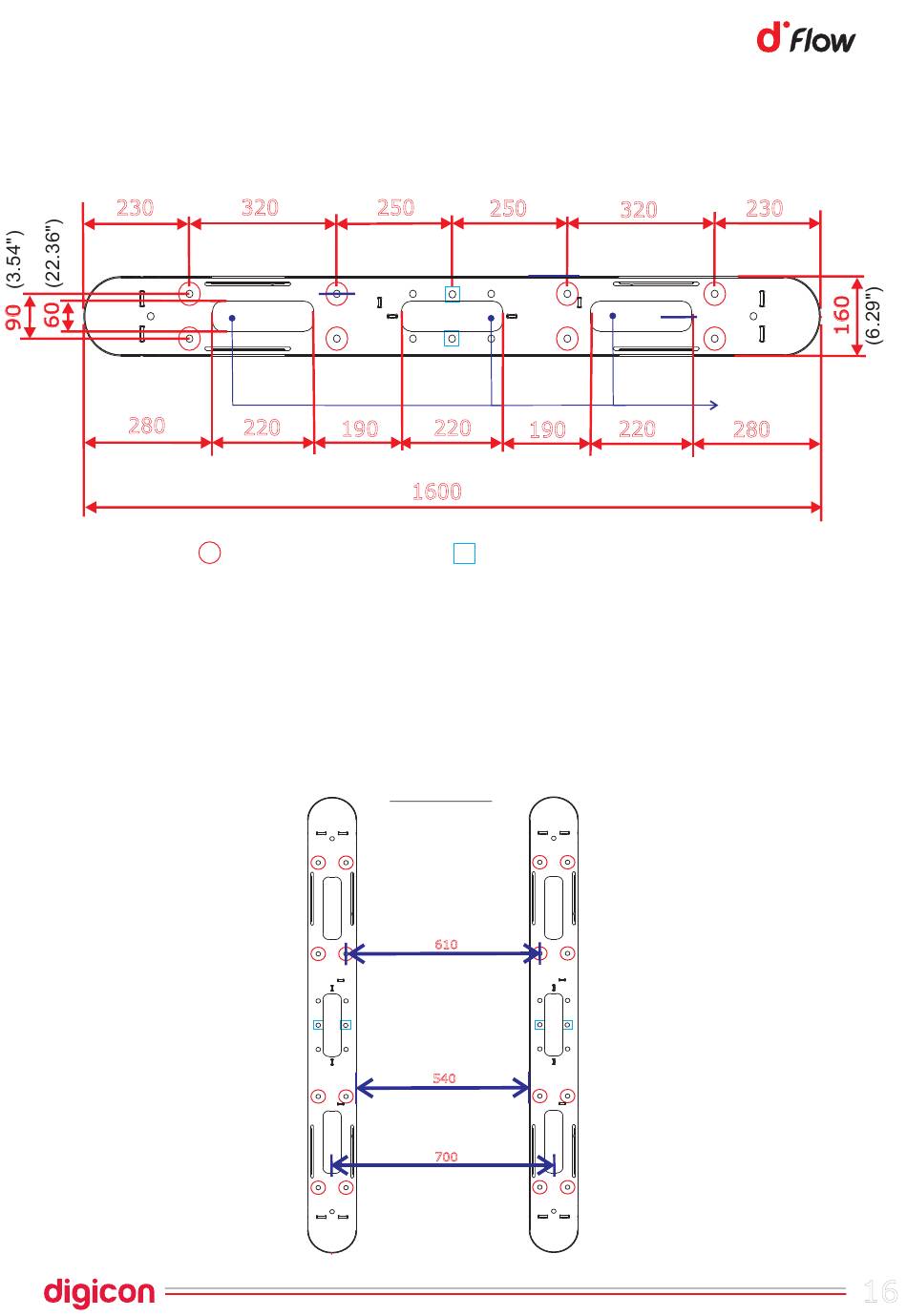

To anchor the equipment to the floor, we must prepare the drill holes according to the
measures shown below:
230
(9.05")
280
(11.02")
NOTE - Make sure the installation surface is steady and leveled to ensure door
alignment and a better sensor performance.
Place the equipment or templates in the correct installation place and check ifi t corresponds
to the model purchased by the customer. Below you can see the measurements according to
the models:
320 250
(9.84")
(12.59")
220
190
(7.48")
(8.66")
- Fixation points
Model 500
250
(9.84")
220
190
(8.66")
(7.48")
1600
(62.99")
- Optional fixation points
610
(24.015")
540
(21.259")
700
(27.559")
230
320
(9.05")
(12.59")
Cables passage
220 280
(8.66")
(11.02")
