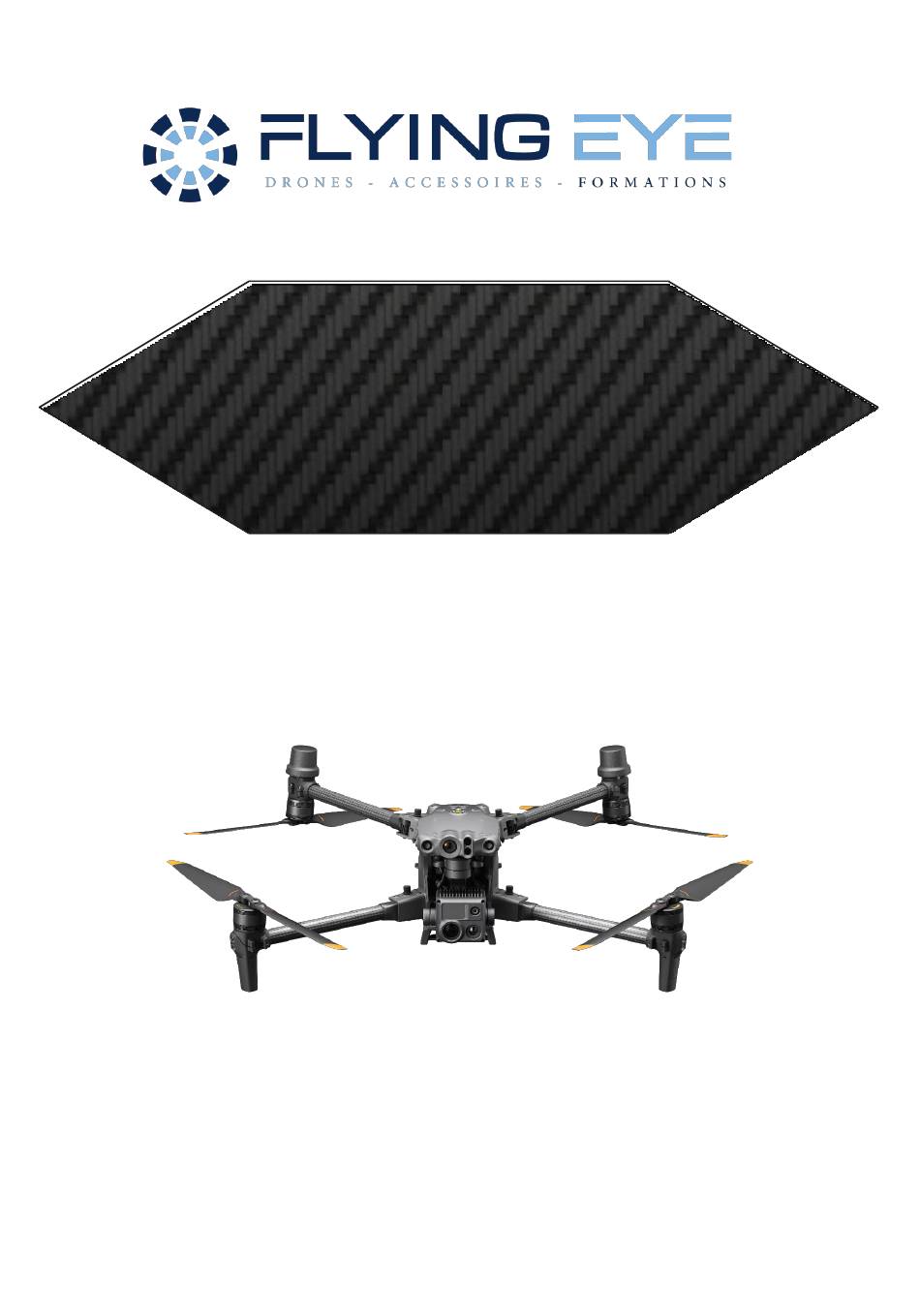

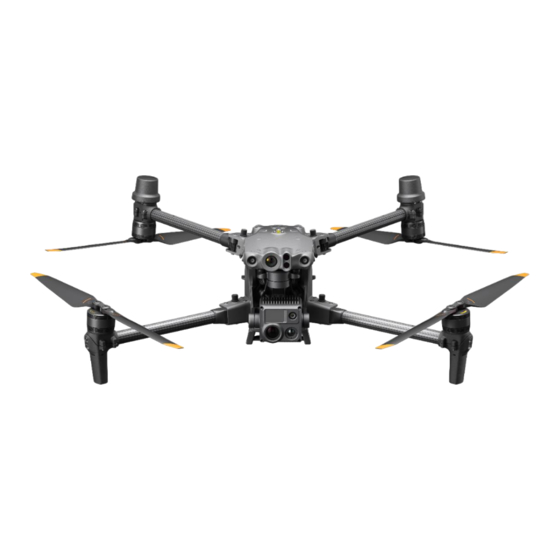

  • Page 1 Parachute and Circuit Breaker System DJI MATRICE 30 Read this manual carefully before handling the parachute system.
  • Page 2 OPERATING INSTRUCTIONS PRESENTATION Flying Eye is your partner in drone technology since 2009. We develop parachute systems since the appearance of the drone regulation in 2012. Pyrotechnic system from aviation technology, you have the most efficient and lightest system on the market. Flying Eye could not be held responsible for any malfunction or inefficient operation.

  • Page 3: Warnings And Precautions For Use

    OPERATING INSTRUCTIONS WARNINGS AND PRECAUTIONS FOR USE Flying Eye may suspend the warranty and disclaim any liability to anyone who fails to observe the basic safety precautions set forth below. Flying Eye is not responsible for any damage or injury directly or indirectly related to the use of the fireworks or by the use of fireworks that do not meet the safety requirements and standards.

  • Page 4: Technical Description

    DESCRIPTION : Reliable and lightweight safety system for the S2 and S3 certification of the DJI MATRICE 30. It includes a double ultra fast parachute, a circuit breaker, an alarm and a secure radio trigger that is attached to the pilot's remote controller.
  • Page 5 OPERATING INSTRUCTIONS CONTENT: - 2 parachute pods - 1 left exoskeleton - 1 right exoskeleton - 1 battery module - 1 Buzzer - 1 long screw - 2 charging plugs - 2 pyrotechnic charges - 1 remote control - 2 test leds - 2 battery latches - 1 locking screw for radio control support - 1 remote control support...
  • Page 6 OPERATING INSTRUCTIONS REMOTE CONTROL PARACHUTE Charge level of the radio control : To check the charge level, press the "POWER" button once. To check the charge level, press the "POWER" button once, the indicator lights will appear. Switching on : To switch on the radio control parachute, press and hold the "POWER"...
  • Page 7 OPERATING INSTRUCTIONS The different alerts on the remote controller of the system : Operational system Loss of connection with the drone Safety pin in place Missing pyrotechnic charge(s) Triggering the system FLYSAFE-M30 Version 1.05 20/01/2023 Version matériel 1.05...
  • Page 8 OPERATING INSTRUCTIONS ASSEMBLY OF RADIO CONTROL PARACHUTE OPERATING MODE Take the following 3 pieces (and the M30 radio control): Radio control Parachute RC support Support screw Insert the RC bracket on the parachute radio control and screw the 2 small screws with an allen key (supplied with the M30) as below: Then attach it to the M30 radio control by inserting the 2 small pins of the RC bracket into the 2 holes (orange arrows) and then insert the screw of the bracket into the thread of the M30 radio control (green arrow) as...

  • Page 9: Installation

    OPERATING INSTRUCTIONS INSTALLATION Installation of the battery locks: Replace the original M30 locks with those supplied with the system and check the springs, be careful not to invert the springs (left spring to left / right spring to right): Then install the exoskeleton (right and left) on the M30: FLYSAFE-M30 Version 1.05 20/01/2023...
  • Page 10 OPERATING INSTRUCTIONS Insert the exoskeleton as below: Then screw in the long screw to hold the exoskeleton in place on the M30 : Insert the electronic tabs on the battery module as shown below: FLYSAFE-M30 Version 1.05 20/01/2023 Version matériel 1.05...
  • Page 11 OPERATING INSTRUCTIONS Insert it into the battery compartment of the M30 (all the way to the bottom), pushing the tabs slightly inwards so that they do not rub against the side: Then screw the tabs onto the exoskeleton: FLYSAFE-M30 Version 1.05 20/01/2023 Version matériel 1.05...
  • Page 12 OPERATING INSTRUCTIONS Then insert the buzzer (slightly at an angle) on the battery module and re-center it once inserted: Insert the M30 batteries all the way in and lock them with the previously installed locks (keep the drone switched off): FLYSAFE-M30 Version 1.05 20/01/2023...
  • Page 13 OPERATING INSTRUCTIONS Insert the pin before installing the pyrotechnic charges: FLYSAFE-M30 Version 1.05 20/01/2023 Version matériel 1.05...
  • Page 14 OPERATING INSTRUCTIONS Finally install the parachute pods: FLYSAFE-M30 Version 1.05 20/01/2023 Version matériel 1.05...

  • Page 15: Functional Test

    OPERATING INSTRUCTIONS FUNCTIONAL TEST Before each flight, you must check all the components of the system and verify its integrity. If any anomaly is found, do not proceed with the flight and contact your dealer. Test for proper operation on the ground: - Ensure that the entire drone system is powered down.

  • Page 16: Storage And Warranty

    OPERATING INSTRUCTIONS MAINTENANCE ANNUAL MAINTENANCE Change of pyrotechnic charges every 12 months (contact dealer). Ventilation of the sail for 24 hours, inspection of the cloth, lines and folding. For an optimal functioning of the system, the annual maintenance of the sail is essential (contact your dealer).
  • Page 17 Contact Us : Flying Eye 80 route des lucioles Bat. I14 06560 SOPHIA ANTIPOLIS Mail : info@flyingeye.fr Phone : 09 72 62 78 50...
