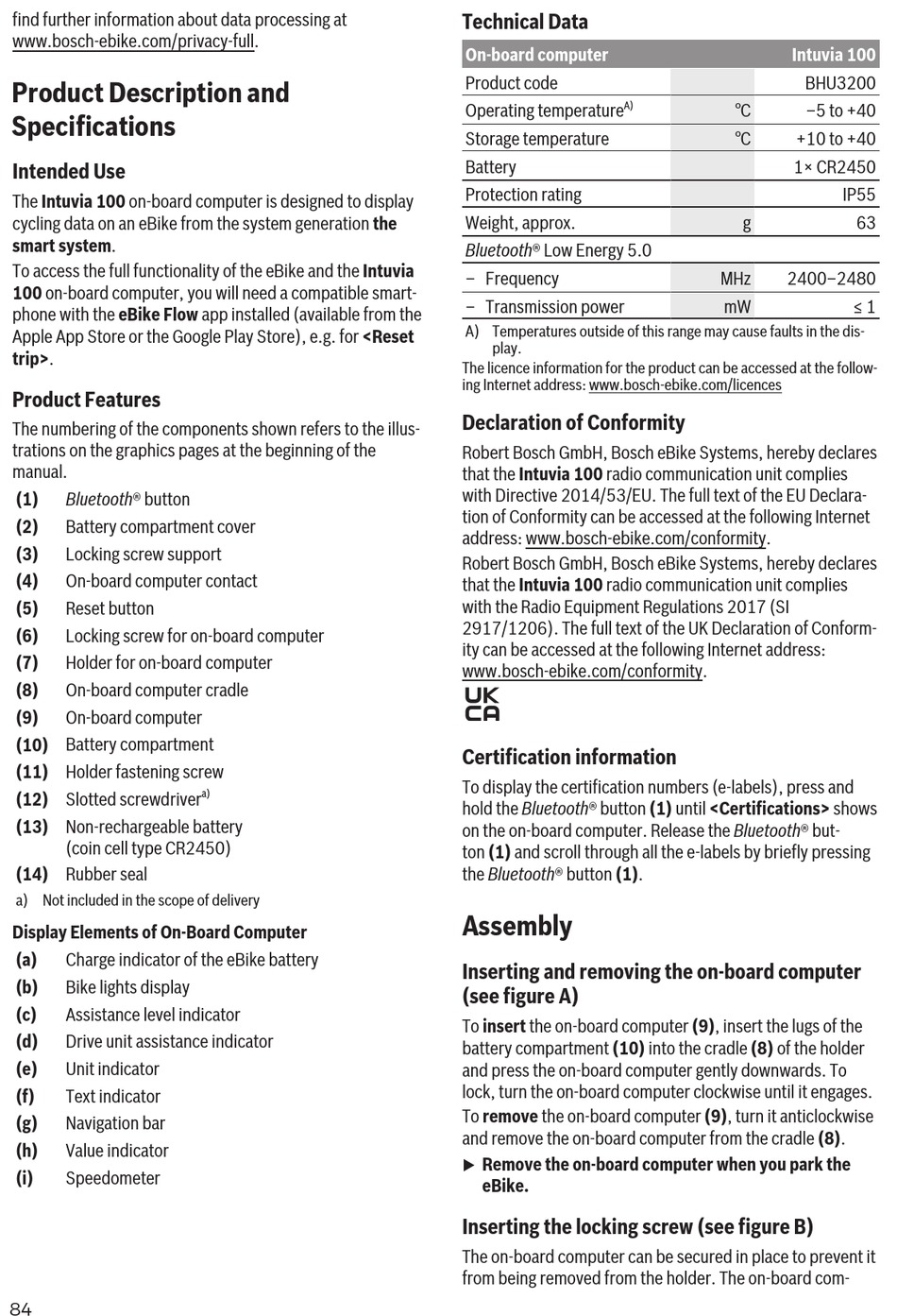

English – 2
find further information about data processing at
www.bosch-ebike.com/privacy-full.
Product Description and
Specifications
Intended Use
The Intuvia 100 on-board computer is designed to display
cycling data on an eBike from the system generation the
smart system.
To access the full functionality of the eBike and the Intuvia
100 on-board computer, you will need a compatible smart-
phone with the eBike Flow app installed (available from the
Apple App Store or the Google Play Store), e.g. for <Reset
trip>.
Product Features
The numbering of the components shown refers to the illus-
trations on the graphics pages at the beginning of the
manual.
(1) Bluetooth® button
(2) Battery compartment cover
(3) Locking screw support
(4) On-board computer contact
(5) Reset button
(6) Locking screw for on-board computer
(7) Holder for on-board computer
(8) On-board computer cradle
(9) On-board computer
(10) Battery compartment
(11) Holder fastening screw
(12) Slotted screwdriver
(13) Non-rechargeable battery
(coin cell type CR2450)
(14) Rubber seal
a) Not included in the scope of delivery
Display Elements of On-Board Computer
(a) Charge indicator of the eBike battery
(b) Bike lights display
(c) Assistance level indicator
(d) Drive unit assistance indicator
(e) Unit indicator
(f) Text indicator
(g) Navigation bar
(h) Value indicator
(i) Speedometer
84
0 275 007 3BI | (03.02.2023)
a)
Technical Data
On-board computer
Product code
Operating temperature A)
Storage temperature
Battery
Protection rating
Weight, approx.
Bluetooth® Low Energy 5.0
– Frequency
– Transmission power
A) Temperatures outside of this range may cause faults in the dis-
play.
The licence information for the product can be accessed at the follow-
ing Internet address: www.bosch-ebike.com/licences
Declaration of Conformity
Robert Bosch GmbH, Bosch eBike Systems, hereby declares
that the Intuvia 100 radio communication unit complies
with Directive 2014/53/EU. The full text of the EU Declara-
tion of Conformity can be accessed at the following Internet
address: www.bosch-ebike.com/conformity.
Robert Bosch GmbH, Bosch eBike Systems, hereby declares
that the Intuvia 100 radio communication unit complies
with the Radio Equipment Regulations 2017 (SI
2917/1206). The full text of the UK Declaration of Conform-
ity can be accessed at the following Internet address:
www.bosch-ebike.com/conformity.
Certification information
To display the certification numbers (e‑labels), press and
hold the Bluetooth® button (1) until <Certifications> shows
on the on-board computer. Release the Bluetooth® but-
ton (1) and scroll through all the e‑labels by briefly pressing
the Bluetooth® button (1).
Assembly
Inserting and removing the on-board computer
(see figure A)
To insert the on-board computer (9), insert the lugs of the
battery compartment (10) into the cradle (8) of the holder
and press the on-board computer gently downwards. To
lock, turn the on-board computer clockwise until it engages.
To remove the on-board computer (9), turn it anticlockwise
and remove the on-board computer from the cradle (8).
Remove the on-board computer when you park the
u
eBike.
Inserting the locking screw (see figure B)
The on-board computer can be secured in place to prevent it
from being removed from the holder. The on-board com-
Intuvia 100
BHU3200
°C –5 to +40
°C +10 to +40
1× CR2450
IP55
g 63
MHz 2400–2480
mW ≤ 1
