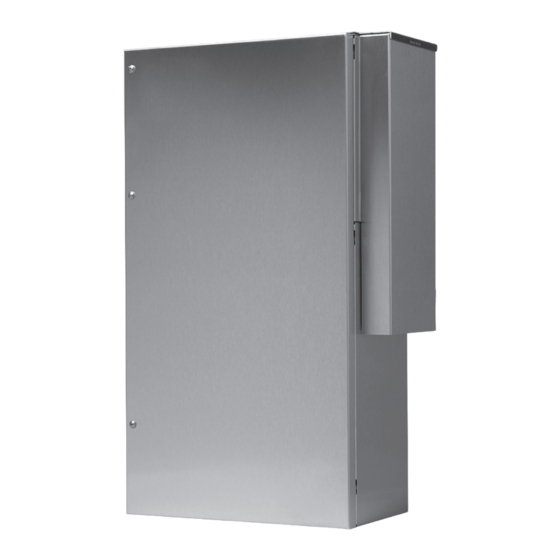

- Page 1 PROAIR Air Conditioner Cr43 Model INSTRUCTION MANUAL © 2013 Pentair Equipment Protection 89056831 Rev. D P/N 10-1008-130...
-
Page 2: Table Of Contents
NOTE: Some of the information in this manual may not apply if a special unit was ordered. If additional drawings for a special unit are necessary, they have been inserted. Contact Pentair Equipment Protection if further information is required. © 2013 Pentair Equipment Protection... -
Page 3: Receiving The Air Conditioner
Damage evident upon receipt should be noted on the freight bill. Damage should be brought to the attention of the delivering carrier -- NOT to Pentair Equipment Protection -- within 15 days of delivery. Save the carton and packing material and request an inspection. Then file a claim with the delivering carrier. -
Page 4: Installation Instructions
All operating parameters are programmable for custom applications. Refer to the Level II and III programming and Operating Instruction Manual, 10-1008-161. Figure 1 Level I control © 2013 Pentair Equipment Protection 89056831 - 4 -... -
Page 5: Technical Information
CR430825XXX 7000 7500 131/55 138/63 CR430826XXX 8500 7500 131/55 138/63 -XXX will be replaced with a three-digit number designating all desired options. Consult the factory for specific model numbers. DIMENSION DRAWING © 2013 Pentair Equipment Protection 89056831 - 5 -... -
Page 6: Mounting Cutout Dimension
4. Allow at least 4 inch inlet and 6 inch outlet clearance for proper ambient air flow. Allow 20 inch above filter for removal. Mounting gasket kit part no. 43-2000-09 as applied to rear of CR43. © 2013 Pentair Equipment Protection 89056831 - 6 -... -
Page 7: Components List
Thermostat, SPST, 55-100F 10-1061-16 10-1061-16 10-1061-16 10-1061-16 Mounting Gasket Kit 43-2000-09 43-2000-09 43-2000-09 43-2000-09 Relay, Compressor 10-1042-19 10-1042-17 10-1042-19 10-1042-17 Power Cord 52-6035-202 52-6035-202 52-6035-202 52-6035-202 Evaporator Coil 43-2002-01 43-2002-01 43-2002-01 43-2002-01 © 2013 Pentair Equipment Protection 89056831 - 7 -... -
Page 8: Parts List
Temperature controller Level I 52-6155-00 Level II (digital) 10-1106-14 Relay (Level II only) 10-1005-21 Transformer (Level II only) 115v 10-1006-94 / 230v 10-1006-93 Condenser Blower See Components List Condensate Pan 43-2017-00 Figure 2 © 2013 Pentair Equipment Protection 89056831 - 8 -... -
Page 9: Wire Diagrams And Schematics
WIRE DIAGRAMS AND SCHEMATICS WIRE DIAGRAMS, LEVEL 1 NOTE: For voltage, hertz, and options not shown in this manual, refer to the wiring diagram attached to the unit. © 2013 Pentair Equipment Protection 89056831 - 9 -... - Page 10 © 2013 Pentair Equipment Protection 89056831 - 10 -...
-
Page 11: Wire Diagram, Level Ii And Iii
WIRE DIAGRAM, LEVEL II AND III © 2013 Pentair Equipment Protection 89056831 - 11 -... -
Page 12: Schematic, Level Ii And Iii
SCHEMATIC, LEVEL II AND III © 2013 Pentair Equipment Protection 89056831 - 12 -... - Page 13 NOTES © 2013 Pentair Equipment Protection 89056831 - 13 -...
-
Page 14: Temperature Control
Continued operation under the above conditions can and will damage and shorten compressor life. The air conditioner is available with an easily removable inlet filter to facilitate necessary cleaning. There should be no reason to neglect this necessary maintenance. © 2013 Pentair Equipment Protection 89056831 - 14 -... -
Page 15: How To Remove, Clean Or Install A New Inlet Air Filter
CAUTION Operation of the air conditioner in areas containing airborne caustics or chemicals can rapidly deteriorate filters, condenser coils, blowers and motors, etc. Contact Pentair Technical Products for special recommendations. REFRIGERANT LOSS Each air conditioner is thoroughly tested prior to leaving the factory to insure against refrigeration leaks. Shipping damage or microscopic leaks not found with sensitive electronic refrigerant leak detection equipment during manufacture may require repair or recharging of the system. -
Page 16: Trouble Shooting
(replace control box cover for safety). This will bypass the switch in the thermostat. Turn on the power. If both blowers and the compressor come on, the thermostat needs to be replaced. © 2013 Pentair Equipment Protection 89056831 - 16 -... -
Page 17: Symptoms And Possible Causes
Unit blows breakers Short in system Drain plugged Getting water in enclosure Drain tube kinked Enclosure not sealed (allowing humidity in) For additional technical support, contact Pentair Equipment Protection at 800-896-2665. © 2013 Pentair Equipment Protection 89056831 - 17 -... -
Page 18: Warranty
Pentair Equipment Protection approval. Pentair Equipment Protection must be notified of a claim in writing not later than fourteen (14) days from the date when Buyer has become aware of such occurrence, or where the defect is such that it may cause damage, immediately, such notice containing a description of how the defect manifests itself. -
Page 19: Limitation Of Liability
B. All returns to Pentair Equipment Protection must be securely packed, using original cartons if possible. All returns must have the RMA number visible on the outside of the carton. Pentair Equipment Protection is not responsible for material damaged in transit. Any refrigerant-bearing Goods must be shipped upright for return. - Page 20 Pentair Equipment Protection 2100 Ho man Way Minneapolis, MN 55303 USA +1.763.422.2211 +1.763.576.3200 PentairEquipmentProtection.com © 2013 Pentair Equipment Protection 89056831 Rev. D P/N 10-1008-130...
