Summary of Contents for Pentair T-Series T15
-

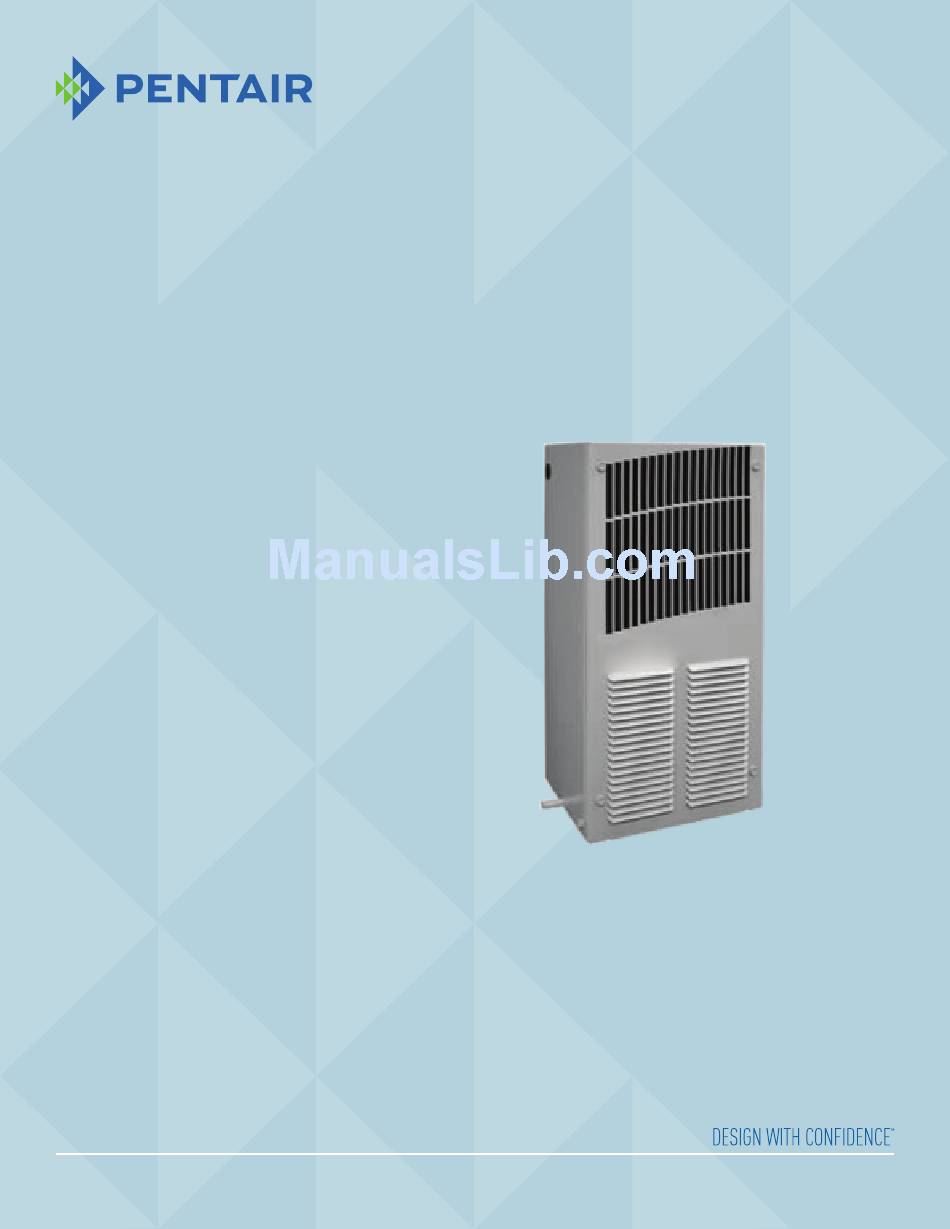

Page 1: Air Conditioner

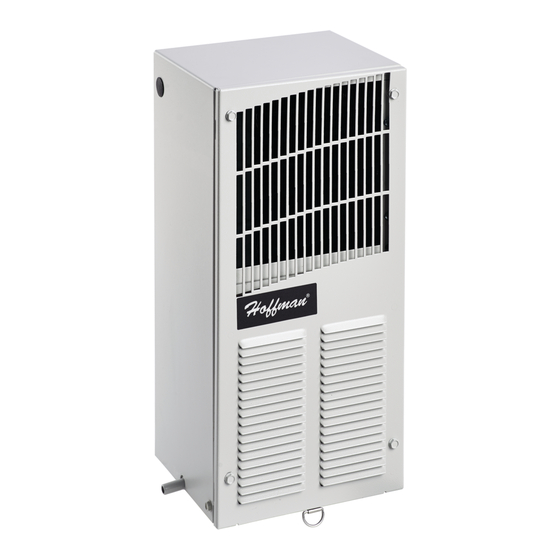

T-SERIES Air Conditioner t15 Model INSTRUCTION MANUAL © 2013 Pentair Equipment Protection 89059119 Rev. D P/N 10-1008-194... -
Page 2: Table Of Contents
LIMITATION OF LIABILITY ................................15 NOTE: Some of the information in this manual may not apply if a special unit was ordered. If additional drawings for a special unit are necessary, they have been inserted. Contact Pentair Equipment Protection if further information is required. -
Page 3: Receiving The Air Conditioner
Damage evident upon receipt should be noted on the freight bill. Damage should be brought to the attention of the delivering carrier -- NOT to Pentair Equipment Protection -- within 15 days of delivery. Save the carton and packing material and request an inspection. Then file a claim with the delivering carrier. -
Page 4: Installation Instructions
27/12.3 T150116GXXX 125/52 27/12.3 T150126GXXX 131/55 27/12.3 T150126GXXX 125/52 27/12.3 -XXX will be replaced with a three-digit number designating all desired options. Consult the factory for specific model numbers. DIMENSIONAL DRAWING © 2013 Pentair Equipment Protection 89059119 - 4 -... -
Page 5: Mounting Cutout Dimensions
Freeze stat 10-1033-26 10-1033-26 Service Cord 52-6035-140 52-6035-141 Terminal Block 10-1003-03 10-1003-03 Thermal Overload, Compressor 10-1007-67 10-1007-68 Thermostat, SPST, 55-100F 10-1061-16 10-1061-16 Optional Heater 10-2004-23 10-2004-24 Optional Malf Switch 52-6104-42 52-6104-42 © 2013 Pentair Equipment Protection 89059119 - 5 -... -
Page 6: Wire Diagrams
WIRE DIAGRAMS WITHOUT HEAT © 2013 Pentair Equipment Protection 89059119 - 6 -... -
Page 7: With Heat
WITH HEAT © 2013 Pentair Equipment Protection 89059119 - 7 -... -
Page 8: Schematics
SCHEMATICS With Heat Without Heat © 2013 Pentair Equipment Protection 89059119 - 8 -... -
Page 9: Temperature Control
During alarm the red and yellow wires will be closed and the blue and red wires will be open. Maximum electrical ratings for the switch are 13A for 120 VAC and 10A for 240 VAC. © 2013 Pentair Equipment Protection 89059119 - 9 -... -
Page 10: Maintenance
2. After flushing, allow filter to drain. Placing it with a corner down will assure complete drainage. 3. Recoat the filters with RP Super Filter Coat adhesive. When spraying filter do so from both sides for maximum concentration of adhesive. © 2013 Pentair Equipment Protection 89059119 - 10 -... -
Page 11: Condenser And Evaporator Air Movers
CAUTION Operation of the air conditioner in areas containing airborne caustics or chemicals can rapidly deteriorate filters, condenser coils, blowers and motors, etc. Contact Pentair Equipment Protection for special recommendations. REFRIGERANT LOSS Each air conditioner is thoroughly tested prior to leaving the factory to insure against refrigeration leaks. Shipping damage or microscopic leaks not found with sensitive electronic refrigerant leak detection equipment during manufacture may require repair or recharging of the system. -
Page 12: Trouble Shooting
(replace control box cover for safety). This will activate the switch in the thermostat. Turn the power on and if both fans and the compressor come on, the thermostat needs to be replaced. © 2013 Pentair Equipment Protection 89059119 - 12 -... -
Page 13: Symptoms And Possible Causes
Drain tube kinked Getting water in enclosure Enclosure not sealed (allowing humidity in) Mounting gasket damaged For additional technical information (i.e., amp draw, pressures, temperatures) , contact Pentair Equipment Protection at 800-896-2665. © 2013 Pentair Equipment Protection 89059119 - 13 -... -
Page 14: Warranty
Pentair Equipment Protection approval. Pentair Equipment Protection must be notified of a claim in writing not later than fourteen (14) days from the date when Buyer has become aware of such occurrence, or where the defect is such that it may cause damage, immediately, such notice containing a description of how the defect manifests itself. -
Page 15: Limitation Of Liability
B. All returns to Pentair Equipment Protection must be securely packed, using original cartons if possible. All returns must have the RMA number visible on the outside of the carton. Pentair Equipment Protection is not responsible for material damaged in transit. Any refrigerant-bearing Goods must be shipped upright for return. - Page 16 Pentair Equipment Protection 2100 Ho man Way Minneapolis, MN 55303 USA +1.763.422.2211 +1.763.576.3200 PentairEquipmentProtection.com © 2013 Pentair Equipment Protection 89059119 Rev. D P/N 10-1008-194...
