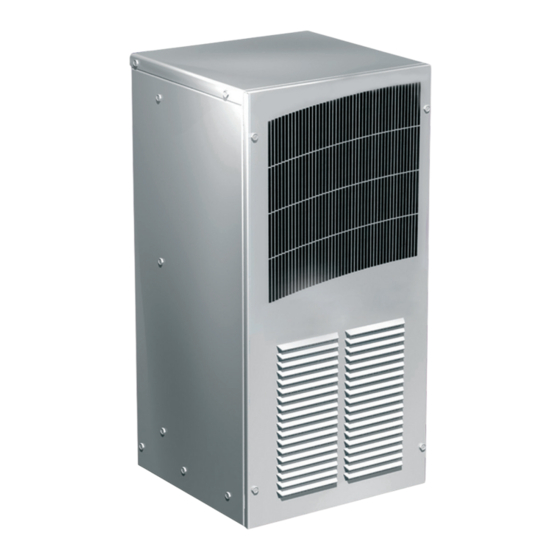

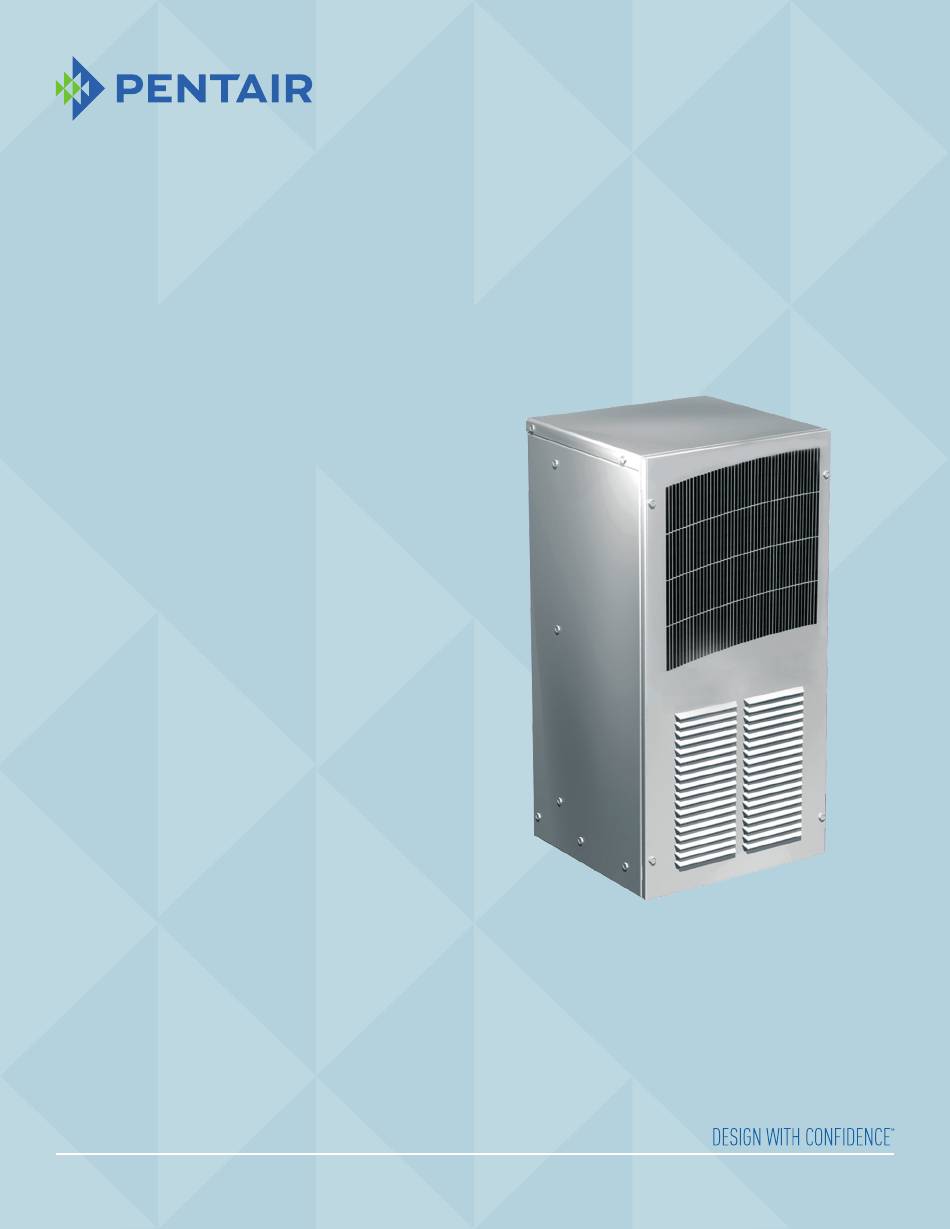

- Page 1 T-SERIES Air Conditioner t20 Model INSTRUCTION MANUAL © 2013 Pentair Equipment Protection 87976494 Rev. R P/N 10-1008-196...
- Page 2 LIMITATION OF LIABILITY ................................15 NOTE: Some of the information in this manual may not apply if a special unit was ordered. If additional drawings for a special unit are necessary, they have been inserted. Contact Pentair Equipment Protection if further information is required.
- Page 3 Damage evident upon receipt should be noted on the freight bill. Damage should be brought to the attention of the delivering carrier -- NOT to Pentair Equipment Protection -- within 15 days of delivery. Save the carton and packing material and request an inspection. Then file a claim with the delivering carrier.
- Page 4 50/60 1800/2000 131/55 56/25 T200226GXXX 50/60 1800/2000 125/52 56/25 -XXX will be replaced with a three-digit number designating all desired options. Consult the factory for specific model numbers. DIMENSIONAL DRAWING 87983203 © 2013 Pentair Equipment Protection 87976494 - 4 -...
- Page 5 Filter, Air, Reusable 89057620 89057620 Filter/Dryer 52-6028-03 52-6028-03 Service Cord 52-6035-140 52-6035-141 Thermal Overload, Compressor 10-1007-44 10-1007-52 Thermostat, SPST, 55-100F 10-1061-16 10-1061-16 Optional Heater 10-2004-25 10-2004-26 Optional Malfunction Switch 52-6104-42 52-6104-42 © 2013 Pentair Equipment Protection 87976494 - 5 -...
- Page 6 WIRE DIAGRAMS WITHOUT HEAT 88004542 © 2013 Pentair Equipment Protection 87976494 - 6 -...
- Page 7 WITH HEAT © 2013 Pentair Equipment Protection 87976494 - 7 -...
- Page 8 SCHEMATIC 87974300 © 2013 Pentair Equipment Protection 87976494 - 8 -...
- Page 9 (read change in amps of unit to determine when heating starts) and note the reading on the dial. Compare the two readings, they must be within ±3 F of each other. © 2013 Pentair Equipment Protection 87976494...
- Page 10 Continued operation under the above conditions can and will damage and shorten compressor life. The air conditioner is available with an easily removable inlet filter to facilitate necessary cleaning. There should be no reason to neglect this necessary maintenance. © 2013 Pentair Equipment Protection 87976494 - 10 -...
- Page 11 CAUTION Operation of the air conditioner in areas containing airborne caustics or chemicals can rapidly deteriorate filters, condenser coils, blowers and motors, etc. Contact Pentair Equipment Protection for special recommendations. REFRIGERANT LOSS Each air conditioner is thoroughly tested prior to leaving the factory to insure against refrigeration leaks. Shipping damage or microscopic leaks not found with sensitive electronic refrigerant leak detection equipment during manufacture may require repair or recharging of the system.
- Page 12 (replace control box cover for safety). This will activate the switch in the thermostat. Turn the power on and if both fans and the compressor come on, the thermostat needs to be replaced. © 2013 Pentair Equipment Protection 87976494 - 12 -...
- Page 13 Drain tube kinked Getting water in enclosure Enclosure not sealed (allowing humidity in) Mounting gasket damaged For additional technical information (i.e., amp draw, pressures, temperatures) , contact Pentair Equipment Protection at 800-896-2665. © 2013 Pentair Equipment Protection 87976494 - 13 -...
- Page 14 Pentair Equipment Protection approval. Pentair Equipment Protection must be notified of a claim in writing not later than fourteen (14) days from the date when Buyer has become aware of such occurrence, or where the defect is such that it may cause damage, immediately, such notice containing a description of how the defect manifests itself.
- Page 15 B. All returns to Pentair Equipment Protection must be securely packed, using original cartons if possible. All returns must have the RMA number visible on the outside of the carton. Pentair Equipment Protection is not responsible for material damaged in transit. Any refrigerant-bearing Goods must be shipped upright for return.
- Page 16 Pentair Equipment Protection 2100 Ho man Way Minneapolis, MN 55303 USA +1.763.422.2211 +1.763.576.3200 PentairEquipmentProtection.com © 2013 Pentair Equipment Protection 87976494 Rev. R P/N 10-1008-196...
