INSTRUCTION MANUAL FOR:

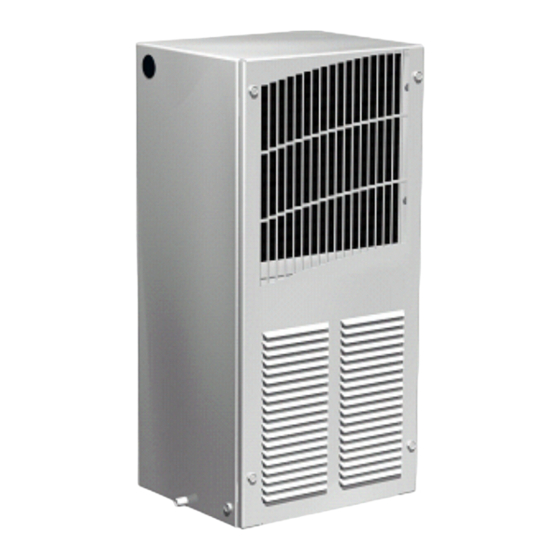

T15 AIR CONDITIONER
McLean Thermal
11611 Business Park Blvd. N Champlin, MN 55316
Tel: 763-323-8200 Fax: 763-576-3200
www.mcleanthermal.com
87922502

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the McLean Thermal T Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Pentair McLean Thermal T Series

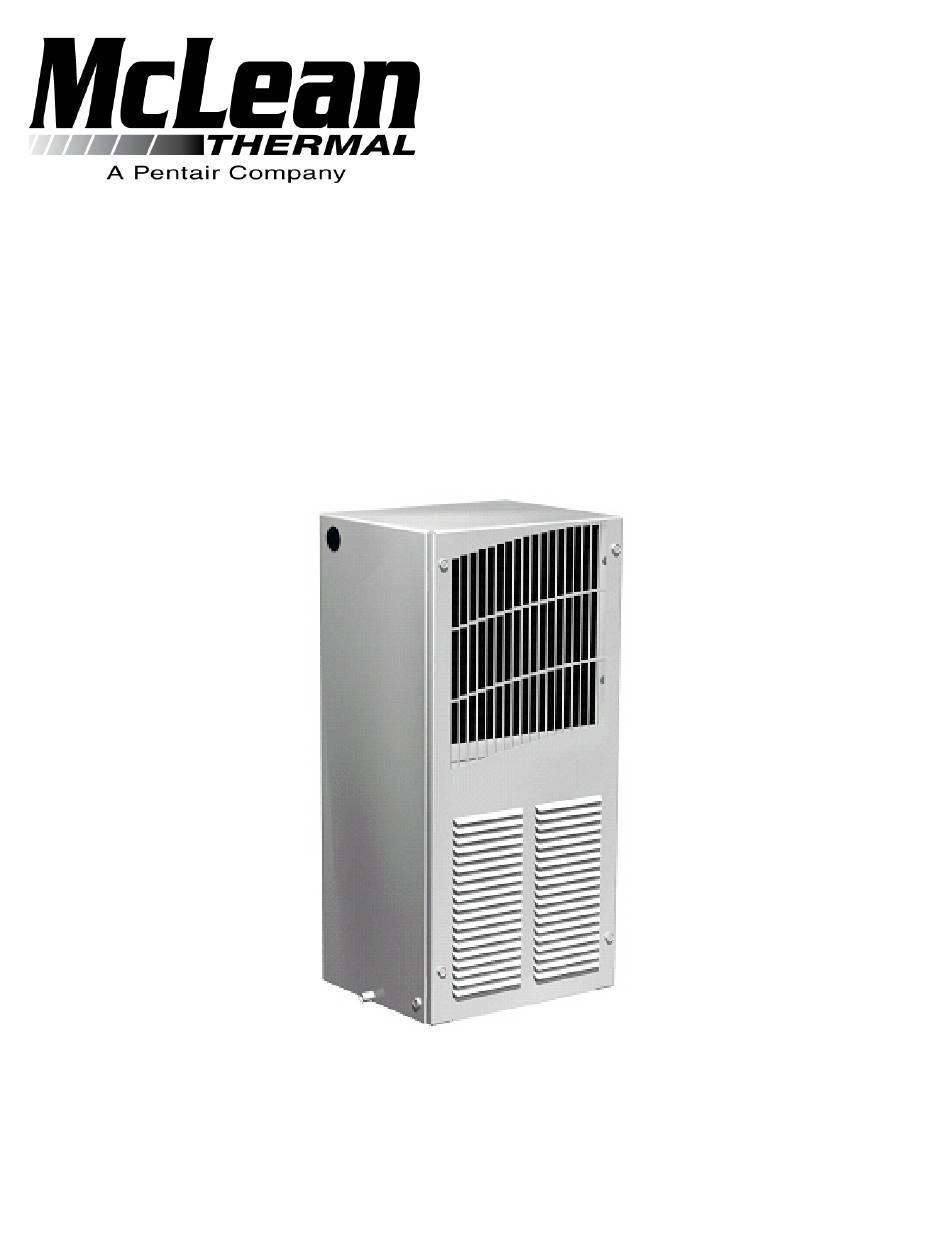

  • Page 1 INSTRUCTION MANUAL FOR: T15 AIR CONDITIONER McLean Thermal 11611 Business Park Blvd. N Champlin, MN 55316 Tel: 763-323-8200 Fax: 763-576-3200 www.mcleanthermal.com 87922502...
  • Page 2: Table Of Contents

    INSTRUCTION MANUAL TABLE OF CONTENTS Receiving the Air Conditioner................1 Handling and Testing the Air Conditioner ............1 Installation......................2 Design Data, Model Drawing................3 Mounting Instructions ..................4 Components List....................4 Wire Diagrams....................5 Temperature Control ..................6 Principles of Operation ..................6 Maintenance ....................
  • Page 3: Installation

    Operate the air conditioner for five (5) to ten (10) minutes. No excessive noise or vibration should be evident during this run period. The condenser blower (ambient air), the evaporator blower (enclosure air), and the compressor should be running. Condenser air temperatures should be warmer than normal room temperatures within a few minutes.
  • Page 4: Design Data, Model Drawing

    T15 Series 800-900 BTU/Hr. (235-264 Watts) H x W x D: 15.75" (400) x 7.50" (191) x 6.30" (160) Full BTU/Hr @ Shipping Load Max Amb Amb Temp Weight Model Voltage Amps Phase Temp Lbs/Kgs T15-0116-GXXX 131/55 27/12.3 T15-0116-GXXX 125/52 27/12.3 T15-0126-GXXX 131/55...
  • Page 5: Mounting Instructions

    T15 Mounting Cutout Dimensions T15 Series Components List Part Number Part Description 115V 230V Fan, Condenser 12-1012-01 12-1012-02 Fan, Evaporator 13-1015-01 13-1015-02 Capacitor, Compressor 52-6032-09 52-6032-10 Coil, Condenser 15-1001-02 15-1001-02 Coil, Condenser, Coated 15-1001-01 15-1001-01 Coil, Evaporator 15-1001-03 15-1001-03 Compressor 10-1016-82 10-1026-101 Filter, Air, Reusable...
  • Page 6: Wire Diagrams

    T15 Wire Diagram T15 Schematic 10-1008-194 Rev. 2 Page 5...
  • Page 7: Temperature Control

    TEMPERATURE CONTROL The electromechanical thermostat is factory preset to 75 F/23 C. To change the temperature setting, remove the nylon plug from the front face of the unit. Use a standard screwdriver to adjust thermostat. For cooler temperatures turn clockwise, for warmer temperatures turn counterclockwise.
  • Page 8 high compressor operating temperature causes automatic shut-down of the unit. The above described shut-down is symptomatic of a clogged or dirty filter, thus causing a reduction in cooling airflow across the surface of the compressor and condenser coil. Do not run the air conditioner for extended periods of time with the filter removed. Particles of dust, lint, etc., can plug the fins of the condenser coil which will give the same reaction as a plugged filter.
  • Page 9: Trouble Shooting

    TROUBLE SHOOTING Basic Air Conditioning Trouble Shooting Check List Check manufacturer’s nameplate located on the unit for correct power supply. Turn the power to the unit on. The evaporator (Enclosure or “COLD” air) fan should come on. Is there airflow? YES, proceed to step # 3.
  • Page 10 Symptoms and Possible Causes: SYMPTOM POSSIBLE CAUSE Unit won’t cool * Clogged fins on coil(s) * Dirty filter * fans not running * Compressor not running * Compressor runs, but has bad valves * Loss of refrigerant Compressor tries to start but won’t run * Low line voltage at start.
  • Page 11: Mclean Thermal Warranty

    McLEAN THERMAL WARRANTY Please note: Warranty effective at time of shipment. McLean Thermal warrants that all material and workmanship are free of defects in quality which impair the usefulness of the air conditioner or heat exchanger for a period of five (5) years for non-operating parts, except for the filter;...
