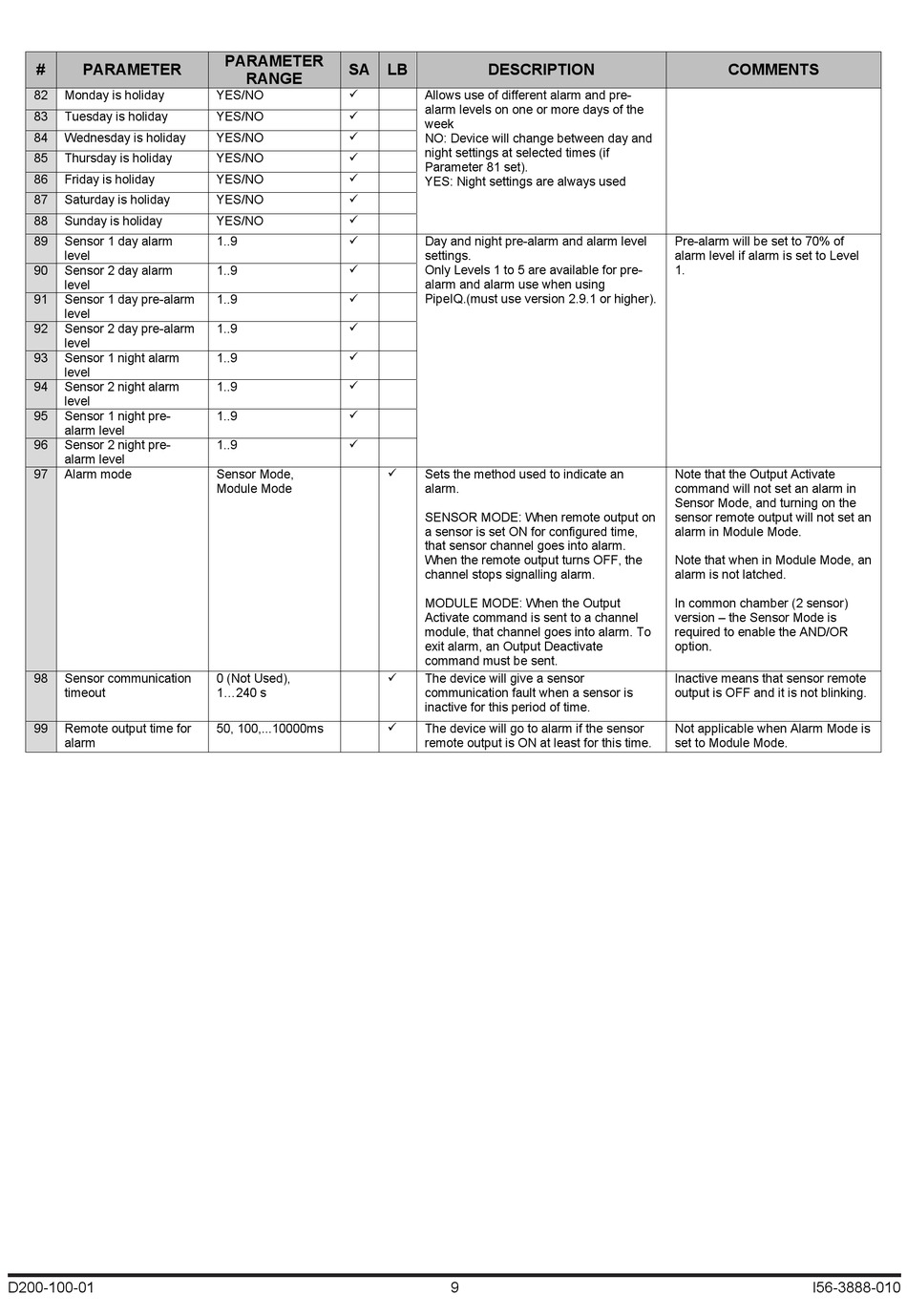

System Sensor FAAST LT-200 Setup Manual page 9

# PARAMETER
82 Monday is holiday
83 Tuesday is holiday
84 Wednesday is holiday
85 Thursday is holiday
86 Friday is holiday
87 Saturday is holiday
88 Sunday is holiday
89 Sensor 1 day alarm
level
90 Sensor 2 day alarm
level
91 Sensor 1 day pre-alarm
level
92 Sensor 2 day pre-alarm
level
93 Sensor 1 night alarm
level
94 Sensor 2 night alarm
level
95 Sensor 1 night pre-
alarm level
96 Sensor 2 night pre-
alarm level
97 Alarm mode
98 Sensor communication
timeout
99 Remote output time for
alarm
D200-100-01
PARAMETER
SA LB
RANGE
YES/NO

YES/NO

YES/NO

YES/NO

YES/NO

YES/NO

YES/NO

1..9

1..9

1..9

1..9

1..9

1..9

1..9

1..9

Sensor Mode,

Module Mode
0 (Not Used),

1...240 s
50, 100,...10000ms

DESCRIPTION
Allows use of different alarm and pre-
alarm levels on one or more days of the
week
NO: Device will change between day and
night settings at selected times (if
Parameter 81 set).
YES: Night settings are always used
Day and night pre-alarm and alarm level
settings.
Only Levels 1 to 5 are available for pre-
alarm and alarm use when using
PipeIQ.(must use version 2.9.1 or higher).
Sets the method used to indicate an
alarm.
SENSOR MODE: When remote output on
a sensor is set ON for configured time,
that sensor channel goes into alarm.
When the remote output turns OFF, the
channel stops signalling alarm.
MODULE MODE: When the Output
Activate command is sent to a channel
module, that channel goes into alarm. To
exit alarm, an Output Deactivate
command must be sent.
The device will give a sensor
communication fault when a sensor is
inactive for this period of time.
The device will go to alarm if the sensor
remote output is ON at least for this time.
9
COMMENTS
Pre-alarm will be set to 70% of
alarm level if alarm is set to Level
1.
Note that the Output Activate
command will not set an alarm in
Sensor Mode, and turning on the
sensor remote output will not set an
alarm in Module Mode.
Note that when in Module Mode, an
alarm is not latched.
In common chamber (2 sensor)
version – the Sensor Mode is
required to enable the AND/OR
option.
Inactive means that sensor remote
output is OFF and it is not blinking.
Not applicable when Alarm Mode is
set to Module Mode.
I56-3888-010
