Installation AND MAINTENANCE INSTRUCTIONS
1412A and 1424A Direct Wire
Ionization Smoke Detectors

Specifications

Diameter:
Height:
Weight:
Operating Temperature:
Operating Humidity:
Locking Alarm:
Relay Contact Ratings
Resistive or Inductive (60% power factor) load
Form A:
Form C:
Electrical Ratings:
System Voltage:
Supply Voltages:
Reset Voltages:
Standby Current:
Alarm Currents:
The alarm and auxiliary relay operate within the specified voltage ratings.
Reset Time:
Start-up Time:

Before Installing

Please thoroughly read the System Sensor manual I56-
407-XX, Guide for Proper Use of System Smoke Detec-
tors, which provides detailed information on detector
Spacing, placement, zoning, wiring, and special appli-
cations. Copies of this manual are available at no charge
from System Sensor. Please also refer to CAN/ULC-S524,
Standard for the Installation of Fire Alarm Systems and
CEC Part , Sec. 32..

General Description

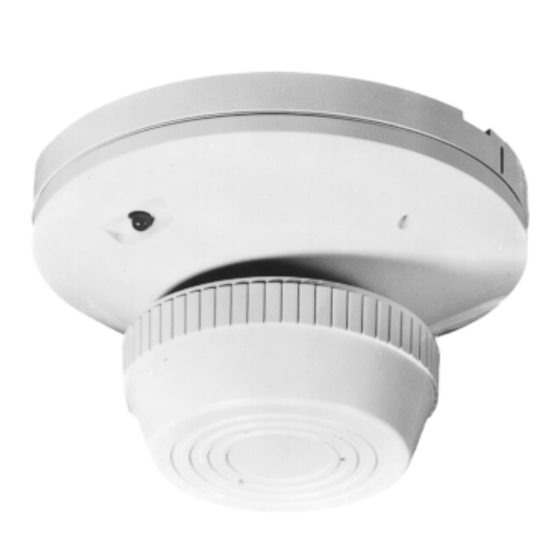

System Sensor 42A and 424A dual-chamber ionization
smoke detectors utilize state-of-the-art, unipolar sensing
chambers. These detectors are designed to provide open
area protection, and to be used with ULC-listed 4-wire
control panels. The 42A for 2 volt panels operates
at 2VDC, and the 424A for 24 volt panels operates at
24VDC. The detectors' operation and sensitivity can be
tested in place. These detectors are latching type system
detectors. When latched in alarm, the detectors must be
reset by a momentary power interruption.
An LED on the detector provides a local indication of the
D400-08-00 REV#-002
5.5 inches (4 cm)
3.2 inches (8.0 cm)
0.7 lb (30 gm)
0° to +49°C (32° to 20°F)
0% to 93% Relative Humidity Non-condensing
Reset by momentary power interruption.
2.0A @ 30VAC/DC
2.0A @ 30VAC/DC
1412A
2
.3
7.3
.73
00
35.2
77.0
0.3
30
detector's status. If power is applied to the detector, and
the detector is functioning properly in standby, the status
LED will blink every 0 seconds. In alarm, the LED will be
latched on continuously until the detector is reset.
Each detector contains one Form A (SPST-NO) contact
for connection to the alarm-initiating circuit, and one Form
C (SPDT-NO/NC) set of auxiliary contacts. Supervision of
detector power is accomplished by installing a Power Su-
pervisory End-of-Line Relay Module (A77-76) at the end
of the detector power loop. When power is applied to and
through the detectors, the EOL Power Supervisory Module
is energized. Its relay contacts close and provide a closed
series circuit in the control panel's alarm-initiating loop. A
power failure or a break in the detector power loop de-
energizes the EOL Module. The relay contacts open and
trigger a trouble signal at the control panel.

658 Kitimat Rd., Unit #6, Mississauga, Ontario, L5N 3T5
-800-SENSOR2, FAX: 905-82-077
1424A
24 DC (4V Maximum Ripple)
20 VDC Minimum
29 VDC Maximum
.8 VDC Minimum
00 µA Maximum
2.3 mA Minimum
40.6 mA Maximum
0.3 Seconds
30 Seconds
WWW.SYSTEMSENSOR.CA
I56-007-000
