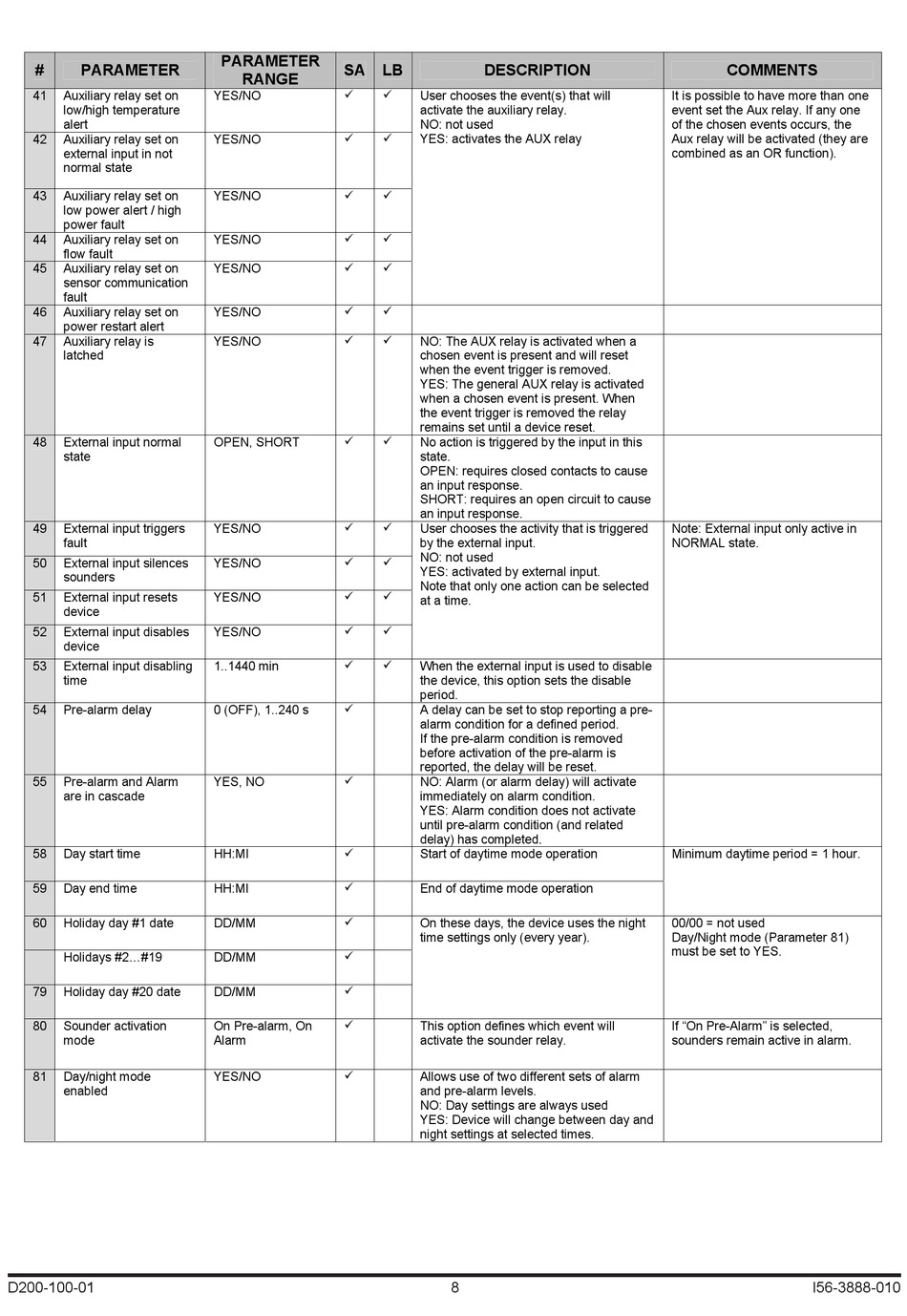

System Sensor FAAST LT-200 Setup Manual page 8

# PARAMETER
41 Auxiliary relay set on
low/high temperature
alert
42 Auxiliary relay set on
external input in not
normal state
43 Auxiliary relay set on
low power alert / high
power fault
44 Auxiliary relay set on
flow fault
45 Auxiliary relay set on
sensor communication
fault
46 Auxiliary relay set on
power restart alert
47 Auxiliary relay is
latched
48 External input normal
state
49 External input triggers
fault
50 External input silences
sounders
51 External input resets
device
52 External input disables
device
53 External input disabling
time
54 Pre-alarm delay
55 Pre-alarm and Alarm
are in cascade
58 Day start time
59 Day end time
60 Holiday day #1 date
Holidays #2...#19
79 Holiday day #20 date
80 Sounder activation
mode
81 Day/night mode
enabled
D200-100-01
PARAMETER
SA LB
RANGE
YES/NO
 
YES/NO
 
YES/NO
 
YES/NO
 
YES/NO
 
YES/NO
 
YES/NO
 
OPEN, SHORT
 
YES/NO
 
YES/NO
 
YES/NO
 
YES/NO
 
1..1440 min
 
0 (OFF), 1..240 s

YES, NO

HH:MI

HH:MI

DD/MM

DD/MM

DD/MM

On Pre-alarm, On

Alarm
YES/NO

DESCRIPTION
User chooses the event(s) that will
activate the auxiliary relay .
NO: not used
YES: activates the AUX relay
NO: The AUX relay is activated when a
chosen event is present and will reset
when the event trigger is removed .
YES: The general AUX relay is activated
when a chosen event is present . When
the event trigger is removed the relay
remains set until a device reset .
No action is triggered by the input in this
state .
OPEN: requires closed contacts to cause
an input response .
SHORT: requires an open circuit to cause
an input response .
User chooses the activity that is triggered
by the external input .
NO: not used
YES: activated by external input.
Note that only one action can be selected
at a time .
When the external input is used to disable
the device, this option sets the disable
period .
A delay can be set to stop reporting a pre-
alarm condition for a defined period .
If the pre-alarm condition is removed
before activation of the pre-alarm is
reported, the delay will be reset .
NO: Alarm (or alarm delay) will activate
immediately on alarm condition .
YES: Alarm condition does not activate
until pre-alarm condition (and related
delay) has completed .
Start of daytime mode operation
End of daytime mode operation
On these days, the device uses the night
time settings only (every year) .
This option defines which event will
activate the sounder relay .
Allows use of two different sets of alarm
and pre-alarm levels .
NO: Day settings are always used
YES: Device will change between day and
night settings at selected times .
8
COMMENTS
It is possible to have more than one
event set the Aux relay . If any one
of the chosen events occurs, the
Aux relay will be activated (they are
combined as an OR function) .
Note: External input only active in
NORMAL state .
Minimum daytime period = 1 hour .
00/00 = not used
Day/Night mode (Parameter 81)
must be set to YES.
If "On Pre-Alarm" is selected,
sounders remain active in alarm .
I56-3888-010
