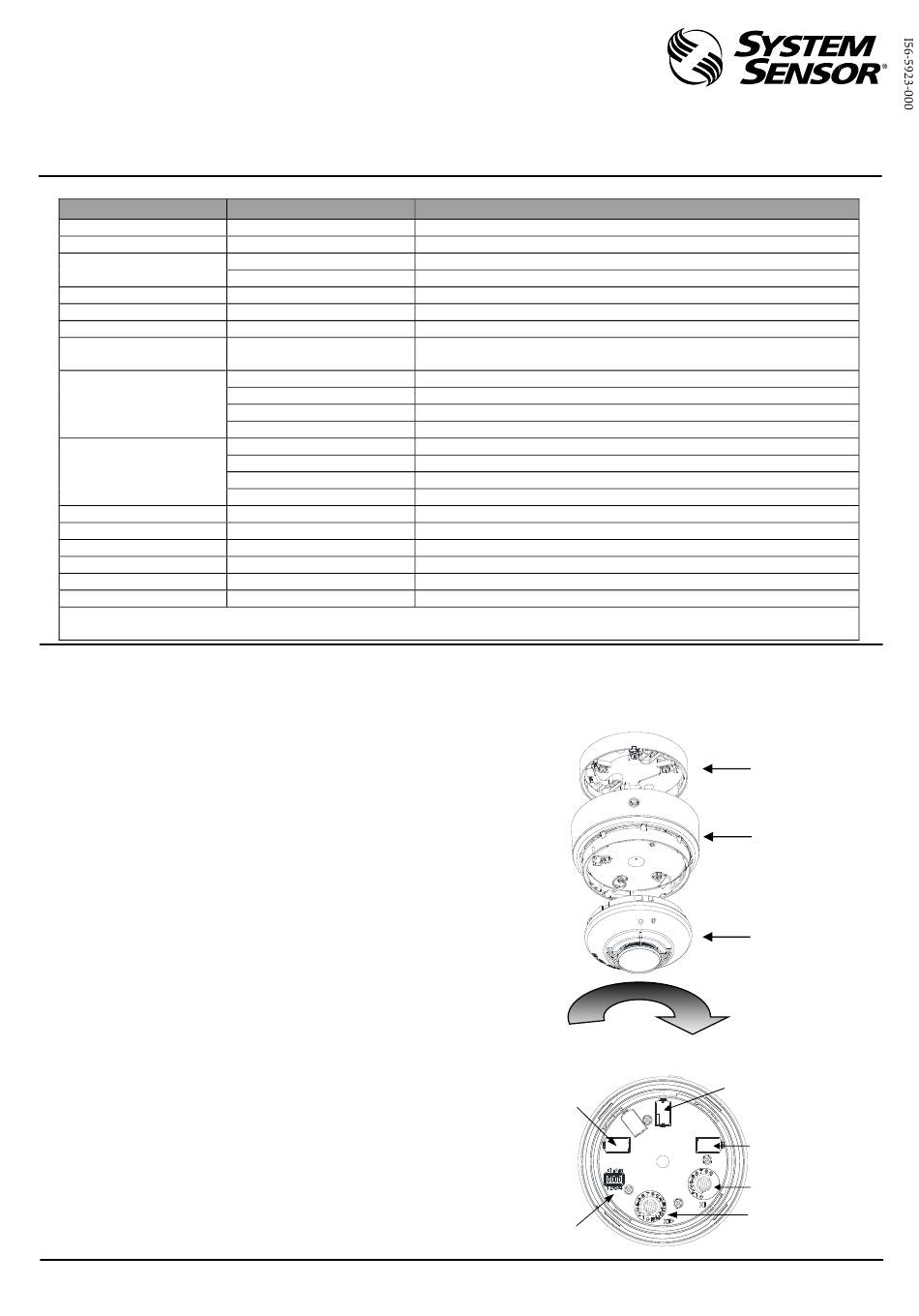

INSTALLATION AND MAINTENANCE INSTRUCTIONS
Model LASS-BSS-NC
Addressable Base Sounder&Strobe
SPECIFICATION
Item
Operating Voltage
Avg. Standby Current
Alarm Current
Operating Temp
Humidity
Ingress Protection
Approved Sound Pressure
Level
High Volume
Most Favorable Sound
Pressure Position
Low Volume
Most Favorable Sound
Pressure Position
Tone Type
Flash Pattern
Flash Intensity
Height
Diameter
Weight
Note: *Detailed description see table A
Meet the following Standards requirements：EN54-3 ，AS ISO 7240.3:2014
Before installing and using the product, please read the system wiring
and installation manual thoroughly. If the products will be installed in an
existing operational system, inform the operator and local authority that
the system will be temporarily out of service, disconnect power to the
control panel before installing the products.
NOTICE: This manual should be left with the owner/user of this
equipment.
GENERAL
LASS-BSS-NC is an intelligent addressable AV base designed to alarm
light/sound for emergency events, and be able to communicate with
control panel by intelligent protocol.
It is designed specifically for analogue addressable fire alarm system
and only can be connected to control panels with a compatible
proprietary analogue addressable communication protocol. It is
powered from the loop and can be controlled via the communication
protocol(s). The Base version is compatible with 200 series of
detectors and B501 mounting base. Up to 99 addresses are available
via two rotary selector switches. The sounders have 2 volume levels
(high/low) and 4 tone sets. The alarm light/sound can be tested on
field.
INSTALLATION
It must be installed and wired with B501 mounting base.
1. Verify the product type matches with product drawing.
2. Set the address via two rotary selector switches. Please refer to
"Address setting".
3. Volume and tone setting are realized by 4 digit DIP switch. On field
testing can be tested via DIP switch.
4. Plug the Sounder base into B501 mounting base.
5. Turn the Sounder base clockwise until it drops into place.
6. Continue turning the Sounder base clockwise to lock it in place.
7. Please refer to Detector Installation Instruction if 200 series
detector is needed.
SETTING
Address setting
Rotary-decade switches are provided for setting the base's address
whose range is from 1 to 99. (Default address is 01).
Address is set by turning the switches.
Address is calculated as below formula: Address = TENS *10 +
ONES*1. For instance: Address 05 = 0*10 + 5*1.
Tamper-resistant capability
Addressable Base sounder include a tamper-resistant capability that
prevents its removal from the B501 base and the removal of installed
detector without the use of a tool.
Parameter Description
24VDC( 15 to 32VDC)
<400µA
<11mA
<8.5mA
-10℃ to +55℃
10 to 95% R.H.
IP21C
83±4dB(A)
92±3dB(A)
95±3dB(A)
95±4dB(A)
94±7dB(A)
89±3dB(A)
89±3dB(A)
85±5dB(A)
85±5dB(A)
4
2
>1cd
52mm
122mm
196±6g
**These volume & tone settings are not approved to EN54-3.
Tel: (+86) 029 85387800 Fax: (+86) 029 8833295
24VDC, No Communication, No sounding/flashing
High Volume, 24VDC
Low Volume, 24VDC
Non-condensing
1m , High Volume, Tone 21 @24V(5.0mA)
1m , 90°,High Volume, Tone 21 @24V(5.0mA) **
1m , 90°,High Volume, Tone 13 @24V(6.0mA) **
1m , 90°,High Volume, Tone 12 @24V(5.7mA) **
1m , 90°,High Volume, Tone 19 @24V(5.5mA) **
1m , 90°,Low Volume, Tone 21 @24V(4.7mA) **
1m , 90°, Low Volume, Tone 13 @24V(5.0mA) **
1m , 90°,Low Volume, Tone 12 @24V(4.7mA) **
1m , 90°,Low Volume, Tone 19 @24V(4.7mA) **
See table 1: 'Sound setting ' for detailed tones
See table 2: 'Flash Pattern'
Strobe is not approved to EN54-23
When B501 mounting base enables tamper-resistant function, special
tools must be used to disassemble addressable base. Please refer to
below figure: use straight screwdriver to break specific position, then
insert the screwdriver and maintain in its position. Then you can
disassemble the Sounder base by turning anticlockwise
Figure 1
Figure 2
COMM-
DIP switch for
tone setting
1
Xi'an System Sensor Electronics Ltd.
28 Tuanjie South Road
Xi'an Hi-tech Development Zone
Note
*Approved to EN54-3
B501
Mounting Base
Base
Sounder&
Strobe
200 Series
Detector
COMM+
RA Remote
Annunciator
ONES
TENS
710075, China
9
A5665‐001
A5665‐002
I56-5923-000
