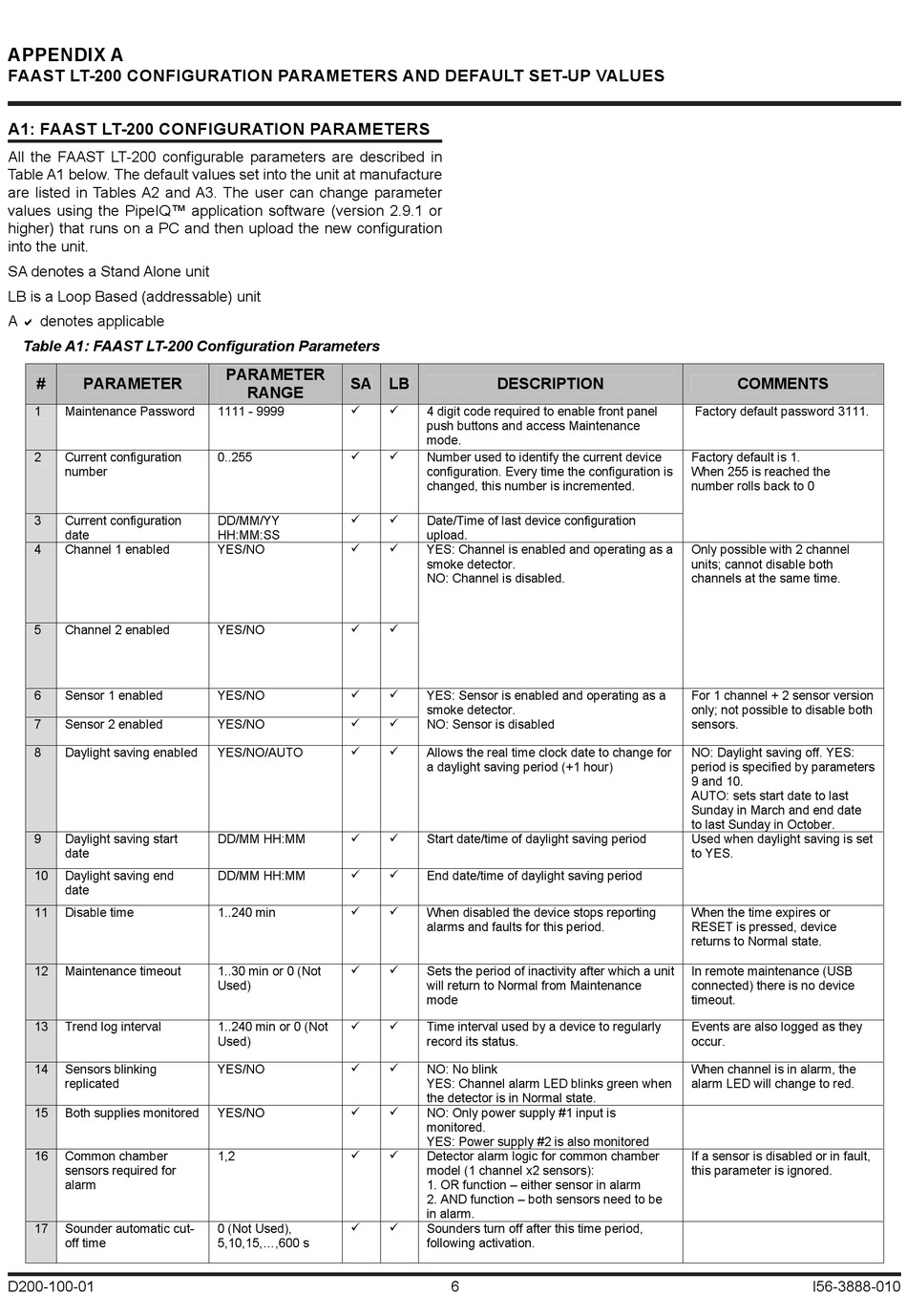

APPENDIX A
FAAST LT-200 CONFIGURATION PARAMETERS AND DEFAULT SET-UP VALUES
A1: FAAST LT-200 CONFIGURATION PARAMETERS
All the FAAST LT-200 configurable parameters are described in
Table A1 below . The default values set into the unit at manufacture
are listed in Tables A2 and A3. The user can change parameter
values using the PipeIQ™ application software (version 2 .9 .1 or
higher) that runs on a PC and then upload the new configuration
into the unit .
SA denotes a Stand Alone unit
LB is a Loop Based (addressable) unit
A a denotes applicable
Table A1: FAAST LT-200 Configuration Parameters
# PARAMETER
1 Maintenance Password
2 Current configuration
number
3 Current configuration
date
4 Channel 1 enabled
5 Channel 2 enabled
6 Sensor 1 enabled
7 Sensor 2 enabled
8 Daylight saving enabled
9 Daylight saving start
date
10 Daylight saving end
date
11 Disable time
12 Maintenance timeout
13 Trend log interval
14 Sensors blinking
replicated
15 Both supplies monitored
16 Common chamber
sensors required for
alarm
17 Sounder automatic cut-
off time
D200-100-01
PARAMETER
SA LB
RANGE
1111 - 9999
 
0 . .255
 
DD/MM/YY
 
HH:MM:SS
YES/NO
 
YES/NO
 
YES/NO
 
YES/NO
 
YES/NO/AUTO
 
DD/MM HH:MM
 
DD/MM HH:MM
 
1..240 min
 
1..30 min or 0 (Not
 
Used)
1..240 min or 0 (Not
 
Used)
YES/NO
 
YES/NO
 
1,2
 
0 (Not Used),
 
5,10,15,...,600 s
DESCRIPTION
4 digit code required to enable front panel
push buttons and access Maintenance
mode .
Number used to identify the current device
configuration . Every time the configuration is
changed, this number is incremented .
Date/Time of last device configuration
upload .
YES: Channel is enabled and operating as a
smoke detector .
NO: Channel is disabled .
YES: Sensor is enabled and operating as a
smoke detector .
NO: Sensor is disabled
Allows the real time clock date to change for
a daylight saving period (+1 hour)
Start date/time of daylight saving period
End date/time of daylight saving period
When disabled the device stops reporting
alarms and faults for this period .
Sets the period of inactivity after which a unit
will return to Normal from Maintenance
mode
Time interval used by a device to regularly
record its status .
NO: No blink
YES: Channel alarm LED blinks green when
the detector is in Normal state .
NO: Only power supply #1 input is
monitored .
YES: Power supply #2 is also monitored
Detector alarm logic for common chamber
model (1 channel x2 sensors):
1 . OR function – either sensor in alarm
2 . AND function – both sensors need to be
in alarm .
Sounders turn off after this time period,
following activation .
6
COMMENTS
Factory default password 3111.
Factory default is 1 .
When 255 is reached the
number rolls back to 0
Only possible with 2 channel
units; cannot disable both
channels at the same time .
For 1 channel + 2 sensor version
only; not possible to disable both
sensors .
NO: Daylight saving off. YES:
period is specified by parameters
9 and 10 .
AUTO: sets start date to last
Sunday in March and end date
to last Sunday in October .
Used when daylight saving is set
to YES.
When the time expires or
RESET is pressed, device
returns to Normal state .
In remote maintenance (USB
connected) there is no device
timeout .
Events are also logged as they
occur .
When channel is in alarm, the
alarm LED will change to red .
If a sensor is disabled or in fault,
this parameter is ignored .
I56-3888-010
