Front Panel - RGBlink mini-mx Quick Start Manual

❶
❷
❸
❹
❺
❶ Audio Volume Controls
❷ Adjuster
❸ Layer Selection Buttons
❹ Channel Fader
www.rgblink.com

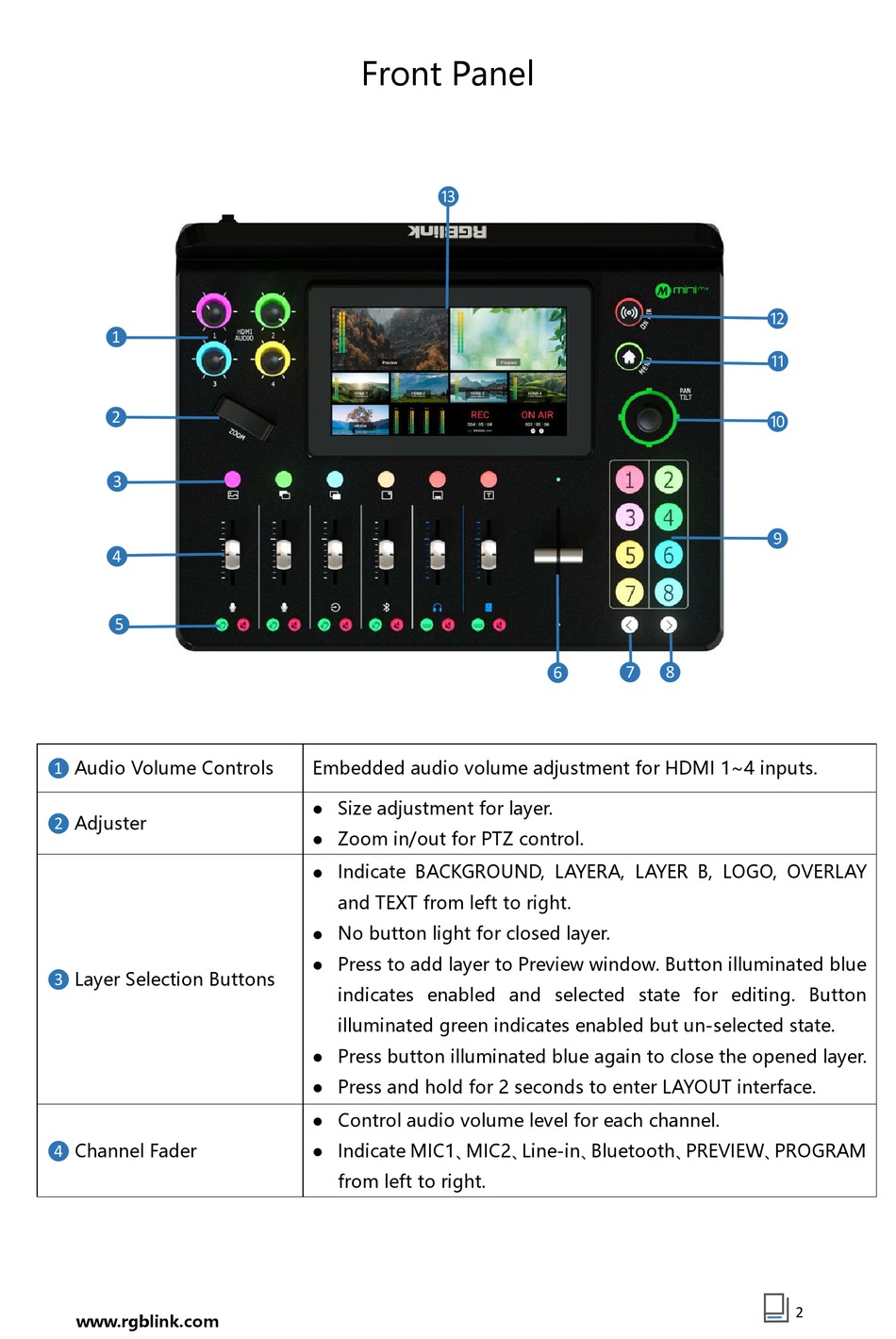

Front Panel

⓭
Embedded audio volume adjustment for HDMI 1~4 inputs.
Size adjustment for layer.

Zoom in/out for PTZ control.

Indicate BACKGROUND, LAYERA, LAYER B, LOGO, OVERLAY

and TEXT from left to right.
No button light for closed layer.

Press to add layer to Preview window. Button illuminated blue

indicates enabled and selected state for editing. Button
illuminated green indicates enabled but un-selected state.
Press button illuminated blue again to close the opened layer.

Press and hold for 2 seconds to enter LAYOUT interface.

Control audio volume level for each channel.

Indicate MIC1、 MIC2、 Line-in、 Bluetooth、 PREVIEW、 PROGRAM

from left to right.
❼ ❽
❻
⓬
⓫
❿
❾
